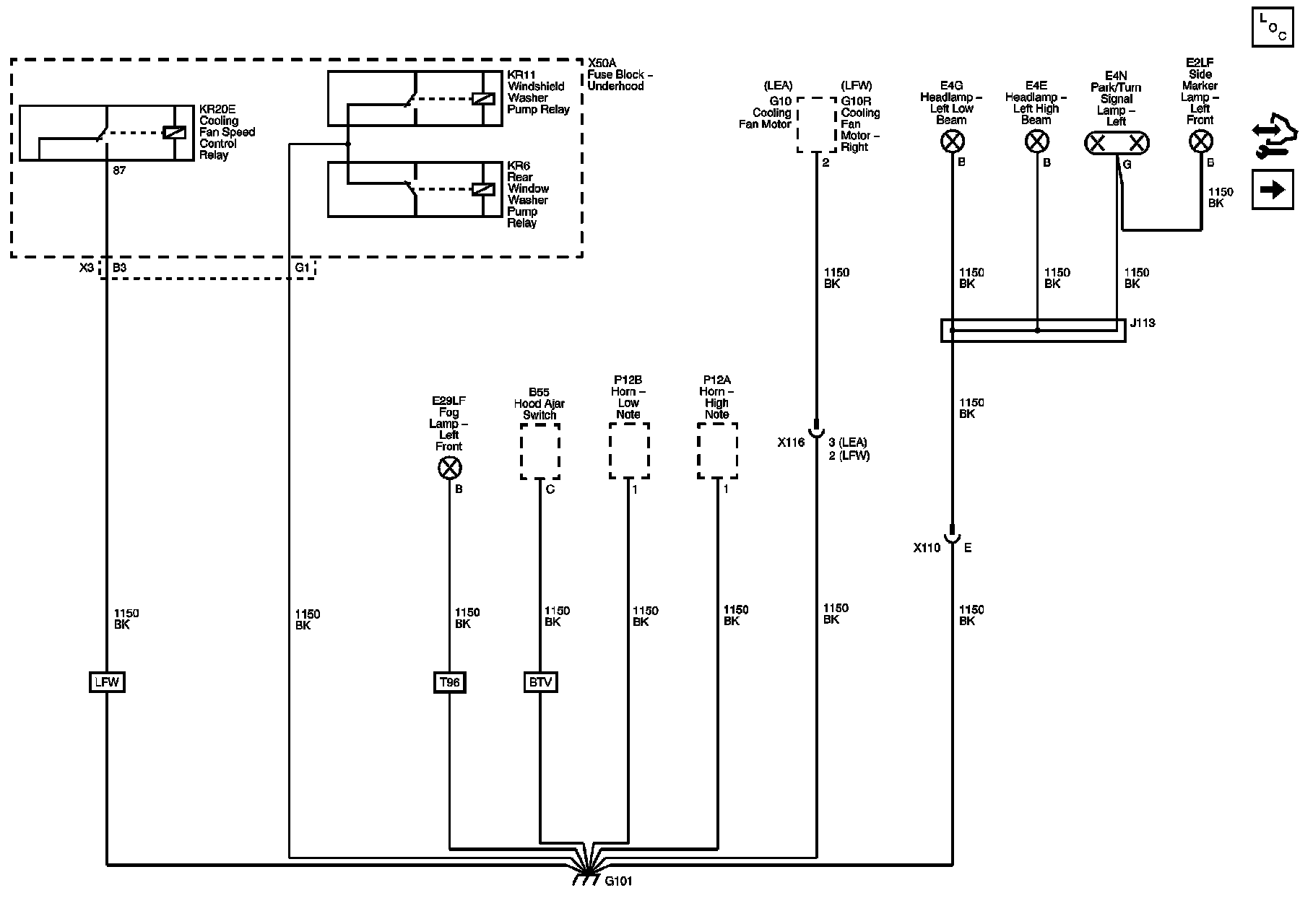

G101

Ground Distribution Schematics

G101

Master Electrical Component List
Control Module References
G102, G103, G104, and G105
Electrical Center Identification Views
