Power Steering Control Module X2

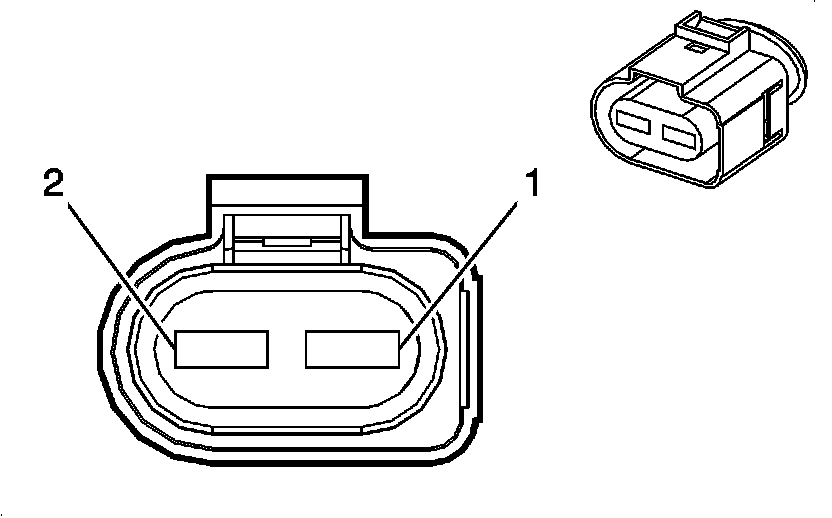

Component Connector End Views

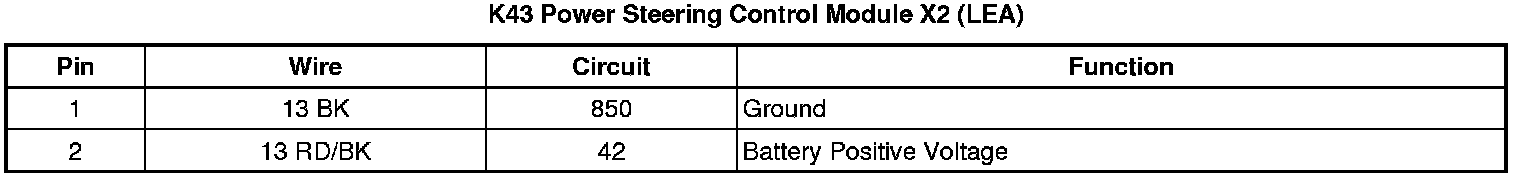

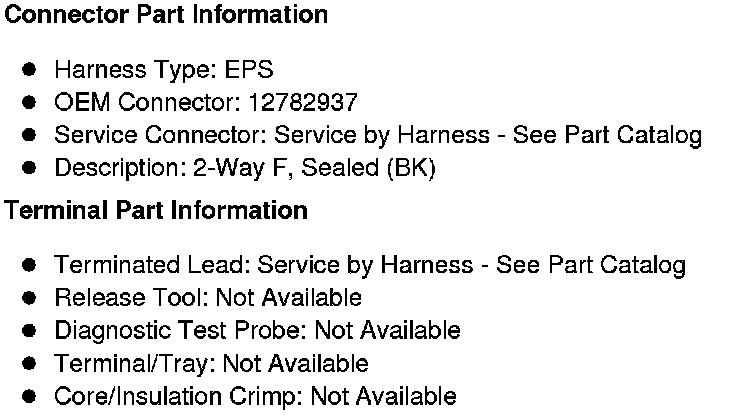

K43 Power Steering Control Module X2 (LEA)
