Power Trunk / Liftgate Control Module




Component Connector End Views

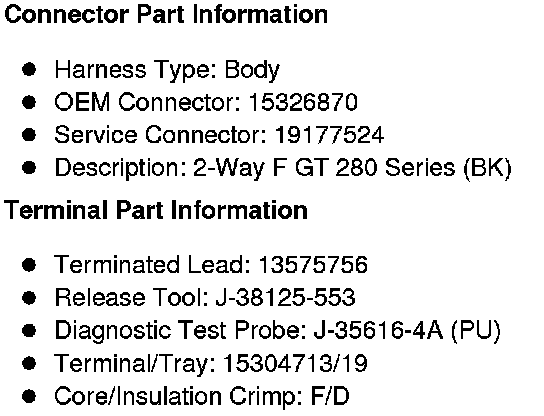

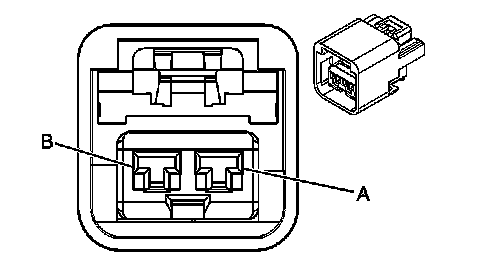

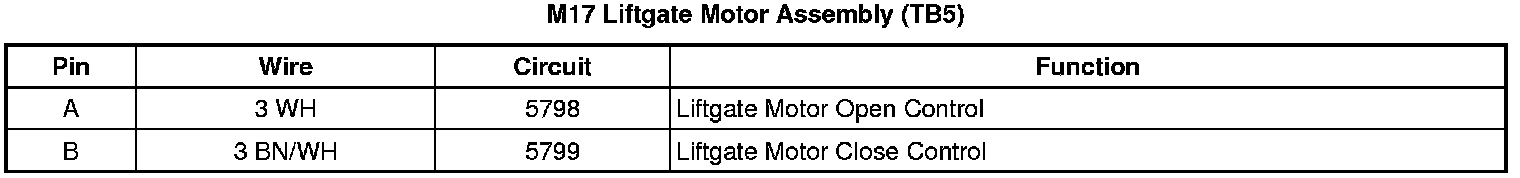

M17 Liftgate Motor Assembly (TB5)
