Fuel Pump and Level Sensor Assembly- Primary

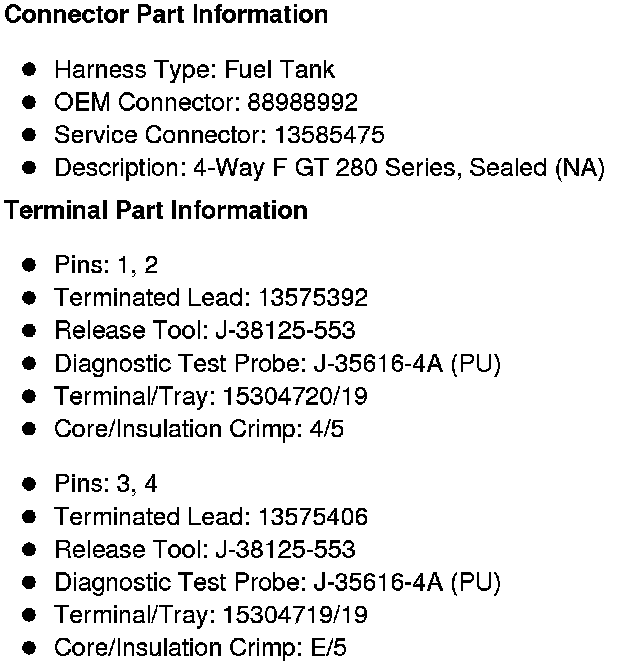

Component Connector End Views

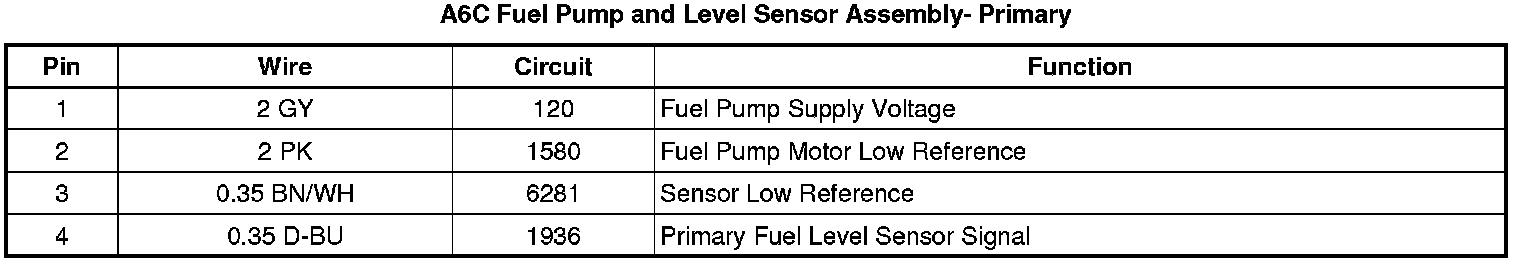

A6C Fuel Pump and Level Sensor Assembly- Primary
