Auxiliary Audio Input with Memory Card Receptacle X1 (MCR)
Auxiliary Audio Input with Memory Card Receptacle X1 (MCR)
Component Connector End Views

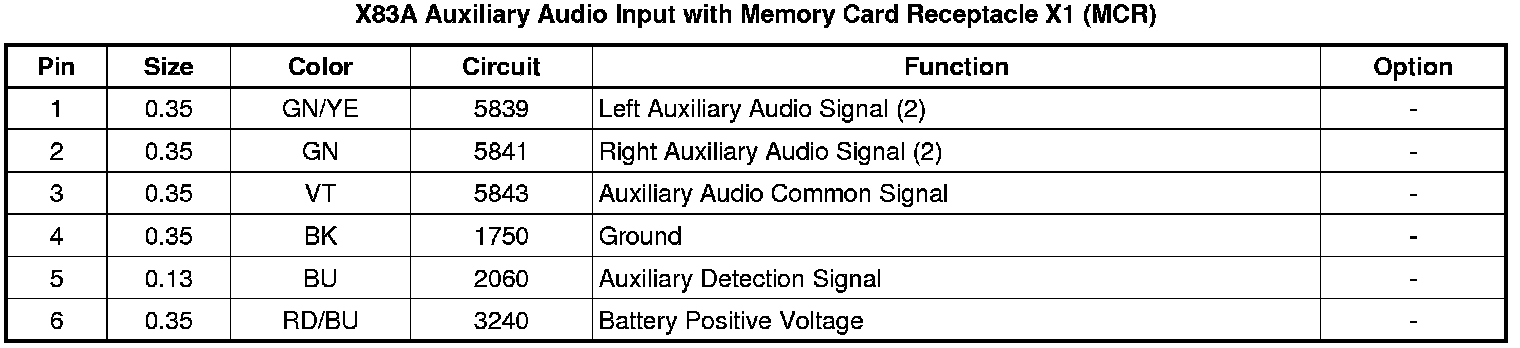

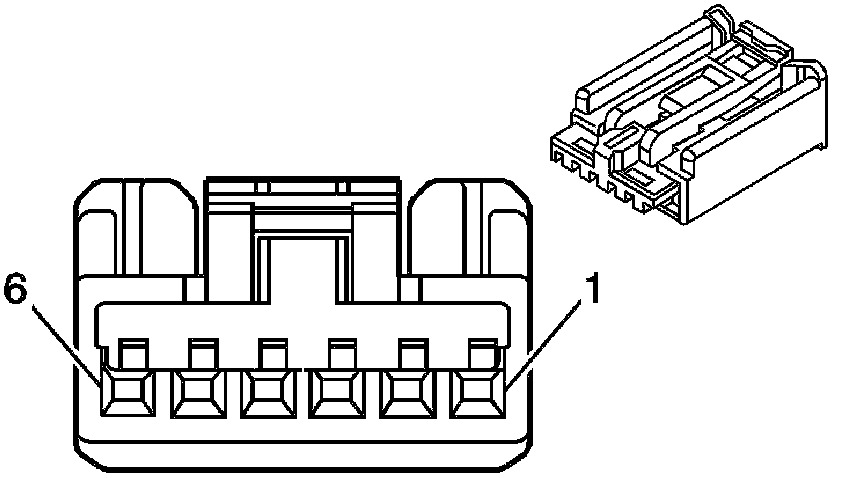

X83A Auxiliary Audio Input with Memory Card Receptacle X1 (MCR)
