Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Auxiliary Input / Output Jack, Entertainment System
>>
Auxiliary Audio Input X1 (without MCR)
Auxiliary Audio Input X1 (without MCR)
Component Connector End Views

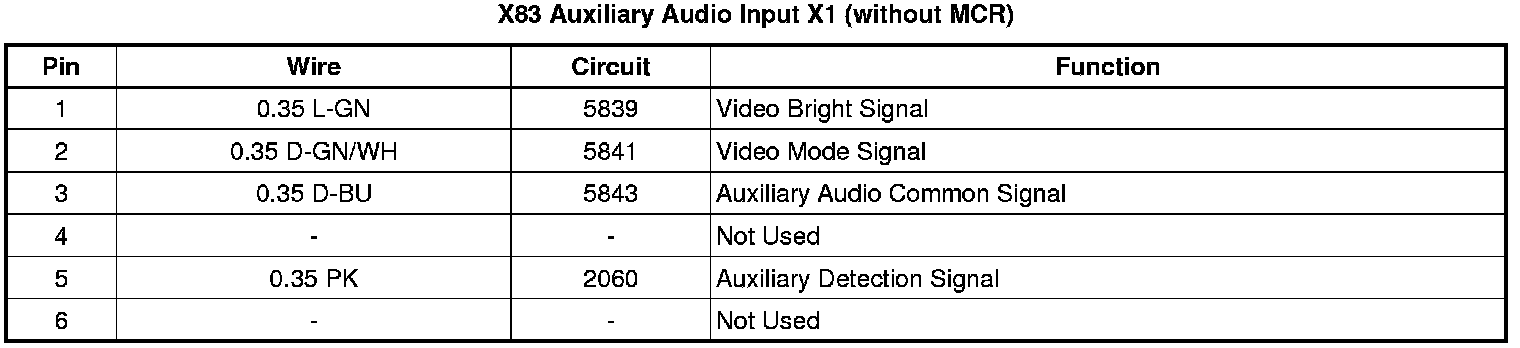

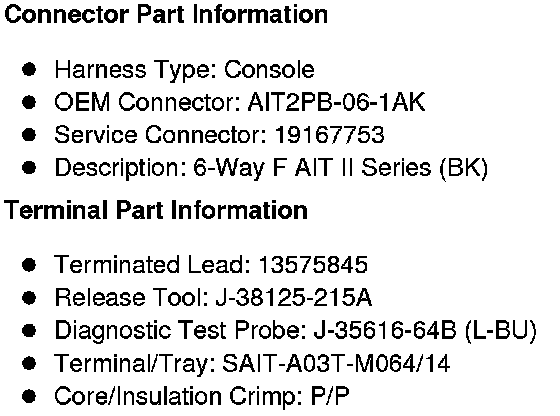

X83 Auxiliary Audio Input X1 (without MCR)
