Dome/Reading Lamps - Middle
Dome/Reading Lamps - Middle
Component Connector End Views

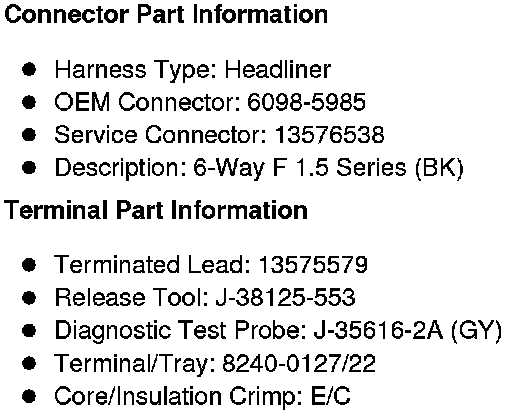

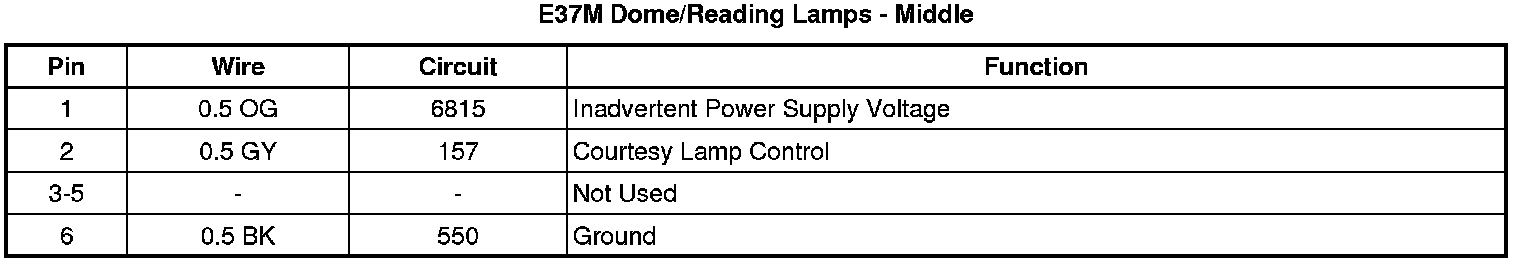

E37M Dome/Reading Lamps - Middle
