Dome/Reading Lamps - Front Overhead Console Right

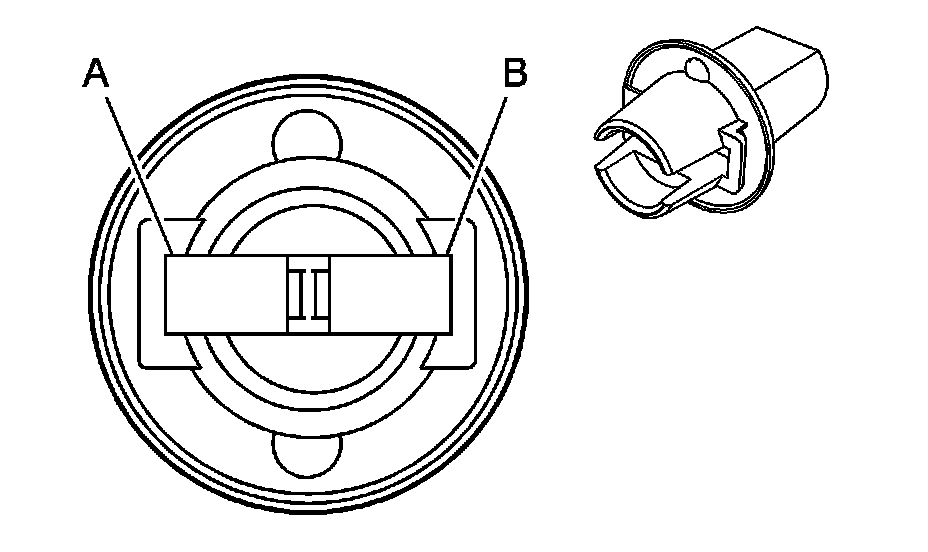

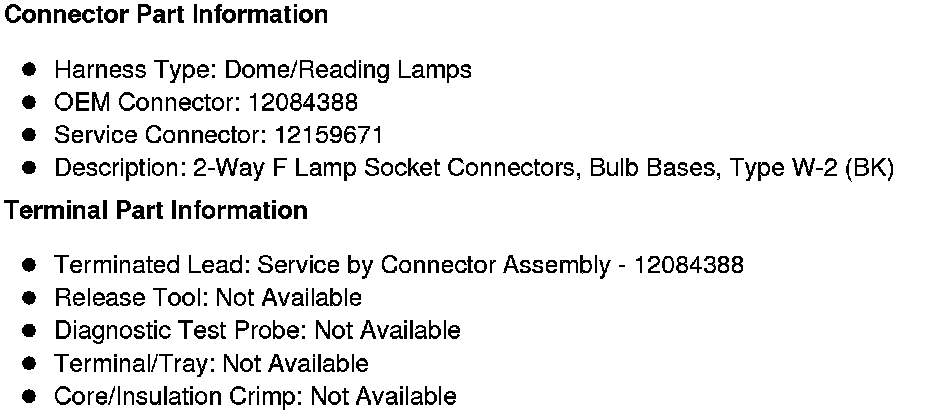

Component Connector End Views

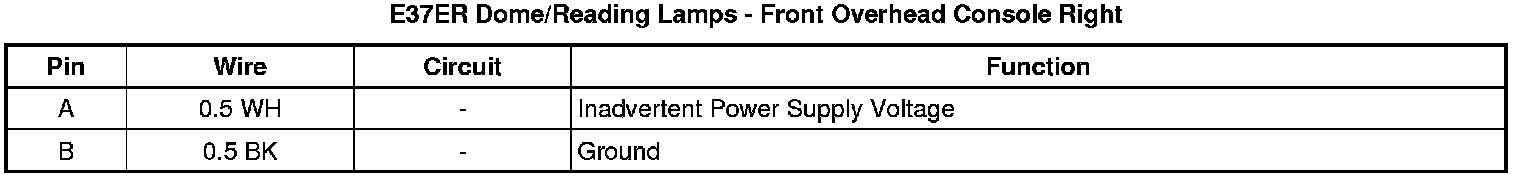

E37ER Dome/Reading Lamps - Front Overhead Console Right
