Chevy Truck
>>
2012
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X300 - X399
>>
X308
X308
Inline Harness Connector End Views

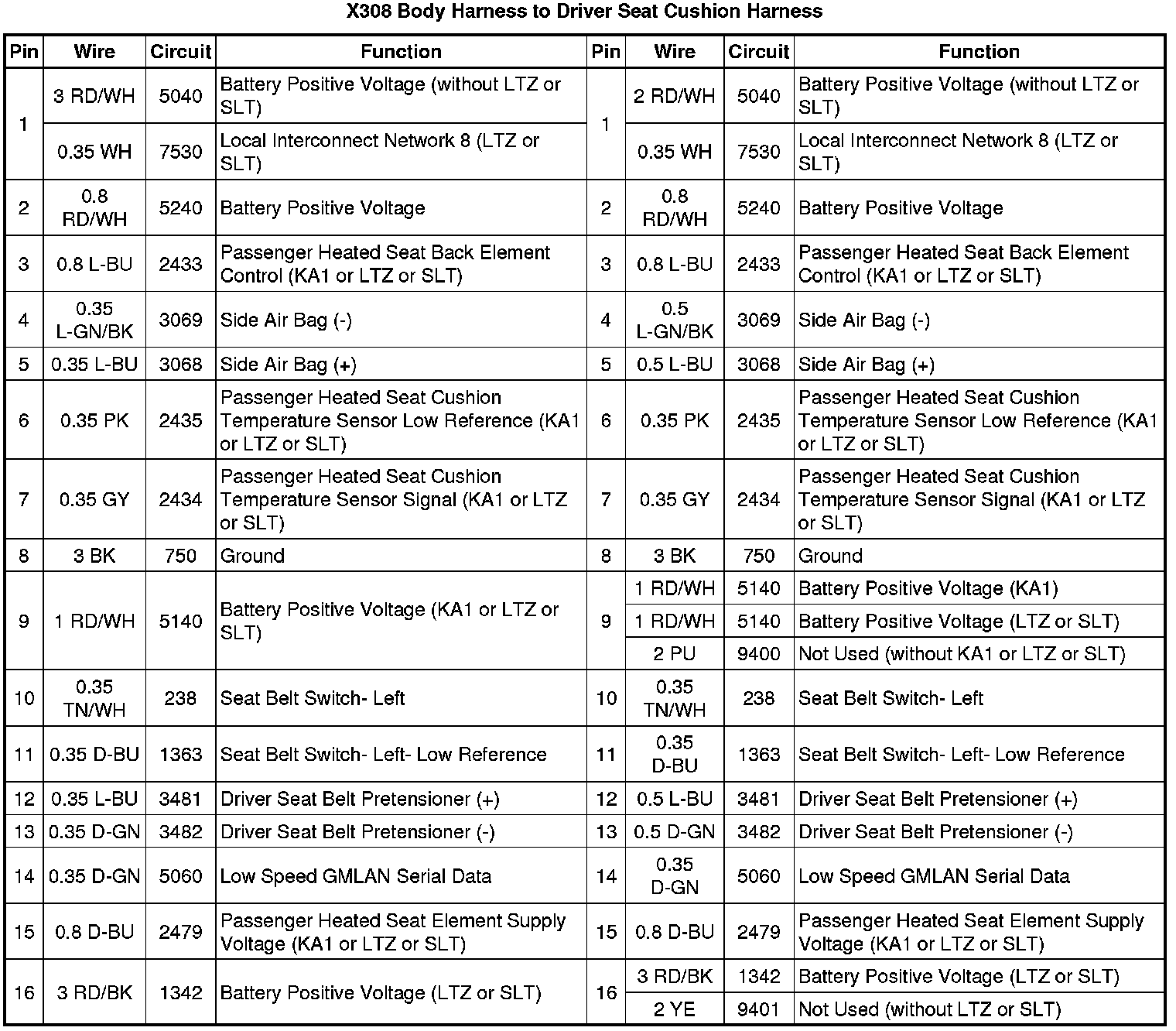

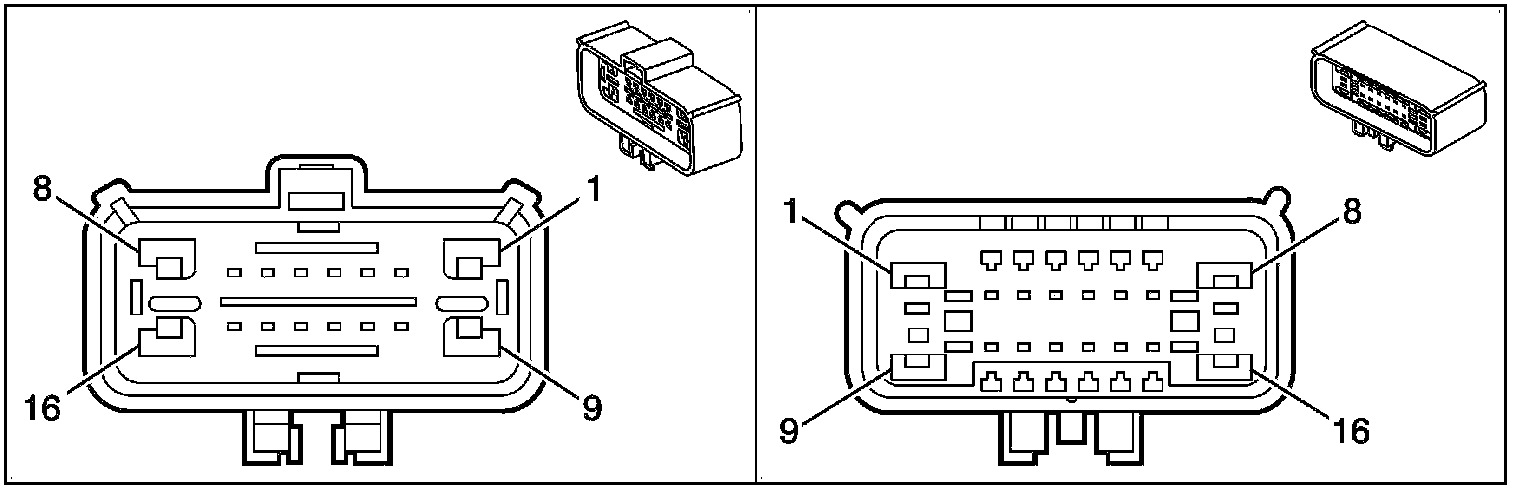

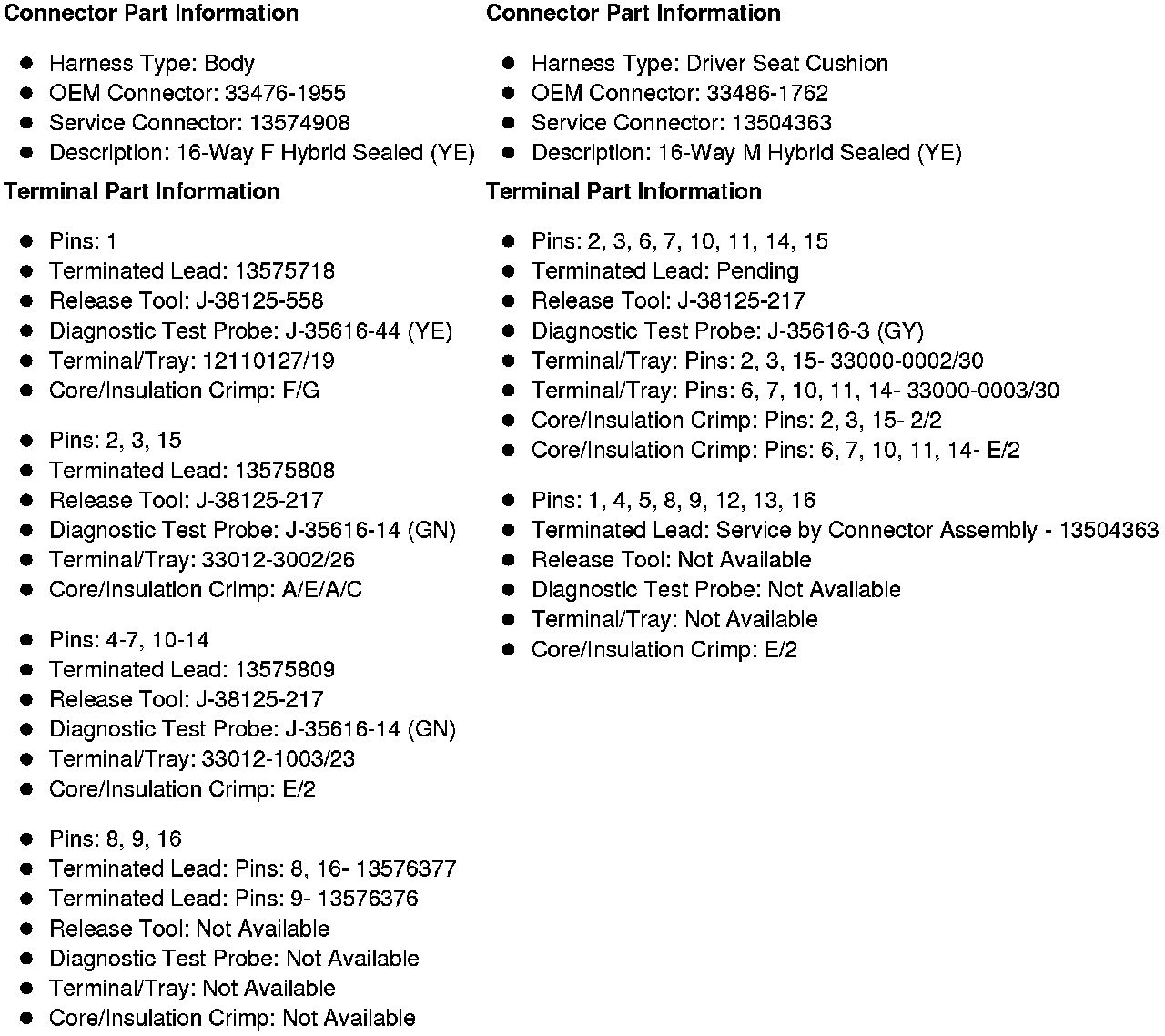

X308 Body Harness to Driver
Seat Cushion
Harness
