Frontview Camera Module (UEU/UFL)




Component Connector End Views

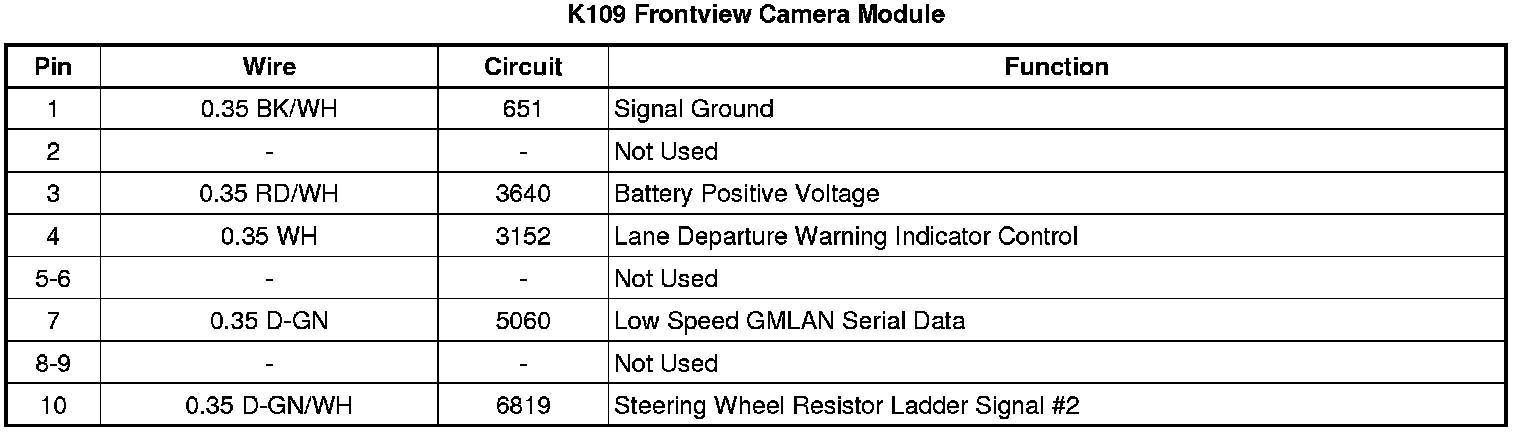

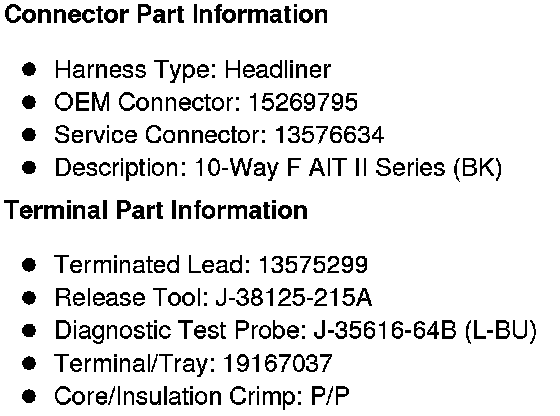

K109 Frontview Camera Module (UEU/UFL)
