Inside Rearview Mirror (UVC without UYS or UYX)
Inside Rearview Mirror (UVC without UYS or UYX)

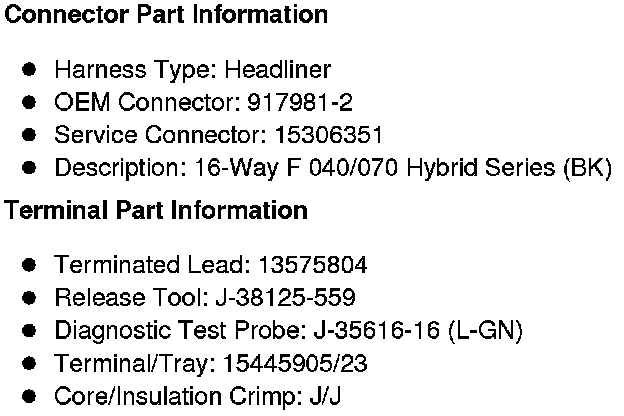

Component Connector End Views

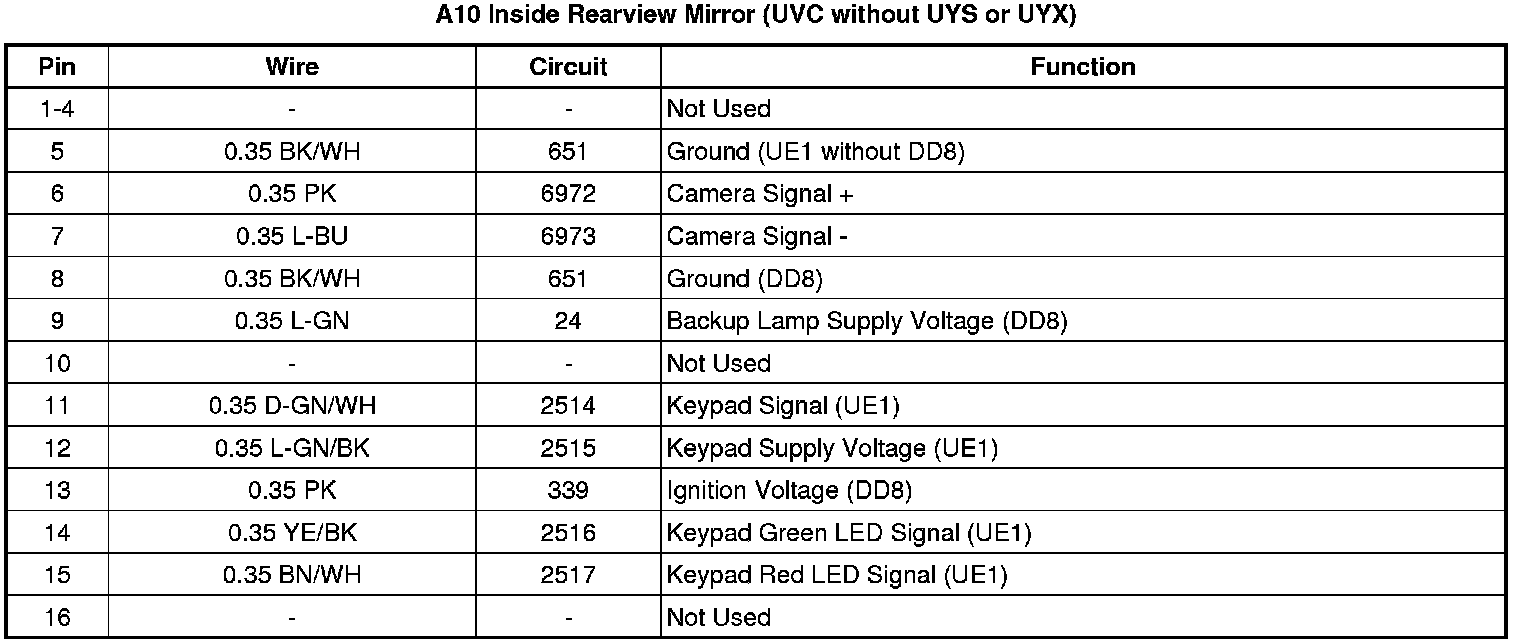

A10 Inside Rearview Mirror (UVC without UYS or UYX)
