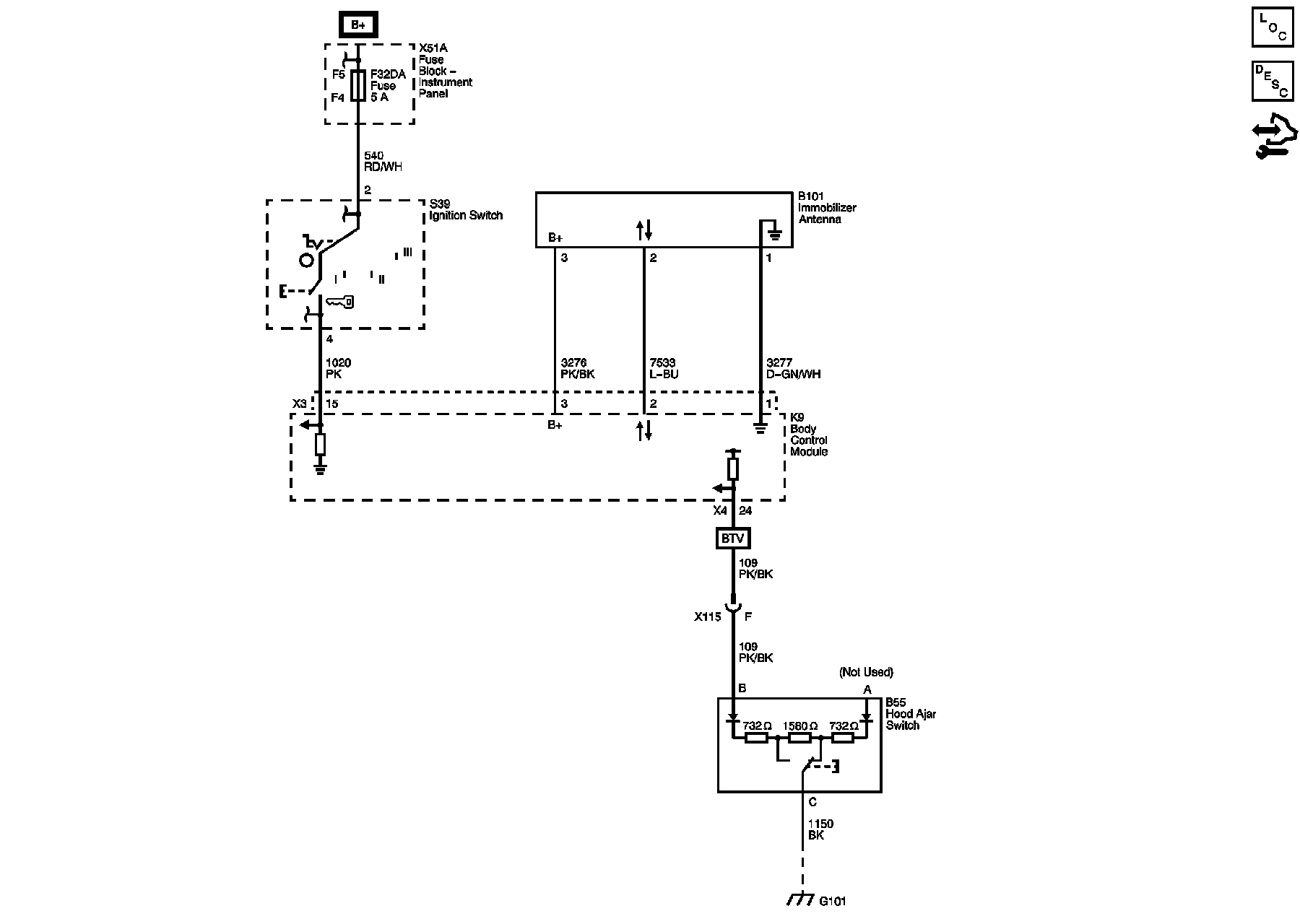

Immobilizer Schematics




Immobilizer Schematics

Immobilizer





Master Electrical Component List
Immobilizer Description and Operation
Control Module References
F11UA, F29DA, F30DA, F31DA, F32DA, F33DA, F34DA, F35DA, F36DA, F37DA, and F38DA Fuses
G101
