B2740
DTC B2740
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC B2740 00
- Front Fog Lamp Switch Circuit Malfunction

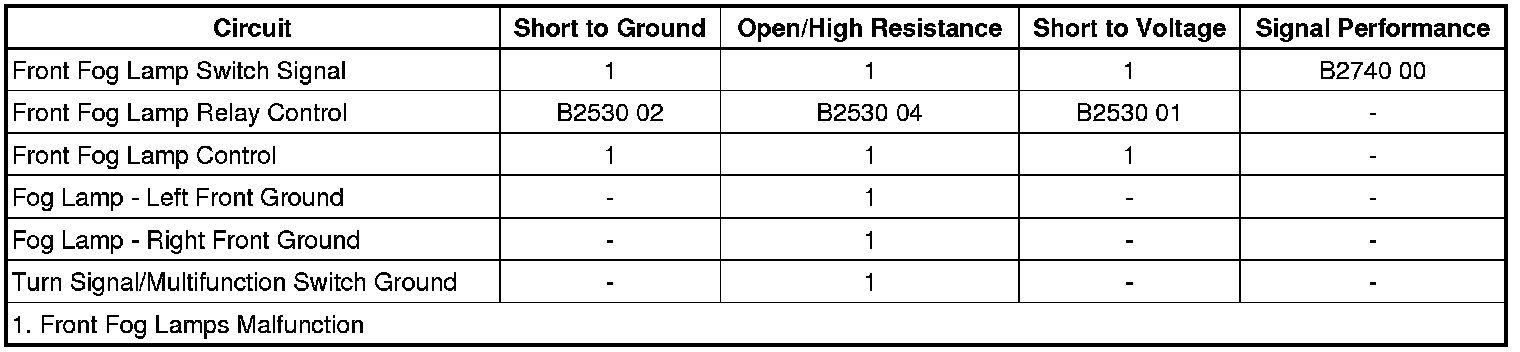

Diagnostic Fault Information
Circuit/System Description
The front fog lamp relay is supplied with battery voltage at all times. The front fog lamp switch signal circuit is grounded momentarily by pressing the front fog lamp switch. The body control module (BCM) energizes the front fog lamp relay by applying ground to the front fog lamp relay control circuit. When the front fog lamp relay is energized, the relay switch contacts close and battery voltage is applied through the front fog lamp fuse to the front fog lamp supply voltage circuit which illuminates the front fog lamps.
Conditions for Running the DTC
* Battery voltage must be between 9-16 V.
* Front fog lamps ON.
Conditions for Setting the DTC
The front fog lamp switch input is Active for longer than 60 seconds.
Actions Taken When the DTC Sets
The front fog lamps are inoperative.
Conditions for Clearing the DTC
* The condition responsible for setting the DTC no longer exists.
* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.
Reference Information
Schematic Reference
Fog Lights Schematics Fog Lights Schematics
Connector End View Reference
Component Connector End Views Sunshade - Left Front
Description and Operation
Exterior Lighting Systems Description and Operation Exterior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Programming and Relearning for scan tool information
Circuit/System Testing
1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S78 turn signal/multifunction switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the ground circuit terminal 6 and ground.
• If 15 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms
3. Ignition ON.
4. Verify the scan tool Front Fog Lamps Switch parameter is Inactive.
• If not Inactive
1. Ignition OFF, disconnect the X1 harness connector at the K9 body control module.
2. Test for infinite resistance between the signal circuit terminal 1 and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 body control module.
• If Inactive
5. Install a 3 A fused jumper wire between the signal circuit terminal 1 and ground.
6. Verify the scan tool Front Fog Lamps Switch parameter is Active.
• If not Active
1. Ignition OFF, disconnect the X1 harness connector at the K9 body control module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 1 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 body control module.
• If Active
7. Test or replace the S78 turn signal/multifunction switch.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Turn Signal Multifunction Switch Replacement Turn Signal Multifunction Switch Replacement
* Control Module References Programming and Relearning for BCM replacement, programming, and setup
