B2625

DTC B2625

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2625 02

-
Display Dimming Pulse Width Modulation Output Circuit Short to Ground

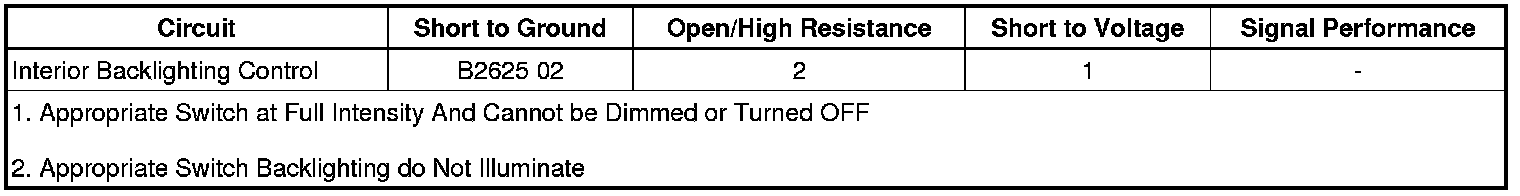

Diagnostic Fault Information






Circuit/System Description

The body control module (BCM) supplies a reference voltage to the backlight dimmer switch. When the backlight dimmer switch is placed in a desired brightness position, reference voltage is applied through the backlight dimmer switch rheostat to the BCM. The BCM interprets this voltage signal, then applies a pulse width modulated (PWM) voltage through the backlight lamp control circuit, and the LED dimming control circuit illuminating the LEDs and the components.

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

The BCM detects a short to ground on the LED dimming control circuit.

Action Taken When the DTC Sets

The BCM will not attempt to illuminate the LED indicator lamps when a short circuit to ground is detected.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction ignition cycles have occurred.

Reference Information

Schematic Reference

Interior Lights Dimming Schematics Interior Lights Dimming Schematics

Connector End View Reference

Component Connector End Views Sunshade - Left Front

Description and Operation

Interior Lighting Systems Description and Operation Interior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Ignition ON, switch ON exterior lighting, vary the interior backlight from dim to full bright by using the dimmer switch. The LEDs should dim and then become full bright.

Circuit/System Testing

Note:
Each backlighted component may need to be disconnected to isolate a short to voltage or short to ground. Use the schematic to identify the following:

* Backlighted components the vehicle is equipped with.

* Component locations on the backlighting dimming control circuit

* Each component's control and ground circuit terminals

1. Ignition OFF, disconnect the harness connector at any component with inoperative backlighting.

2. Ignition OFF, scan tool disconnected, interior lamps OFF, doors CLOSED, test for less than 5 ohms between the ground circuit and ground.

• If greater than the specified value, test the ground circuit for an open/high resistance.

3. Connect a test lamp between the control circuit and ground.

4. Command the Incandescent Dimming ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the K9 BCM.

5. If all circuits test normal, test or replace the component with the inoperative backlighting.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

Control Module References Programming and Relearning for BCM replacement, setup, and programming
