B258A

DTC B258A

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B258A 02

-
Low Beam Control Circuit Short to Ground

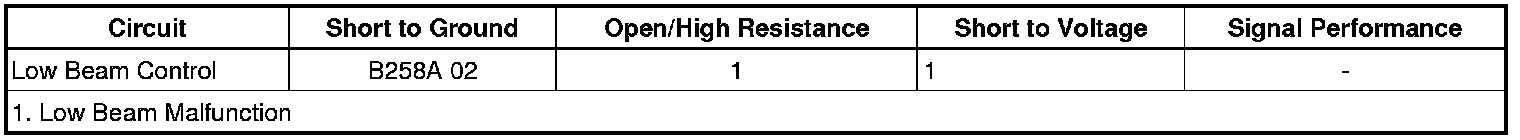

Diagnostic Fault Information






Circuit/System Description

The headlamp switch signal circuit is grounded by turning the headlamp switch. The body control module (BCM) energizes the headlamp low beams by applying battery voltage.

Conditions for Running the DTC

The headlamp switch in OFF or AUTO position.

Conditions for Setting the DTC

The BCM detects a short to ground on the control circuit.

Action Taken When the DTC Sets

Headlamp low beam malfunction.

Conditions for Clearing the DTC

The condition for setting the DTC is no longer present.

Reference Information

Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics

Connector End View Reference

Component Connector End Views Sunshade - Left Front

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Ignition ON, command the appropriate Headlamp Low Beam On and OFF with a scan tool. The low beam headlamp should turn ON and OFF when changing between the commanded states.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the appropriate E4 low beam headlamp.

2. Test for less than 5 ohms between the ground circuit terminal B and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

3. Connect a test lamp between the control circuit terminal A and the ground circuit terminal B.

4. Command Headlamp Low Beam ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the K9 BCM.

• If the test lamp is always OFF, test the control circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K9 BCM.

5. If all circuits test normal, test or replace the E4 low beam headlamp.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Headlamp Replacement (Equinox) Removal and ReplacementHeadlamp Replacement (Terrain) Removal and Replacement

* Control Module References Programming and Relearning for BCM replacement, setup and programming
