54. Control Valve Body Cleaning and Inspection (Gen 1)

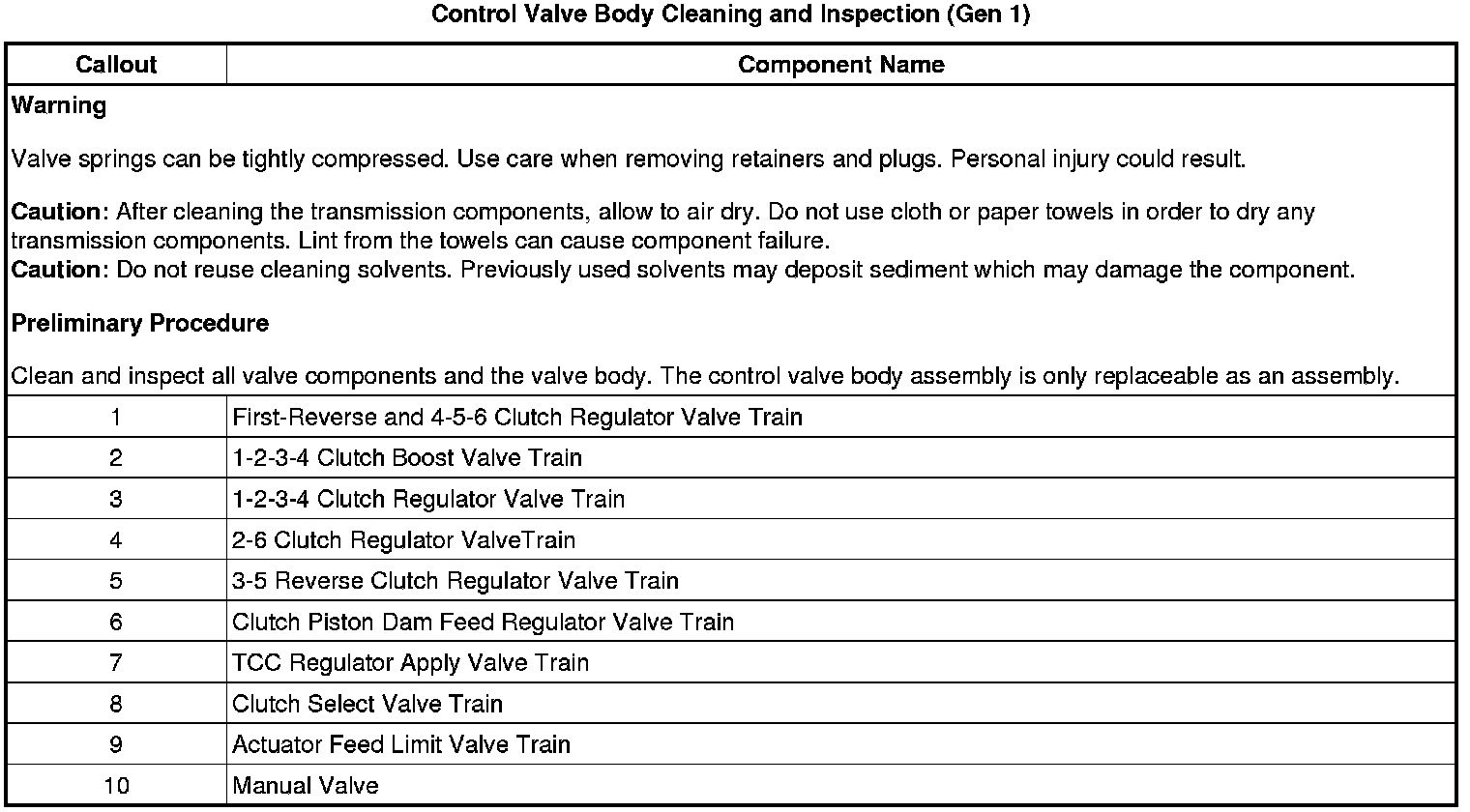

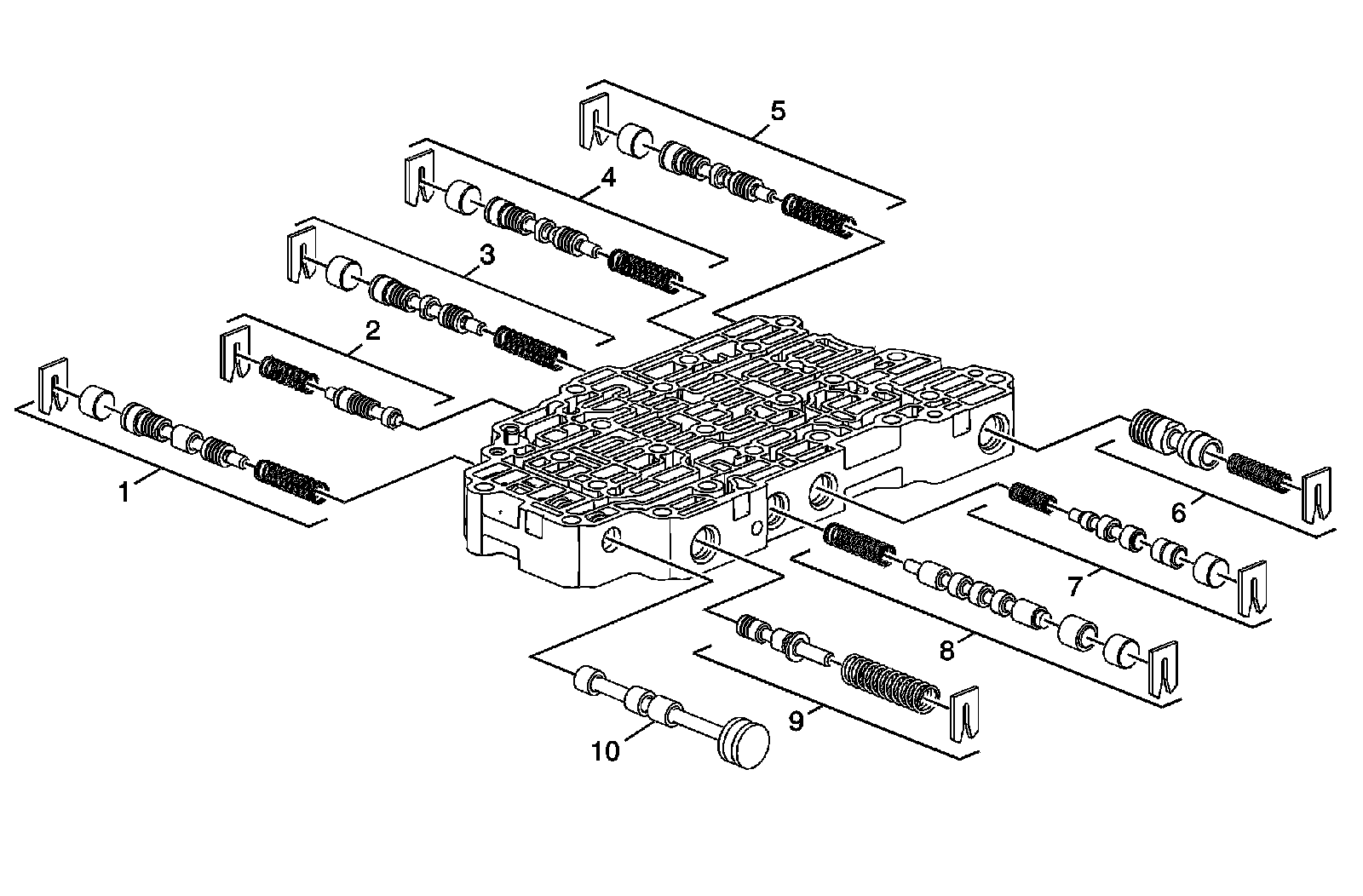

Control Valve Body Cleaning and Inspection (Gen 1)
