X605




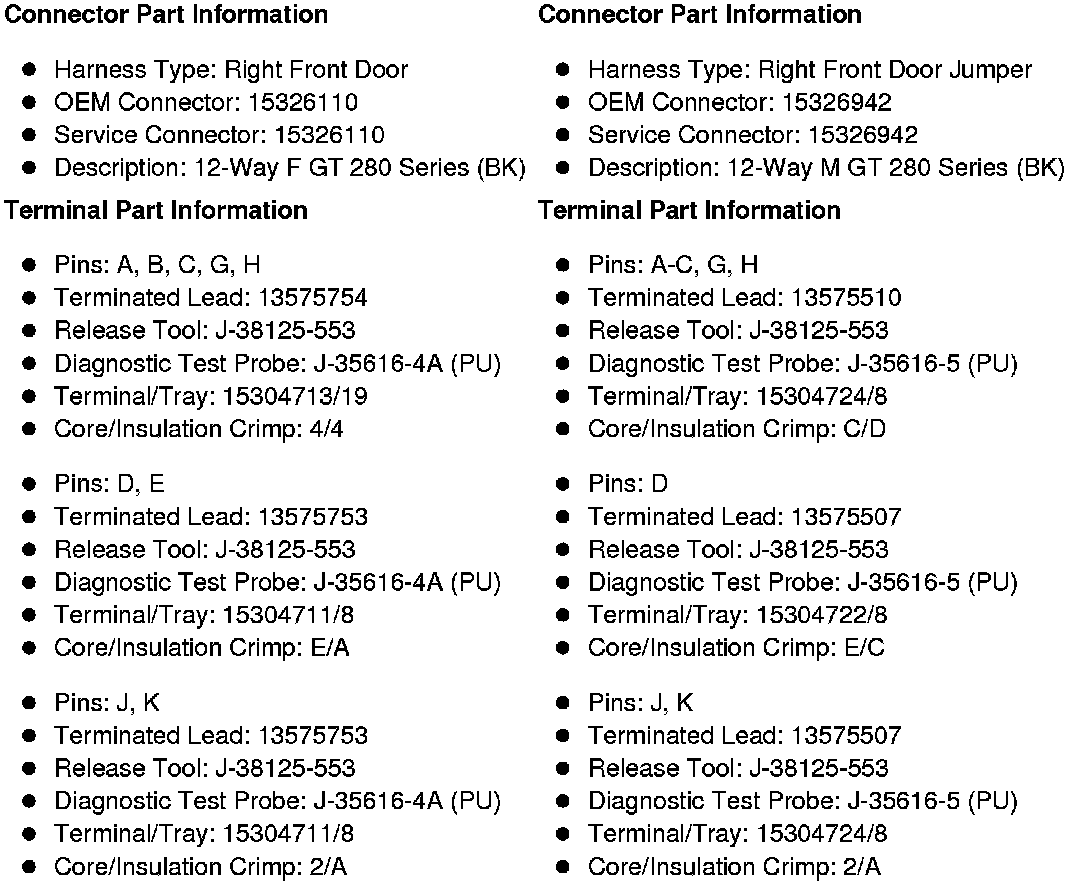

Inline Harness Connector End Views

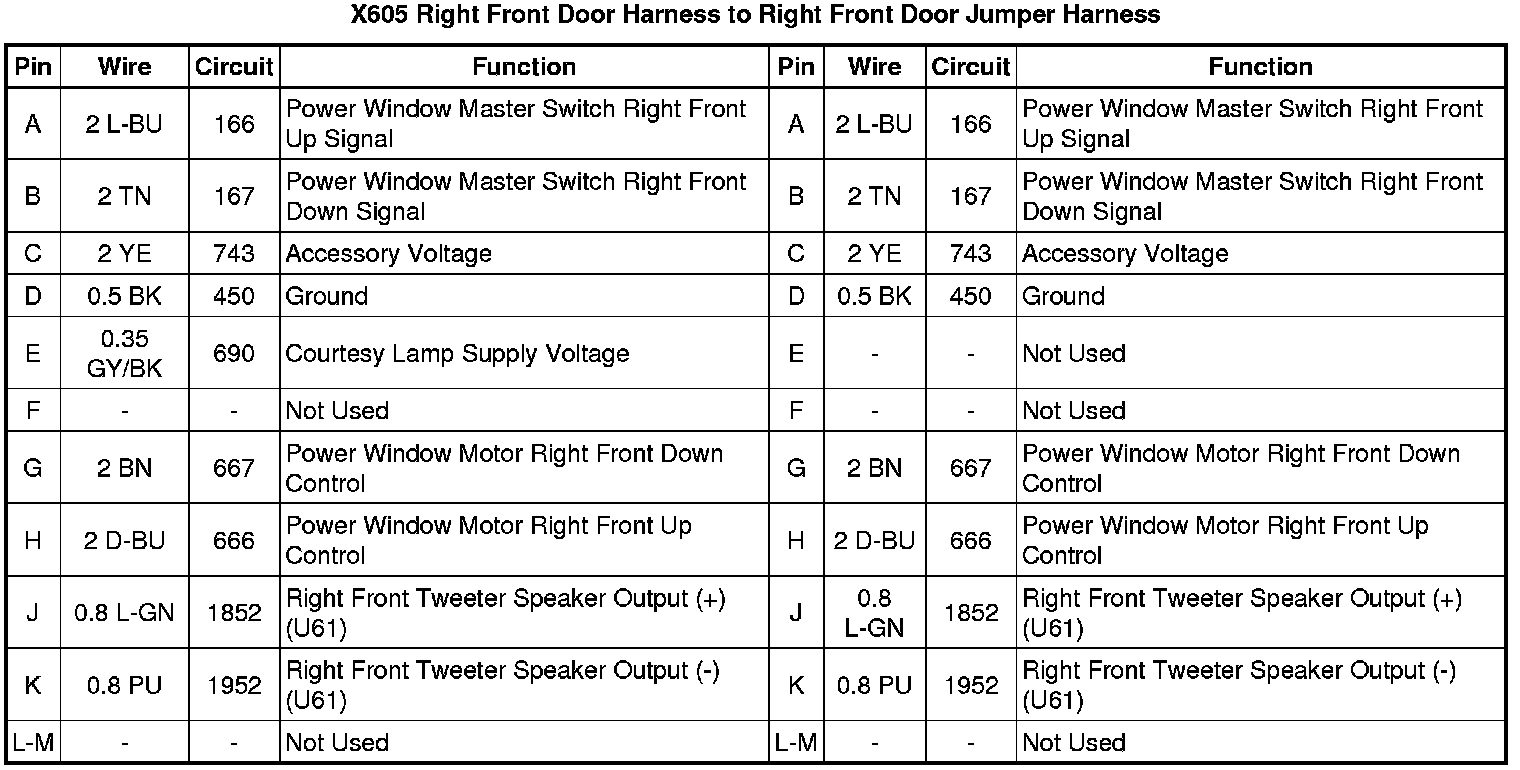

X605 Right Front Door Harness to Right Front Door Jumper Harness
