X507




Inline Harness Connector End Views

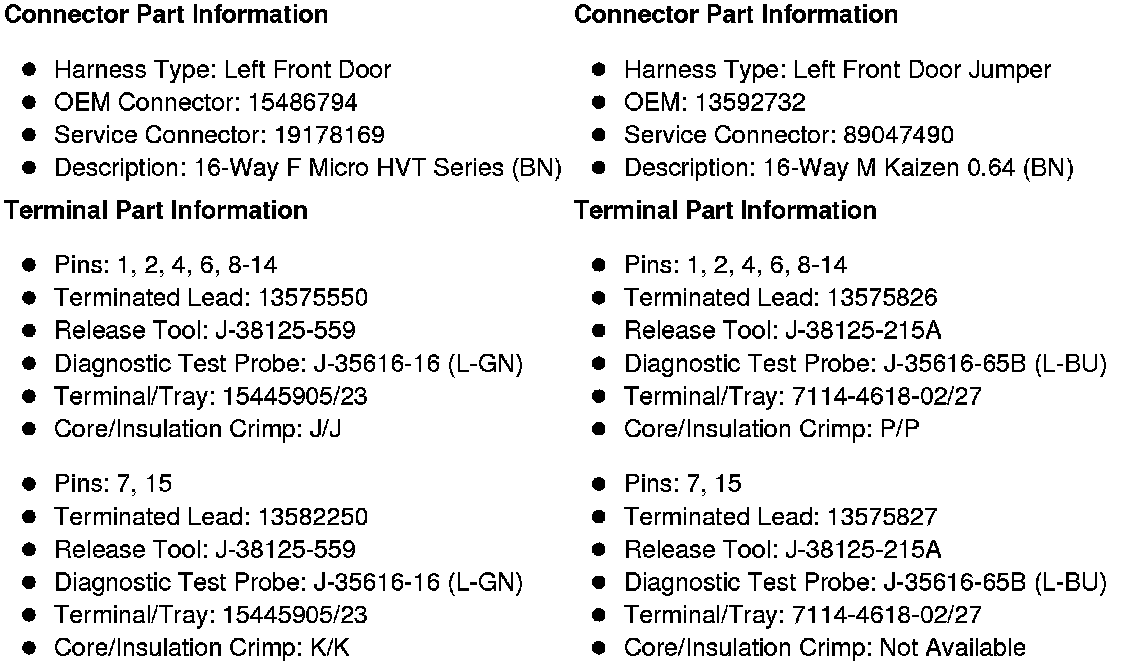

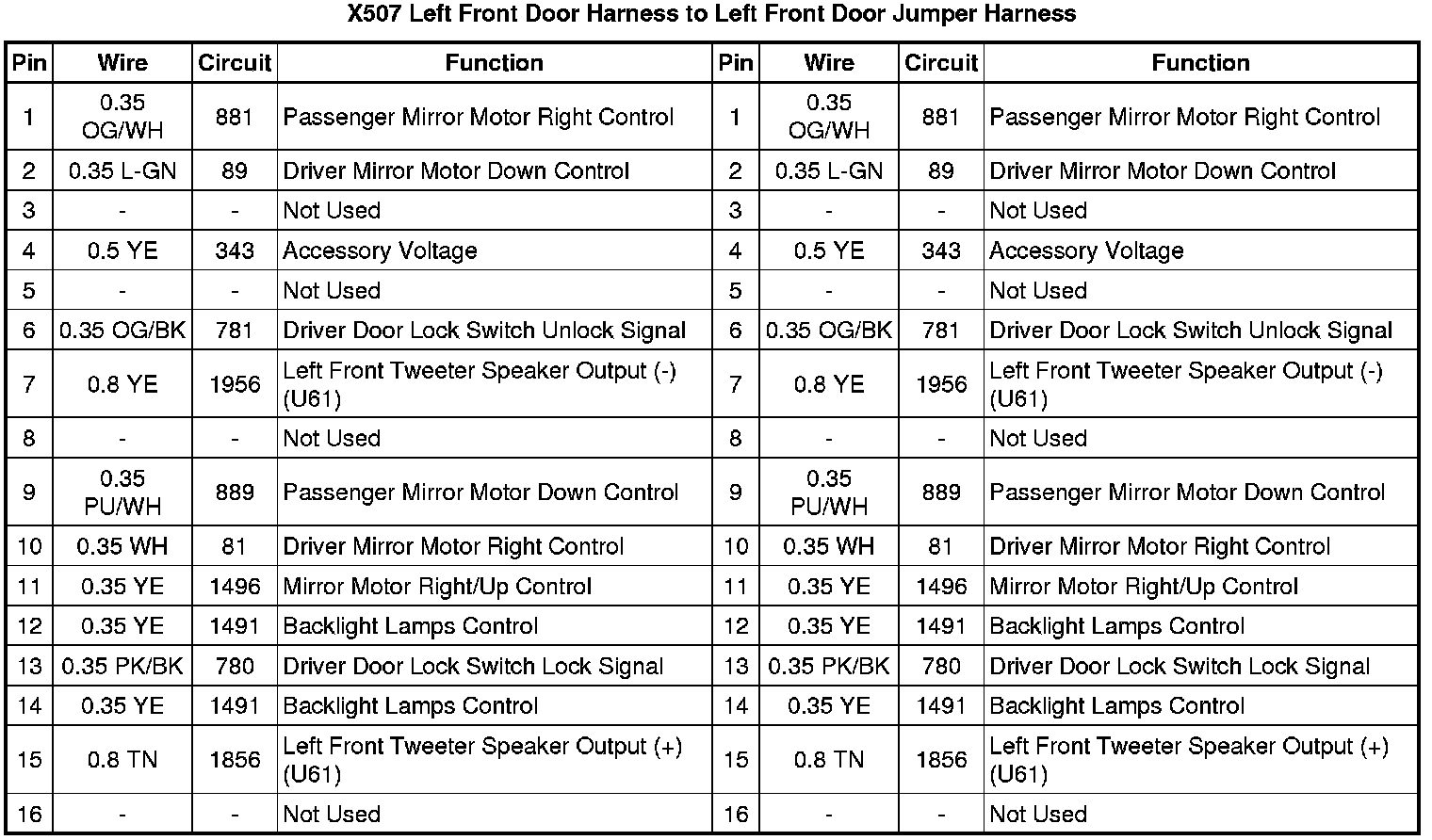

X507 Left Front Door Harness to Left Front Door Jumper Harness
