X505

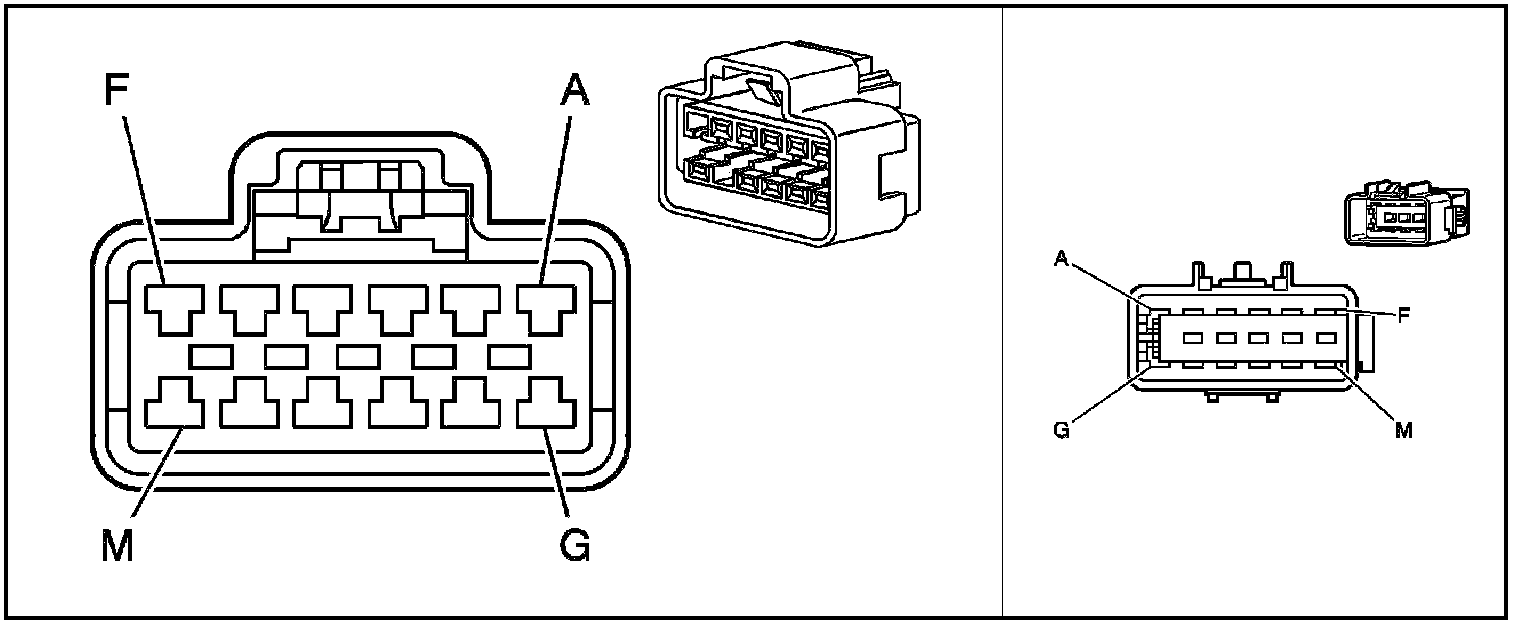

Inline Harness Connector End Views

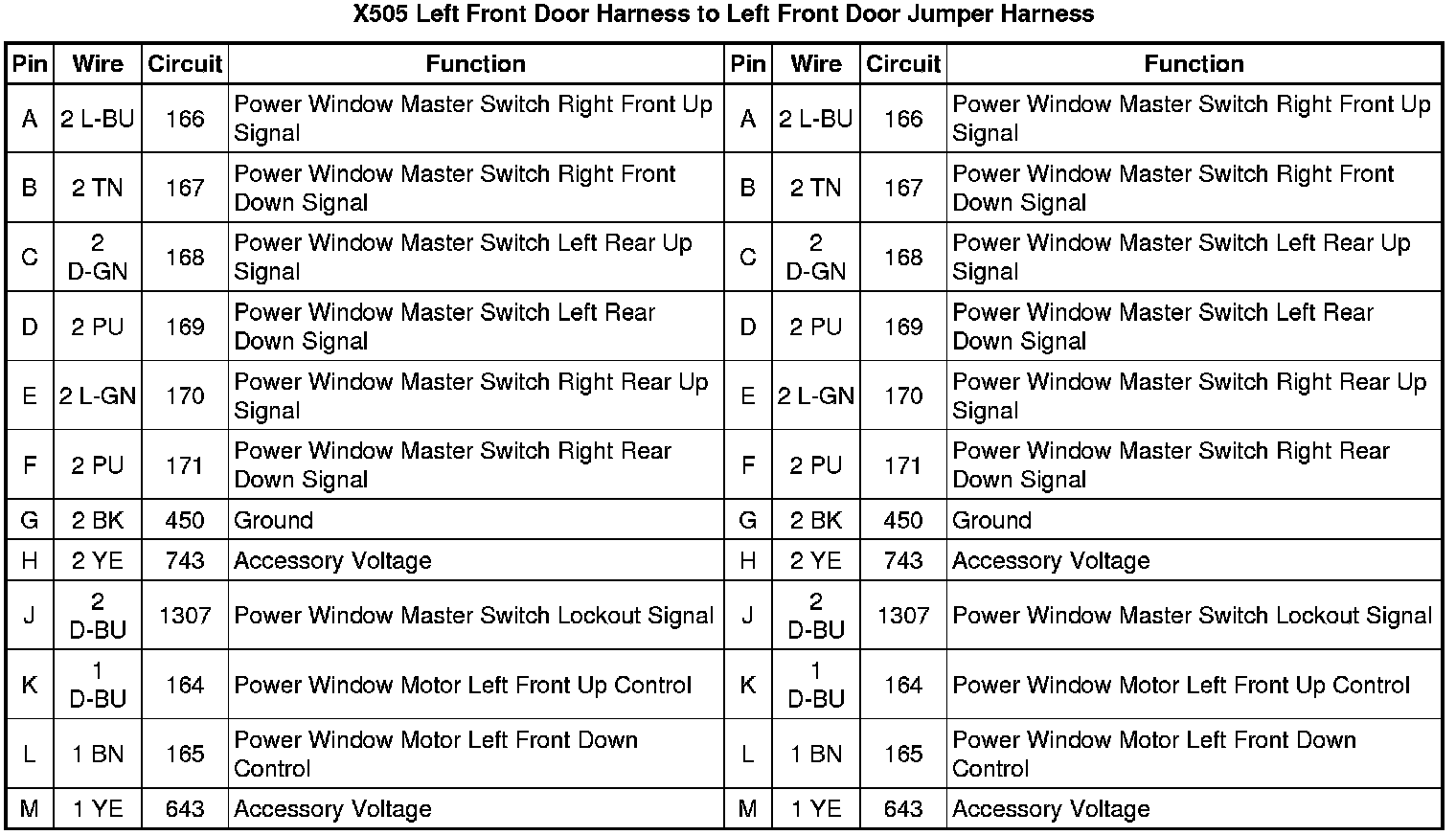

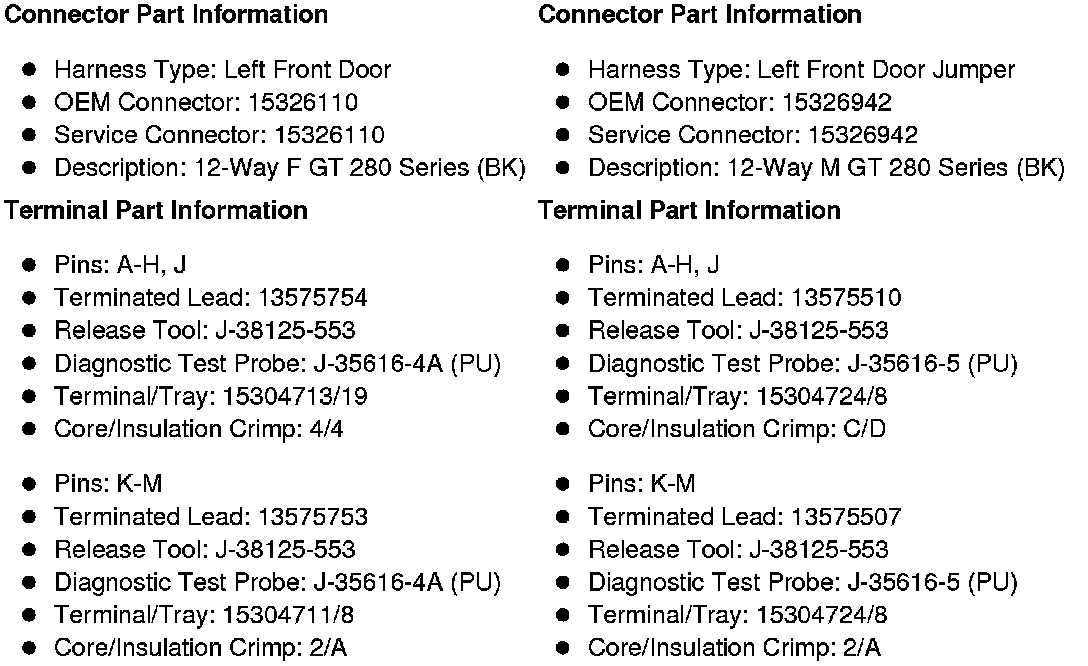

X505 Left Front Door Harness to Left Front Door Jumper Harness
