INSTRUMENT PANEL FUSE BLOCK

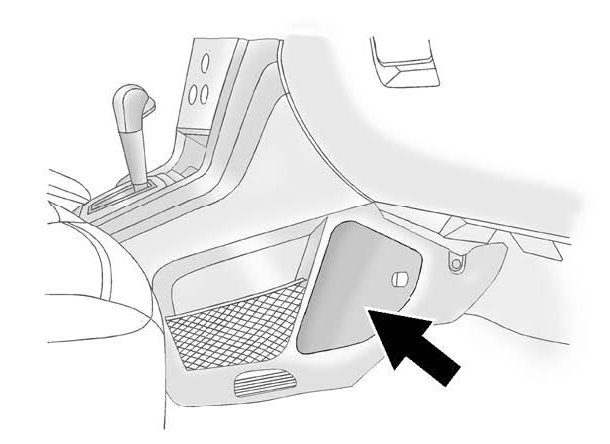

The instrument panel fuse block is located on the passenger side of the lower console.






Pull the latch of the fuse box cover straight back to access the fuses.






The vehicle may not have all of the fuses, relays, and features shown.

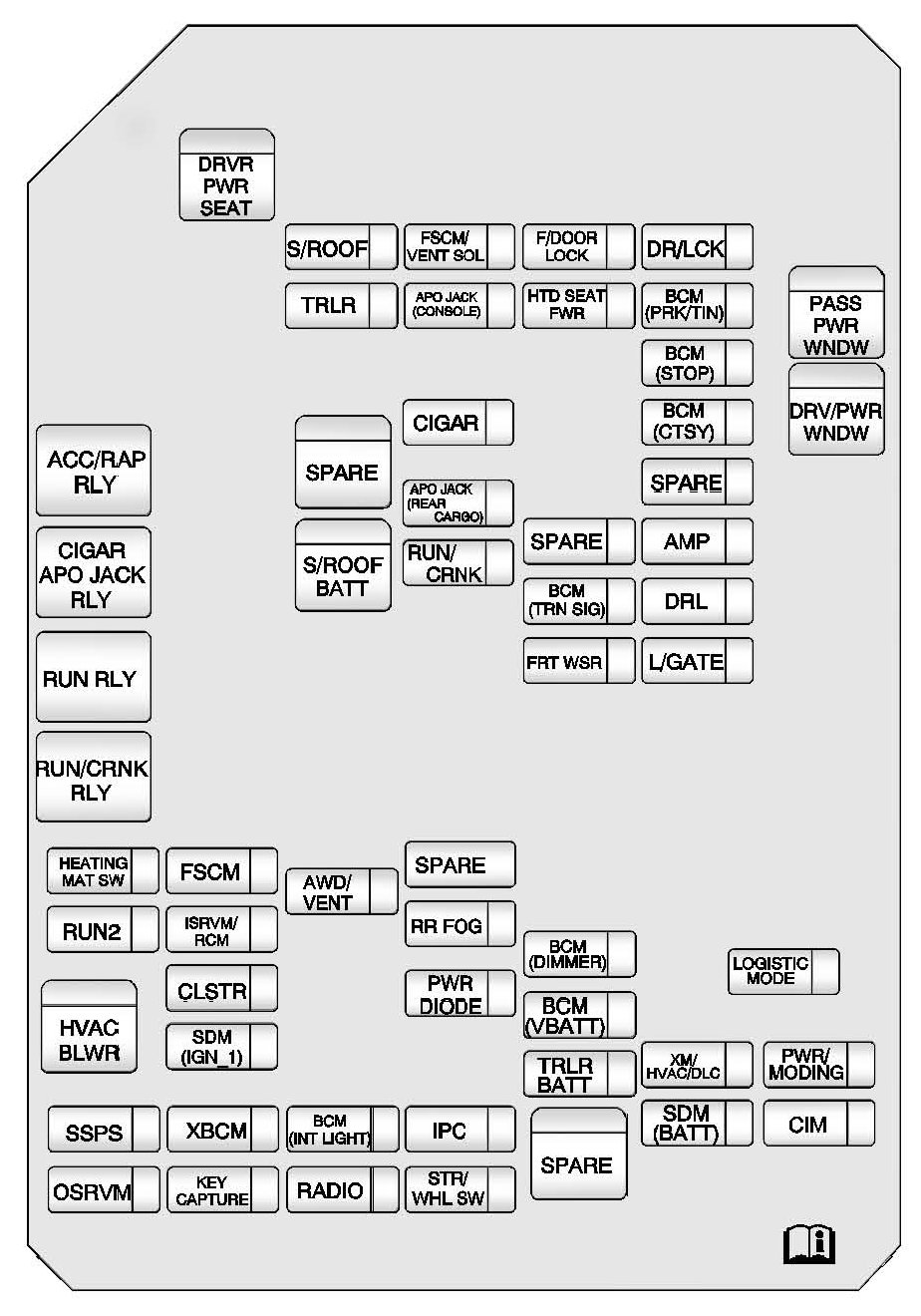

FUSES USAGE
AMP Amplifier
APO JACK (CONSOLE) Auxiliary Power Outlet Jack
APO JACK (REAR CARGO) Auxiliary Power Outlet Jack Rear Cargo
AWD/VENT All-Wheel Drive/Ventilation
BCM (CTSY) Body Control Module (Courtesy)
BCM (DIMMER) Body Control Module (Dimmer)
BCM (INT LIGHT Body Control Module (Interior Light)
BCM (PRK/TRN) Body Control Module (Parking/Turn Signal)
BCM (STOP) Body Control Module (Stoplamp)
BCM (TRN SIG) Body Control Module (Turn Signal)
BCM (VBATT) Body Control Module (Battery Voltage)
CIGAR Cigarette Lighter
CIM Communications Integration Module
CLSTR Instrument Cluster
DRL Daytime Running Lamps
DR/LCK Driver Door Lock
DRVR PWR SEAT Driver Power Seat
DRV PWR WNDW Driver Power Window
F/Door Lock Fuel Door Lock
FRT WSR Front Washer
FSCM Fuel System Control Module
FSCM VENT SOL Fuel System Control Module Vent Solenoid
HEATING MAT SW Heating Mat Switch
HTD SEAT PWR Heated Seat Power
HVAC BLWR Heating, Ventilation, and Air Conditioning Blower
IPC Instrument Panel Cluster
ISRVM/RCM Inside Rearview Mirror/Remote Compass Module
KEY CAPTURE Key Capture
L/GATE Liftgate
LOGISTIC MODE Logistic Mode
OSRVM Outside Rearview Mirror
PASS PWR WNDW Passenger Power Window
PWR DIODE Power Diode
PWR MODING Power Moding
RADIO Radio
RR FOG Rear Defogger
RUN 2 Power Battery Key On Run
RUN/CRNK Run Crank
SDM (BATT) Safety Diagnosis Module (Battery)
SDM (IGN 1) Safety Diagnosis Module (Ignition 1)
SPARE Spare
S/ROOF Sunroof
S/ROOF BATT Sunroof Battery
SSPS Speed Sensitive Power Steering
STR WHL SW Steering Wheel Switch
TRLR Trailer
TRLR BATT Trailer Battery
XBCM Export Body Control Module
XM/HVAC/DLC XM� Satellite Radio (If Equipped)/Heating, Ventilation, and Air Conditioning/Data Link Connection

RELAYS USAGE
ACC/RAP RLY Accessory/Run Accessory Power
CIGAR APO RLY Cigarette and Auxiliary Power Outlet
RUN/CRNK RLY Run/Crank
RUN RLY Run
