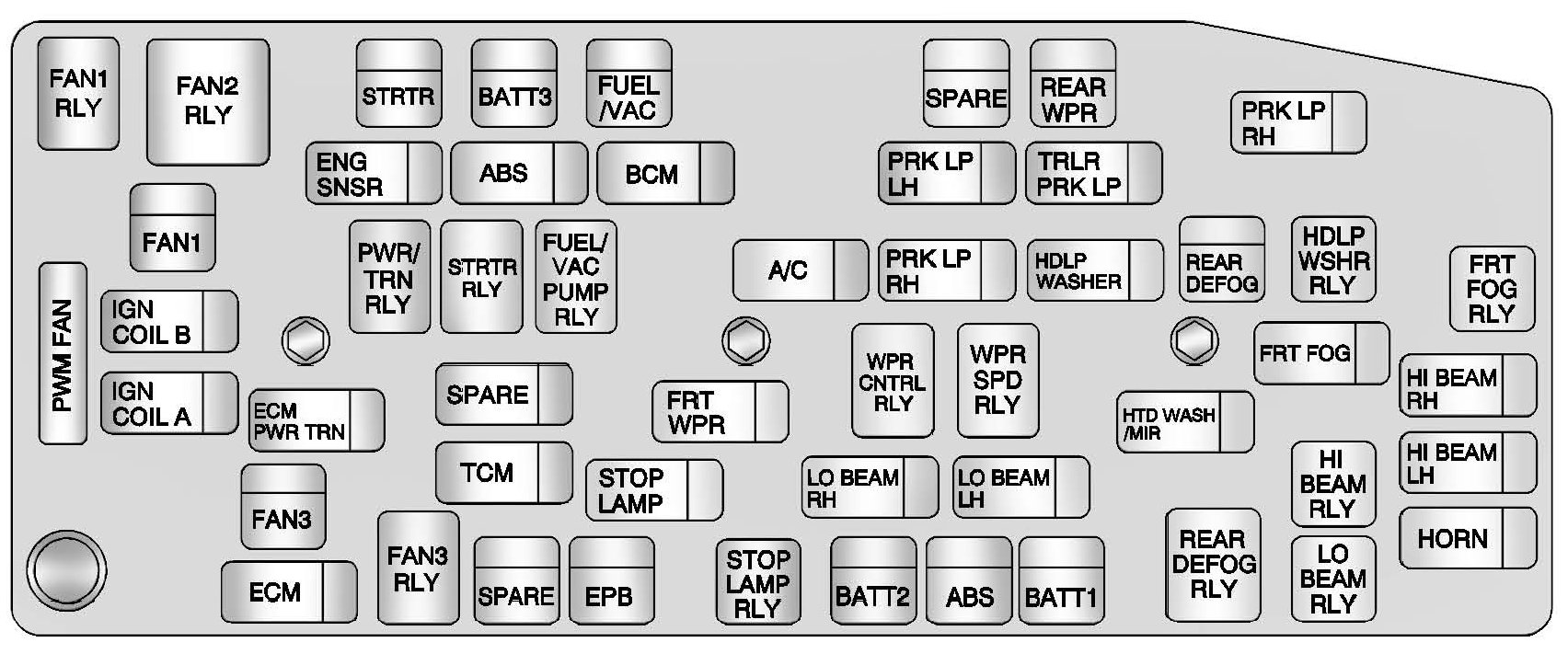

ENGINE COMPARTMENT FUSE BLOCK
The engine compartment fuse block is located on the right side of the engine compartment, near the battery.

Notice: Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.






The vehicle may not be equipped with all of the fuses, relays, and features shown.

FUSES USAGE
ABS Antilock Brake System
A/C Heater, Ventilation, and Air Conditioning System
BATT1 Instrument Panel Fuse Block Main Feed 1
BATT2 Instrument Panel Fuse Block Main Feed 2
BATT3 Instrument Panel Fuse Block Main Feed 3
BCM Body Control Module
ECM Engine Control Module
ECM PWR TRN Engine Control Module/Powertrain
ENG SNSR Miscellaneous Engine Sensors
EPB Electric Parking Brake
FAN1 Cooling Fan 1
FAN3 Cooling Fan 3
FRT FOG Front Fog Lamps
FRT WPR Front Wiper Motor
FUEL/VAC Fuel Pump/Vacuum Pump
HDLP WASHER Headlamp Washer
HI BEAM LH High-Beam Headlamp (Left)
HI BEAM RH High-Beam Headlamp (Right)
HORN Horn
HTD WASH/MIR Heated Washer Fluid/Heated Mirrors
IGN COIL A Ignition Coil A
IGN COIL B Ignition Coil B
LO BEAM LH Low-Beam Headlamp (Left)
LO BEAM RH Low-Beam Headlamp (Right)
PRK LP LH Parking Lamps (Left)
PRK LP RH Parking Lamps (Right)
PRK LP RH* Parking Lamps (Right) (Europe Park Lamps)
PWM FAN Pulse Width Modulation Fan
REAR DEFOG Rear Window Defogger
REAR WPR Rear Wiper Motor
SPARE Not Used
STOP LAMP Stoplamps
STRTR Starter
TCM Transmission Control Module
TRLR PRK LP Trailer Parking Lamps

RELAYS USAGE
FAN1 RLY Cooling Fan 1
FAN2 RLY Cooling Fan 2
FAN3 RLY Cooling Fan 3
FRT FOG RLY Front Fog Lamps
FUEL/VAC PUMP RLY Fuel Pump/Vacuum Pump Relay
HDLP WSHR RLY Headlamp Washer
HI BEAM RLY High-Beam Headlamps
LO BEAM RLY Low-Beam Headlamps
PWR/TRN RLY Powertrain
REAR DEFOG RLY Rear Window Defogger
STOP LAMP RLY Stoplamps
STRTR RLY Starter
WPR CNTRL RLY Wiper Control
WPR SPD RLY Wiper Speed
