Neutral Safety Switch: Locations

Instrument Panel/Center Console Component Views

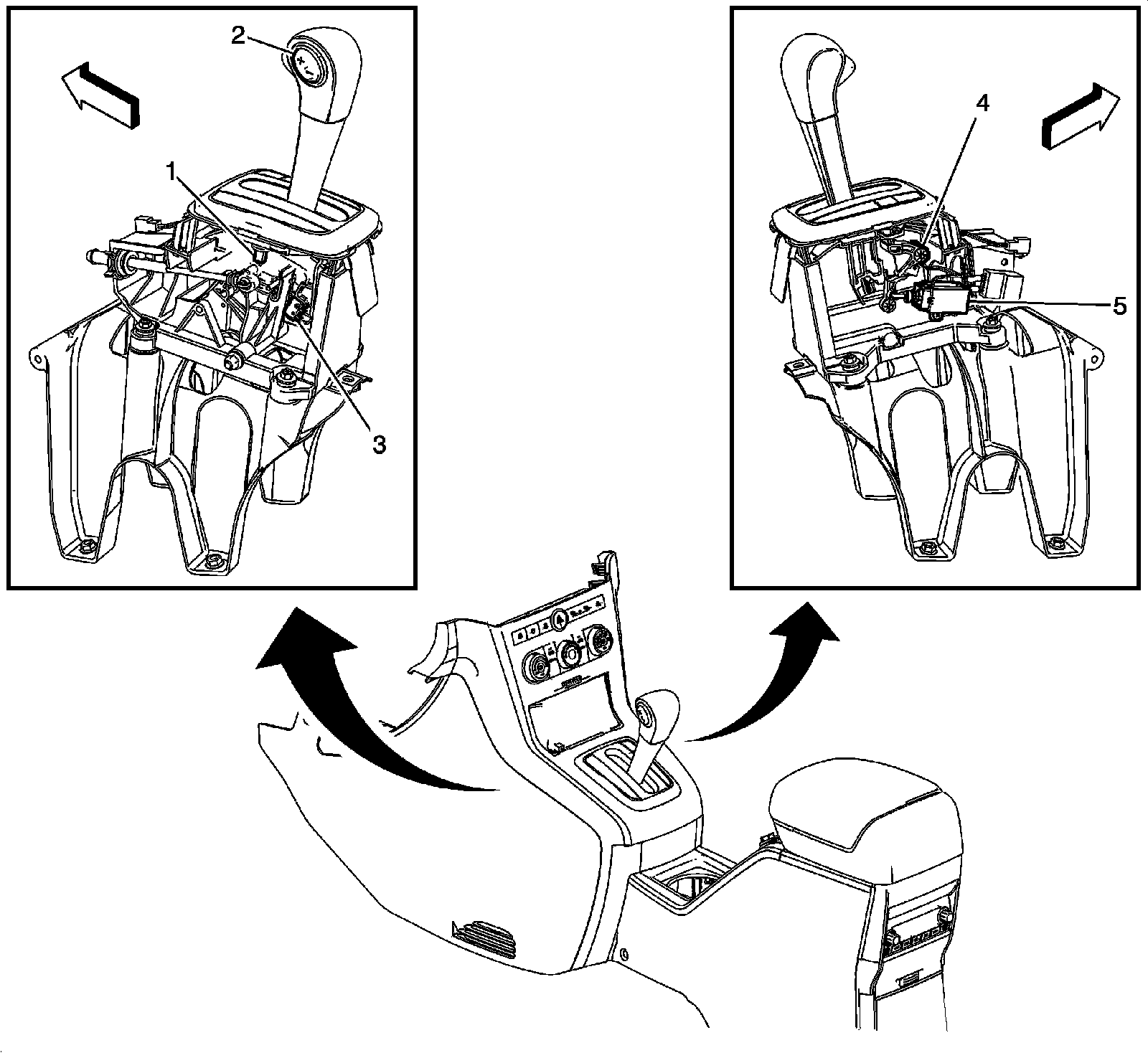

Automatic Transmission Floor Shifter Components





1 - Automatic Transmission Shift Lever Position Indicator

2 - Automatic Transmission Manual Shift Switch 1 (Tap Up/Tap Down)

3 - Automatic Transmission Manual Shift Switch 2 (Tap Up/Tap Down)

4 - Park Position Switch

5 - Automatic Transmission Shift Lock Control Solenoid
