HVAC Control Module

Instrument Panel/Center Console Component Views

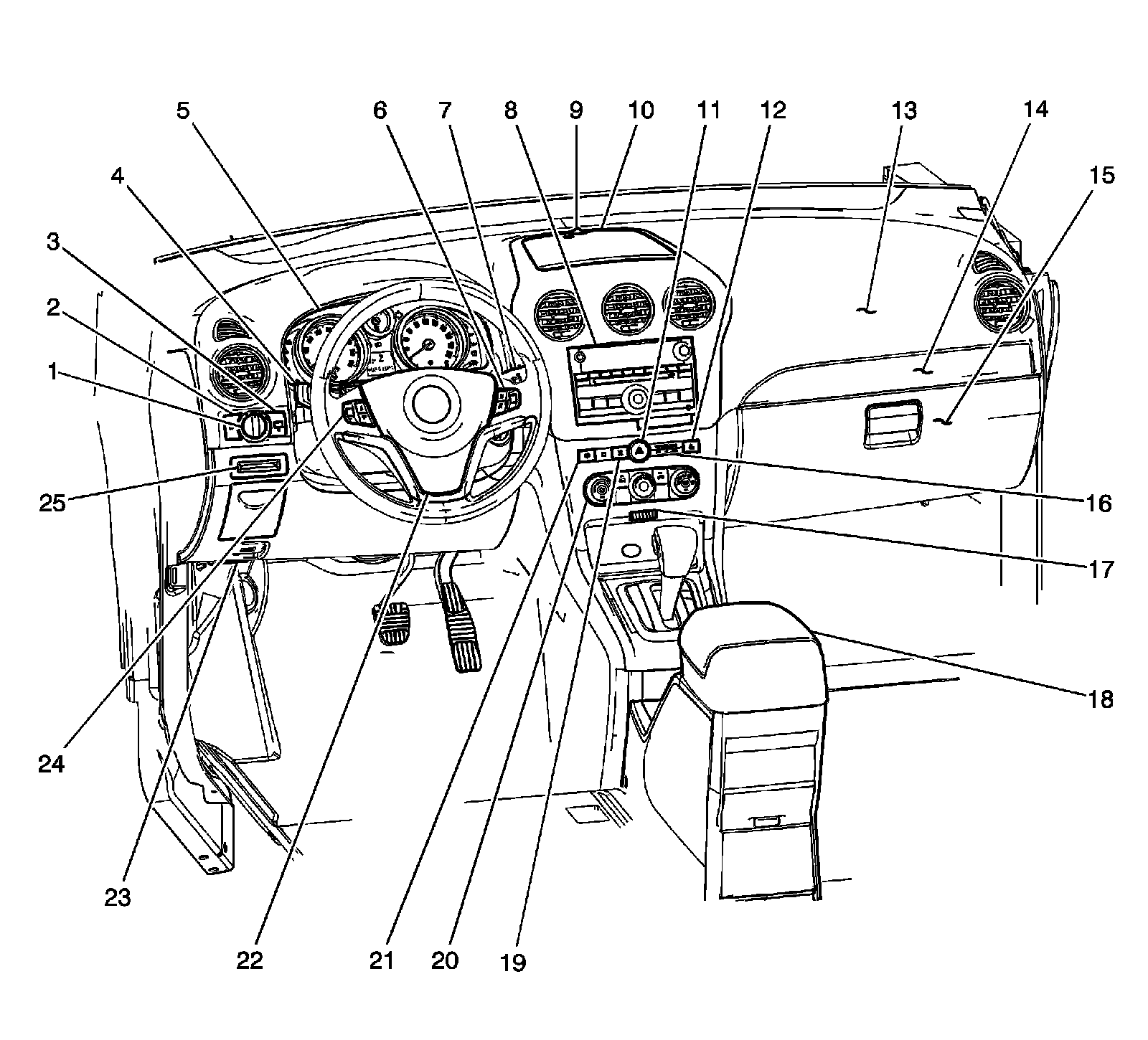

Front of Instrument Panel Components





1 - Headlamp Switch

2 - Fog Lamp Switch (T37, T96)

3 - I/P Dimmer Switch

4 - Turn Signal/Multifunction Switch

5 - Instrument Panel Cluster

6 - Steering Wheel Control Switch - Right (UK3)

7 - Windshield Wiper/Washer Switch - Front

8 - Radio

9 - Ambient Light Sensor/Sunload Sensor (C68) or Ambient Light Sensor (C67)

10 - Speaker - Center I/P (U61)

11 - Hazard Warning Switch (part of Multifunction Switch - I/P)

12 - Inflatable Restraint Passenger Presence Indicator (part of Multifunction Switch - I/P)

13 - Inflatable Restraint I/P Module

14 - I/P Compartment Lamp

15 - I/P Compartment Lamp Switch

16 - Security Indicator Lamp (part of Multifunction Switch - I/P)

17 - Air Temperature Sensor - Inside (C68)

18 - Floor Console

19 - Traction Control Switch (part of Multifunction Switch - I/P)

20 - HVAC Control Module

21 - Windshield Wiper/Washer Switch - Rear (part of Multifunction Switch - I/P)

22 - Inflatable Restraint Steering Wheel Module

23 - Data Link Connector (DLC)

24 - Steering Wheel Control Switch - Left (UK3)

25 - Driver Information Center (DIC) Switch
