Heated Seat Control Module - Driver (KA1)

Passenger Compartment/Roof Component Views

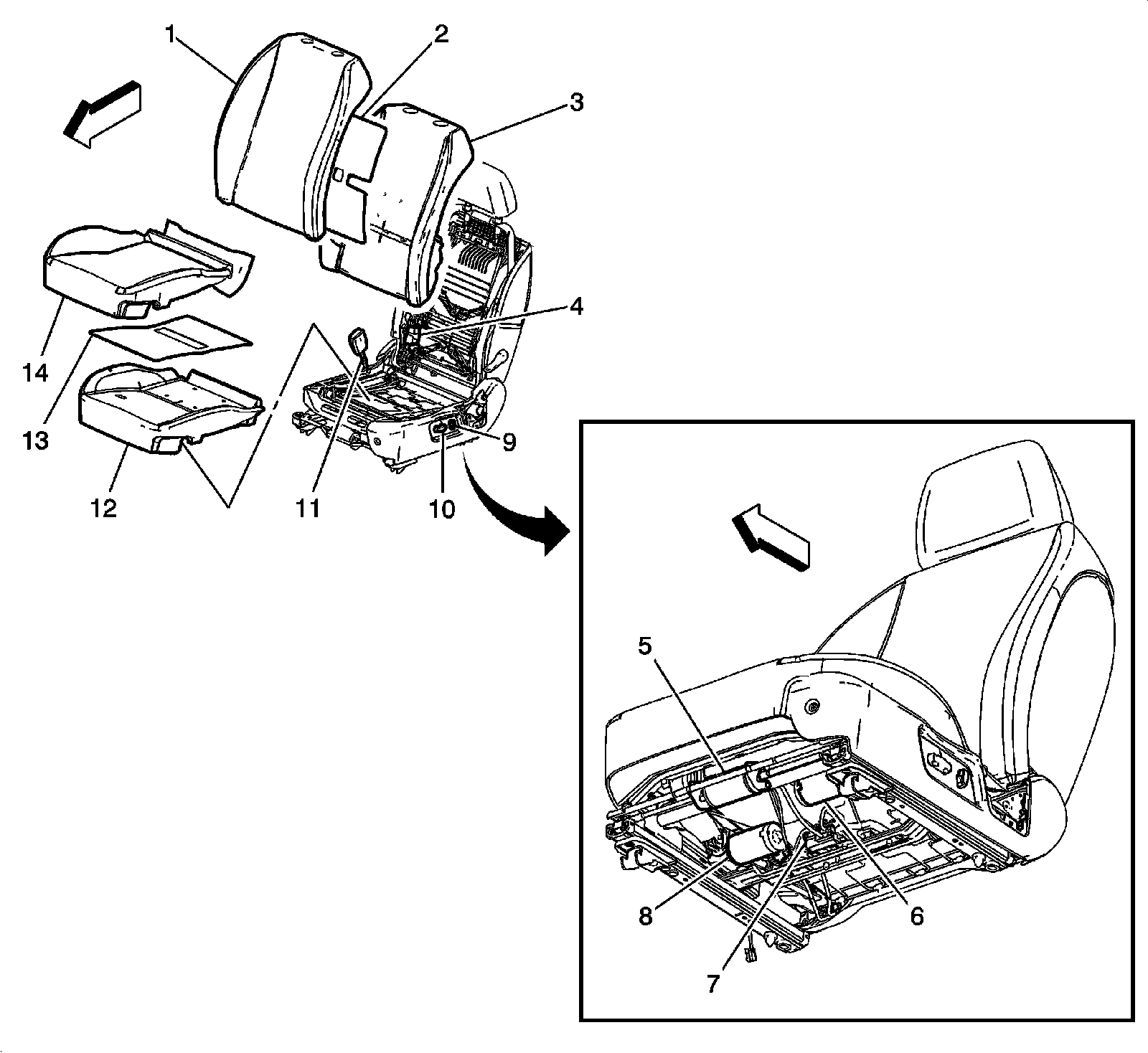

Driver Seat Components





1 - Seat Back Cover - Driver

2 - Heated Seat Element - Driver Back (KA1)

3 - Seat Back Cushion Pad - Driver

4 - Seat Recline Motor - Driver (AE8)

5 - Seat Horizontal Motor - Driver (AE8)

6 - Seat Rear Vertical Motor - Driver (AE8)

7 - Heated Seat Control Module - Driver (KA1)

8 - Seat Front Vertical Motor - Driver (AE8)

9 - Seat Recline Switch - Driver (AE8)

10 - Seat Adjuster Switch - Driver (AE8)

11 - Seat Belt Switch - Driver

12 - Seat Cushion - Driver

13 - Heated Seat Element - Driver Cushion (KA1)

14 - Seat Cover - Driver
