Home >> Chevy Truck >> 2012 >> Captiva Sport AWD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X900 - X999 >> X925 >> (UVC)

(UVC)




Inline Harness Connector End Views

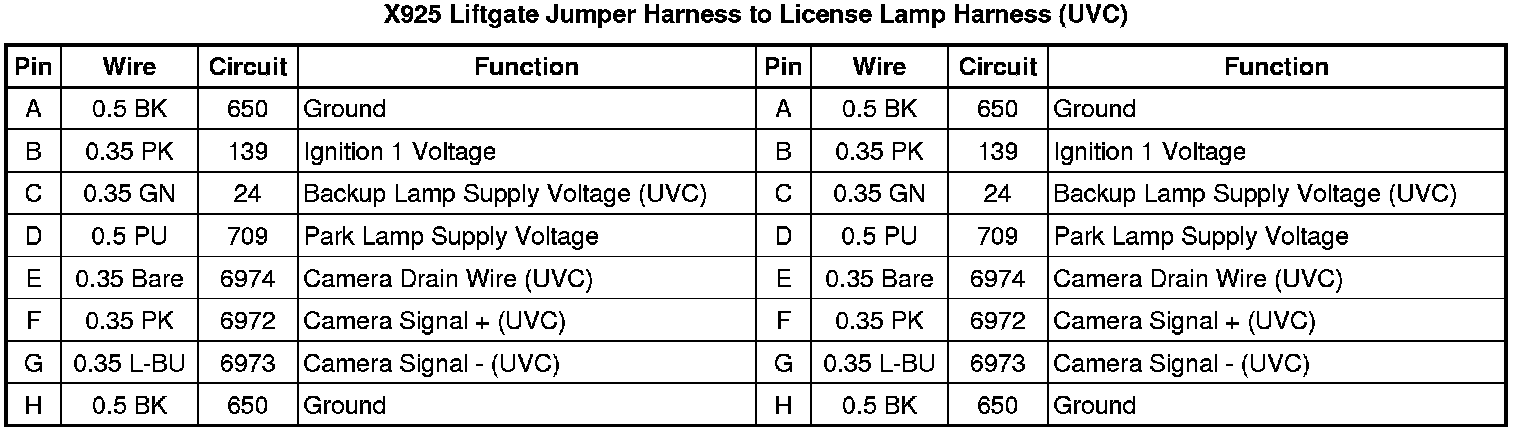

X925 Liftgate Jumper Harness to License Lamp Harness (UVC)
