Outside Rearview Mirror - Driver (DG7 or DL8)
Outside Rearview Mirror - Driver (DG7 or DL8)

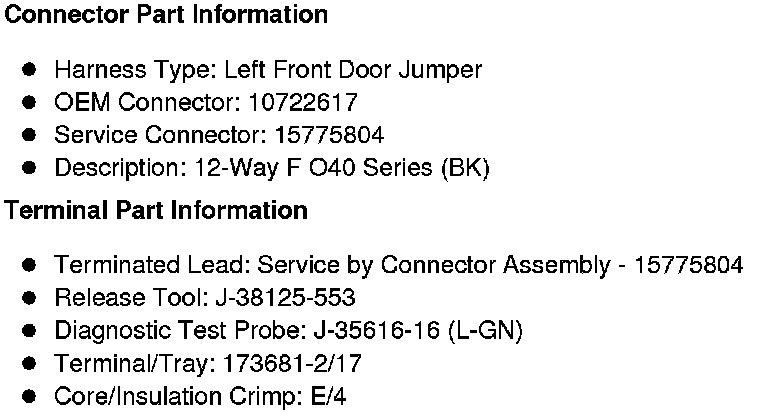

Component Connector End Views

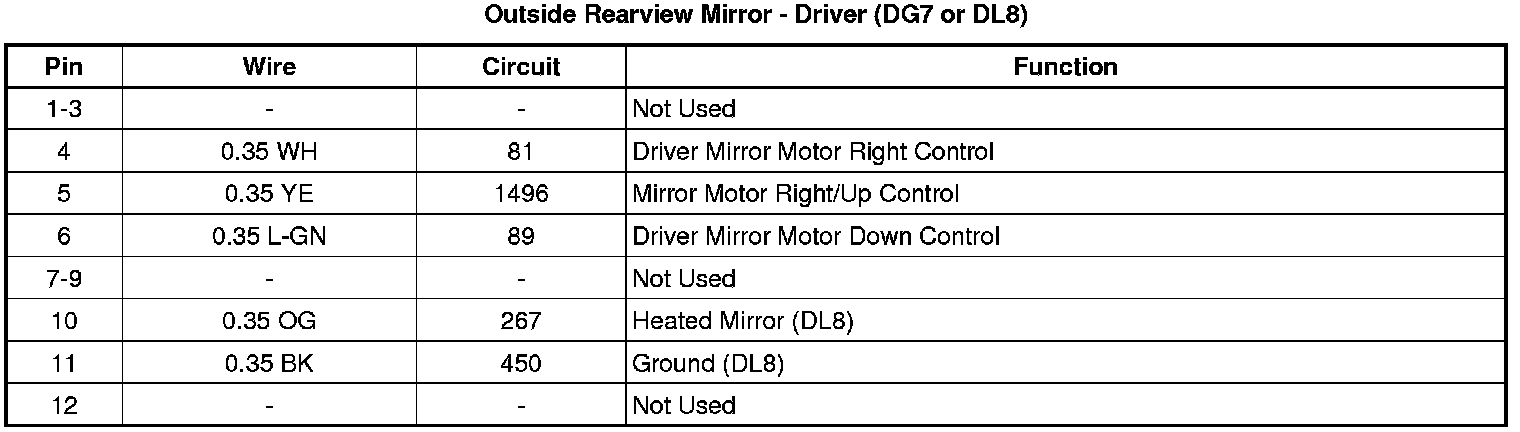

Outside Rearview Mirror - Driver (DG7 or DL8)
