Engine Harness Routing




Harness Routing Views

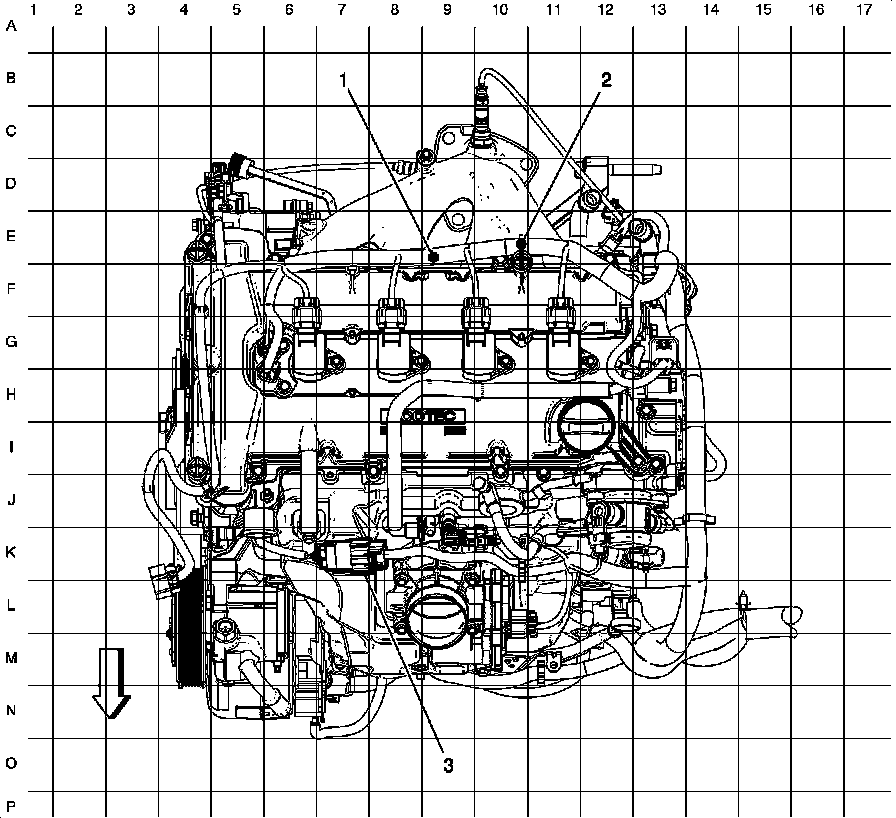

Engine Harness Routing





1 - J118

2 - J110

3 - X108

4 - X160
