Home >> Chevy Truck >> 2012 >> Captiva Sport AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G302

G302




Ground Distribution Schematics

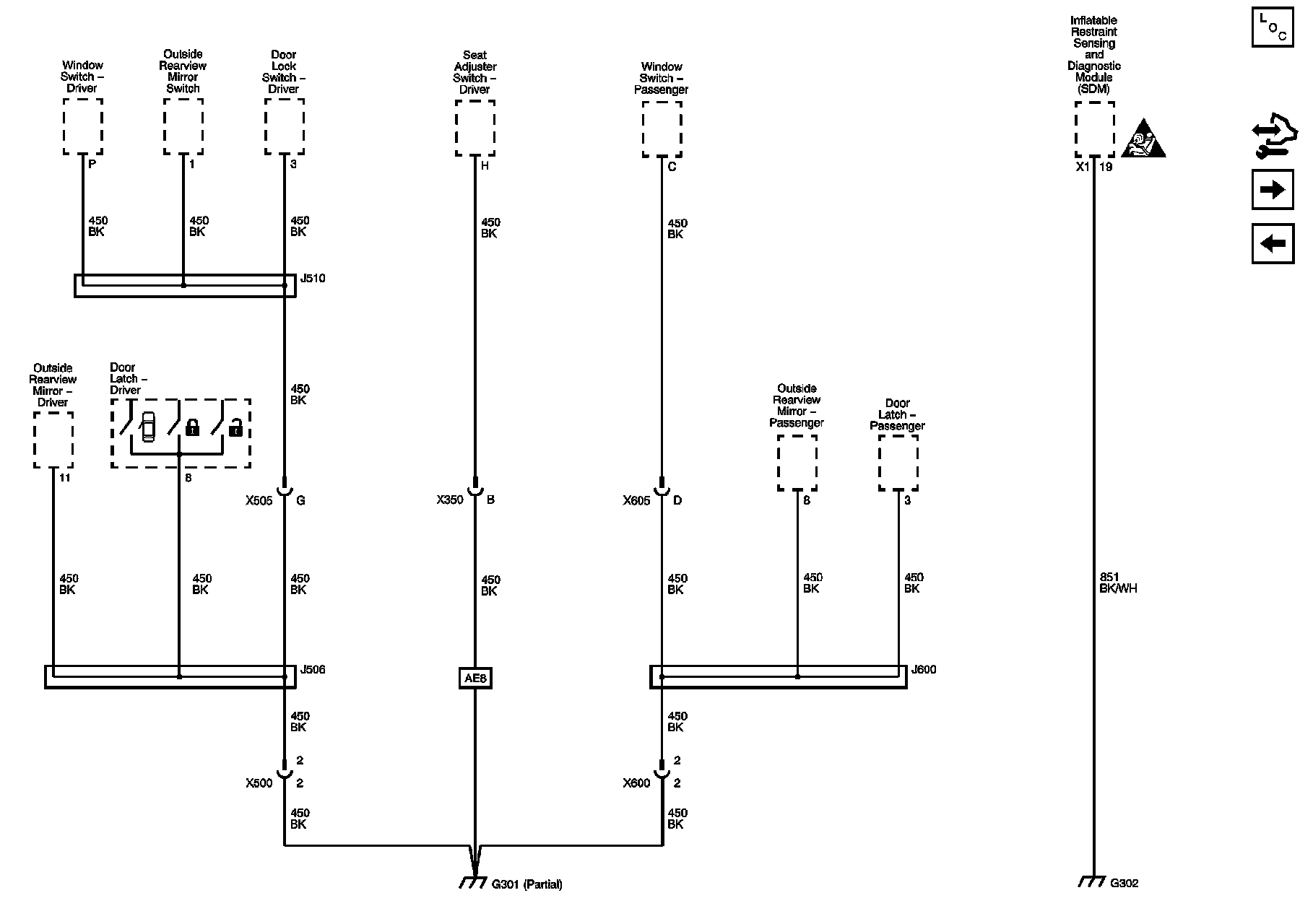

G301 (2 of 2), and G302
