Interior Lights Schematics




Interior Lights Schematics

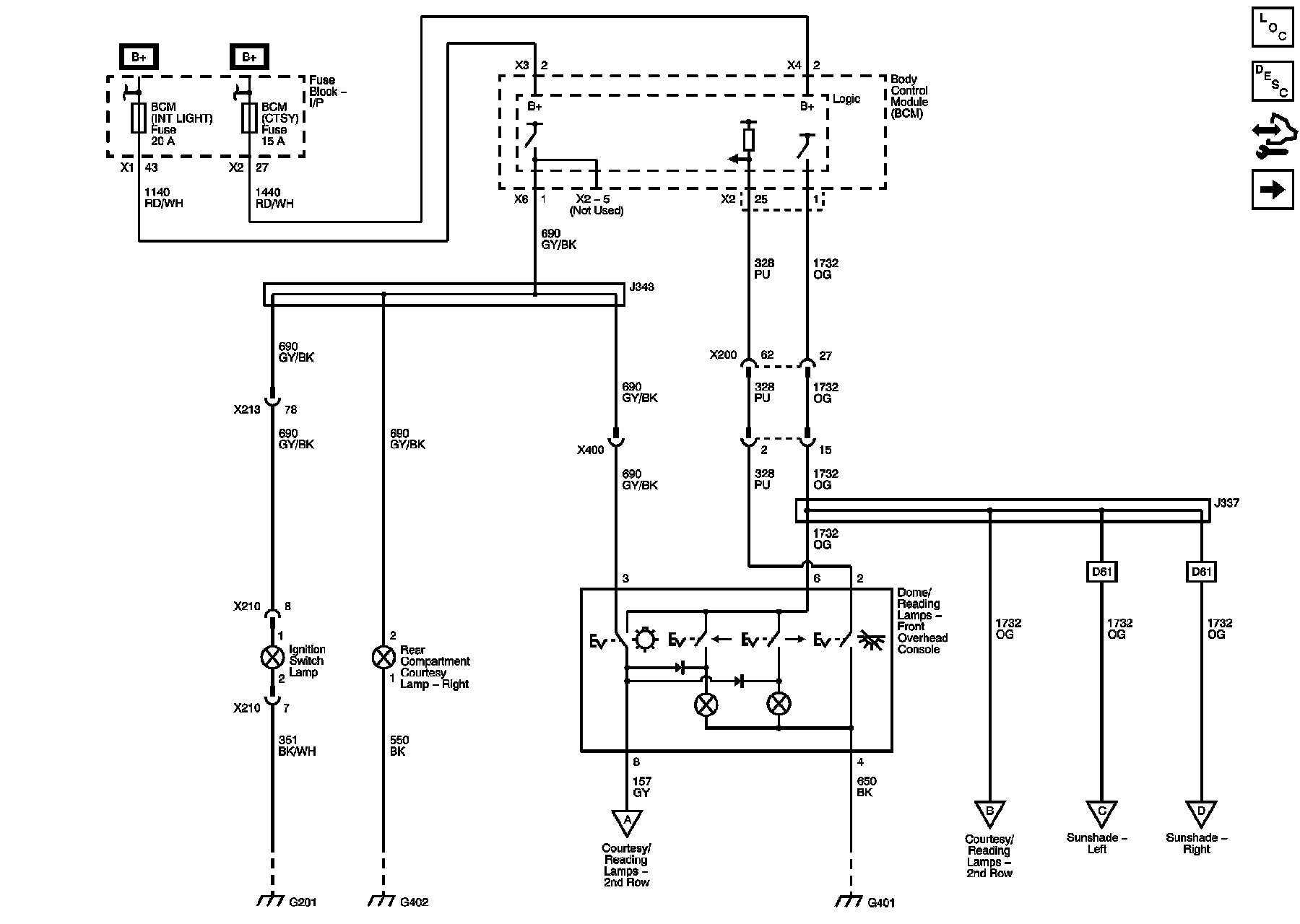

Dome/Reading, Ignition Switch, and Rear Compartment Courtesy Lamps

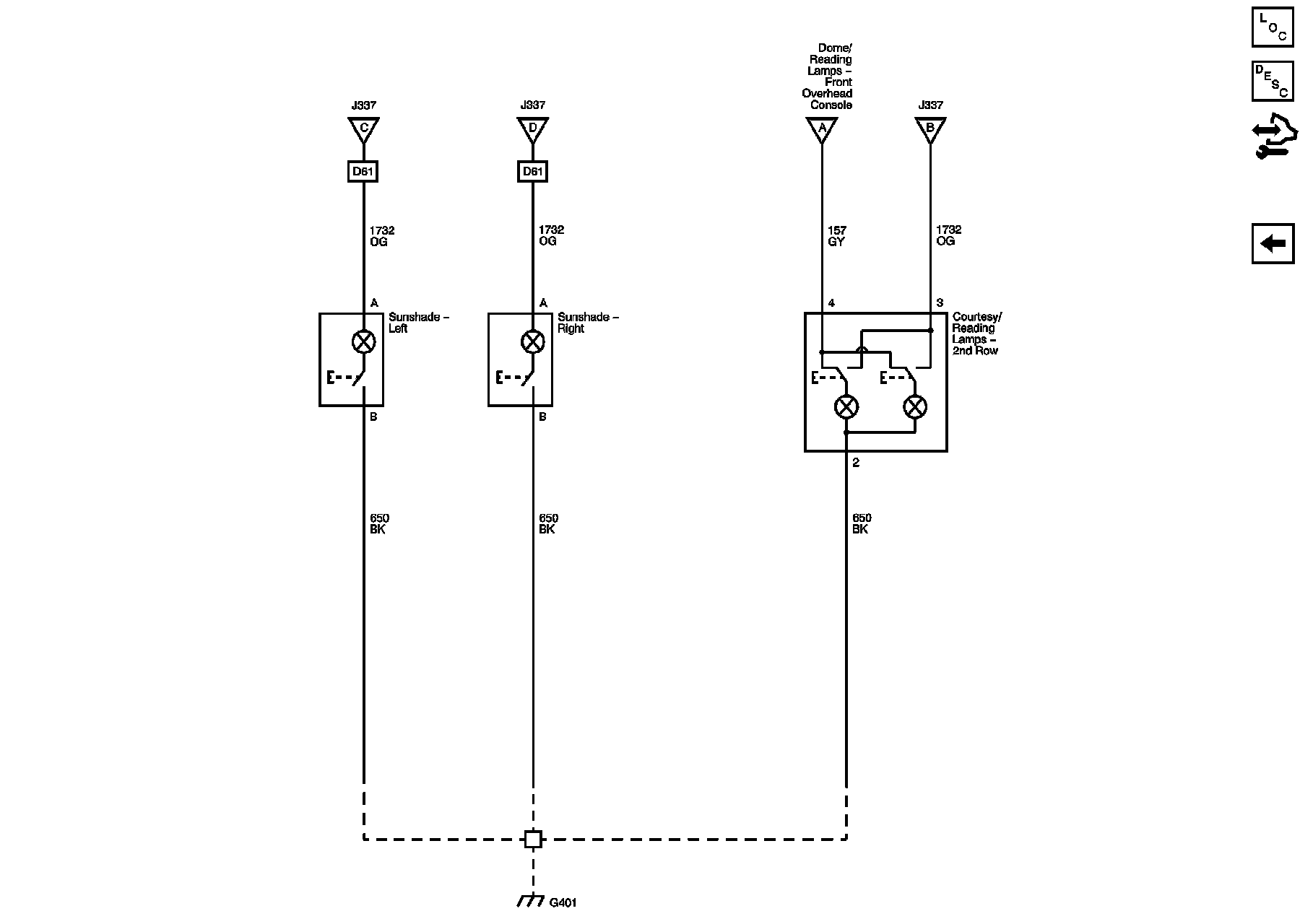

Courtesy/Reading and Sunshade Lamps
