Home >> Chevy Truck >> 2012 >> Captiva Sport AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Dimming Schematics

Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

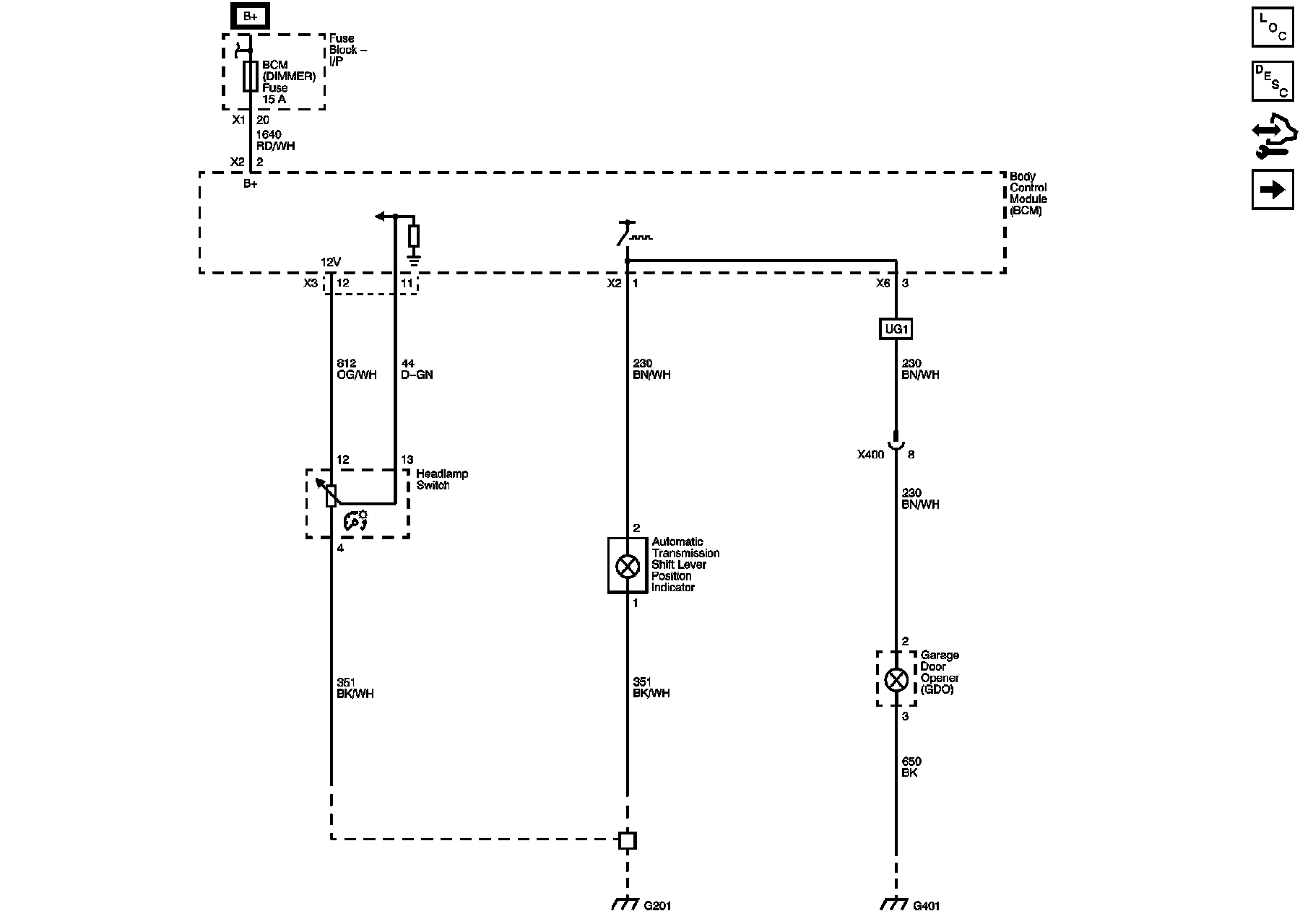

Dimming Control, Garage Door Opener, and Shift Lever Position Indicator

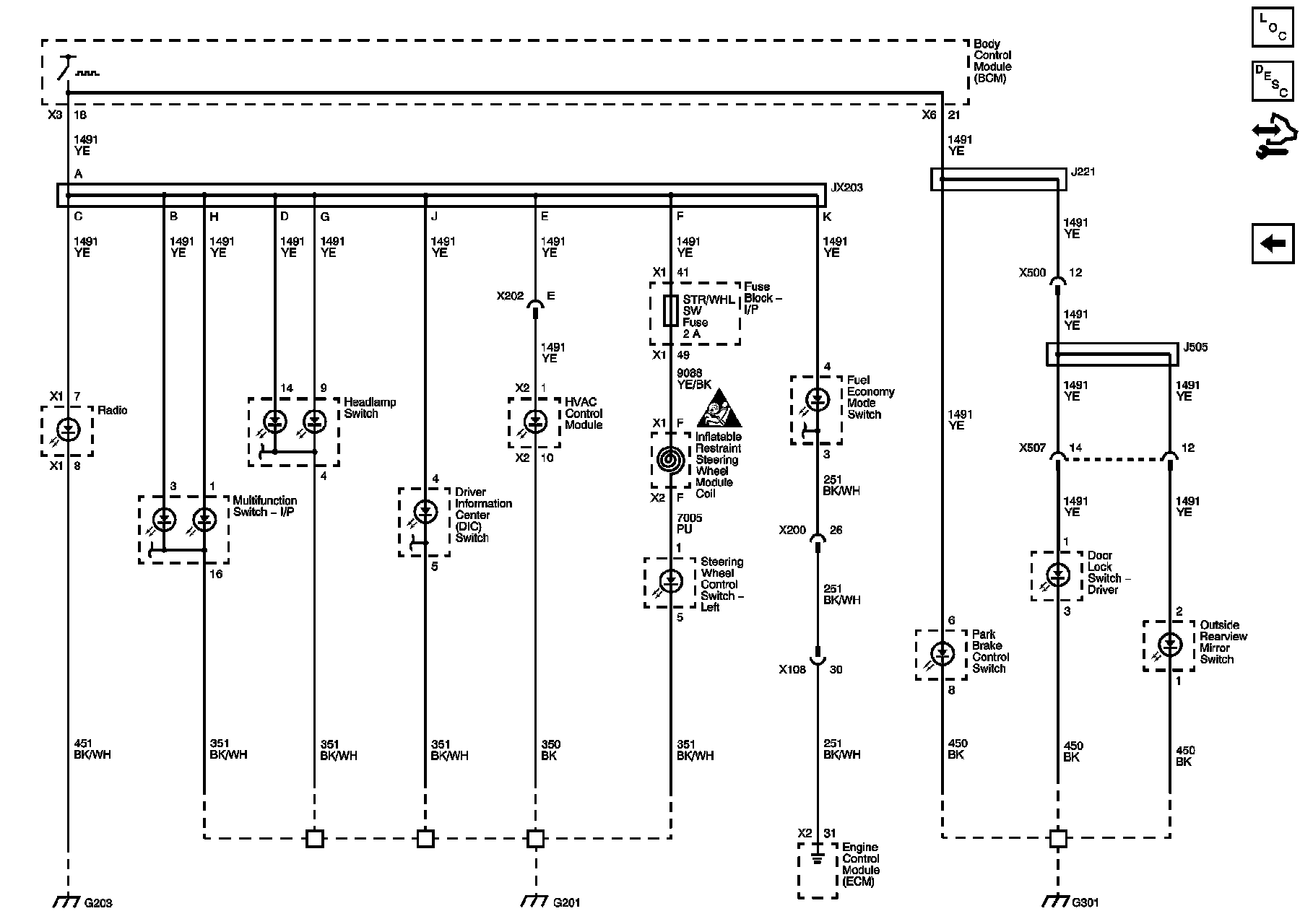

Center Console, Door, and Instrument Panel Dimming
