System Diagram

Automatic Transmission Controls Schematics

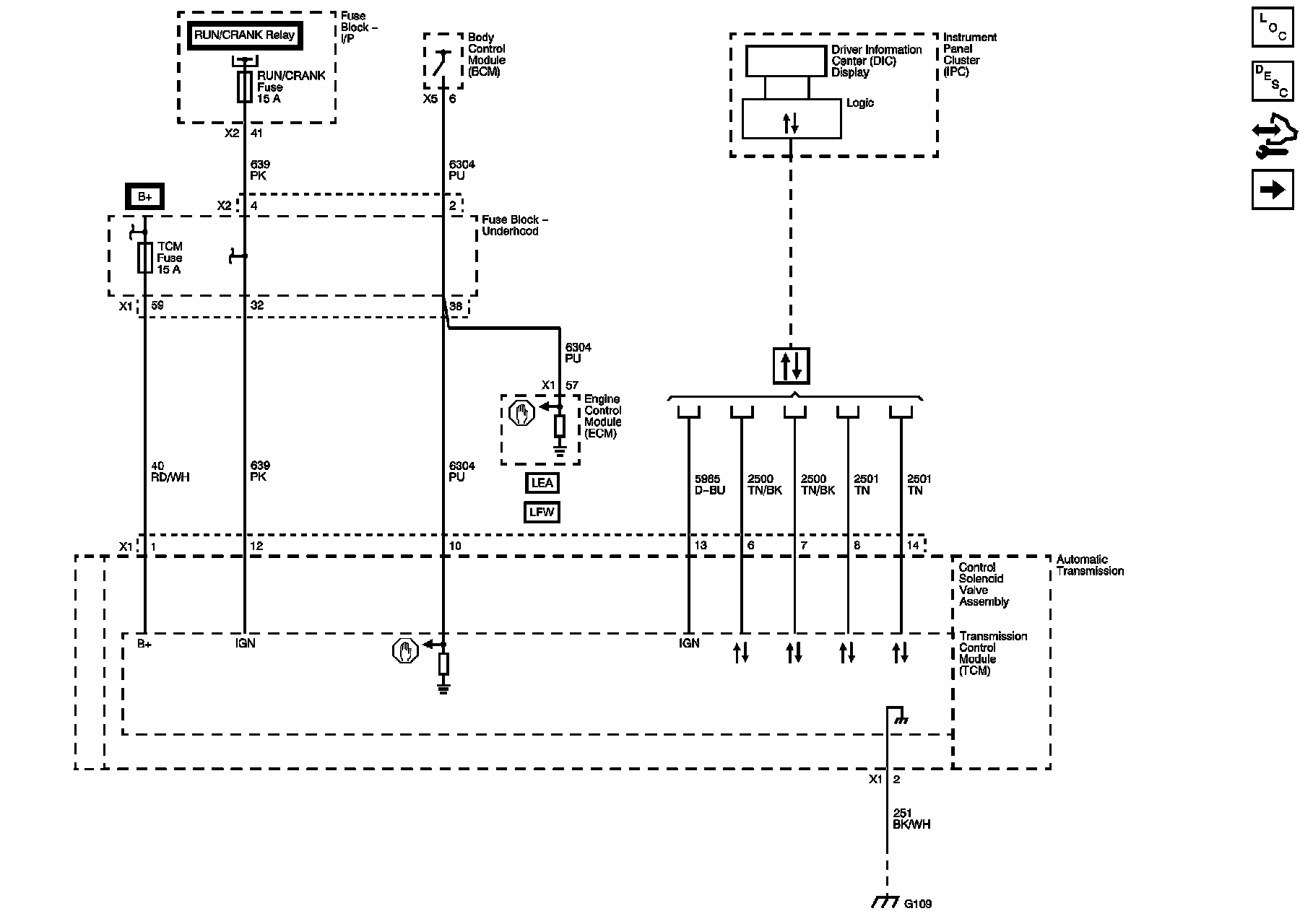

Module Power, Ground, Data Communications, MIL, and Brake Signal

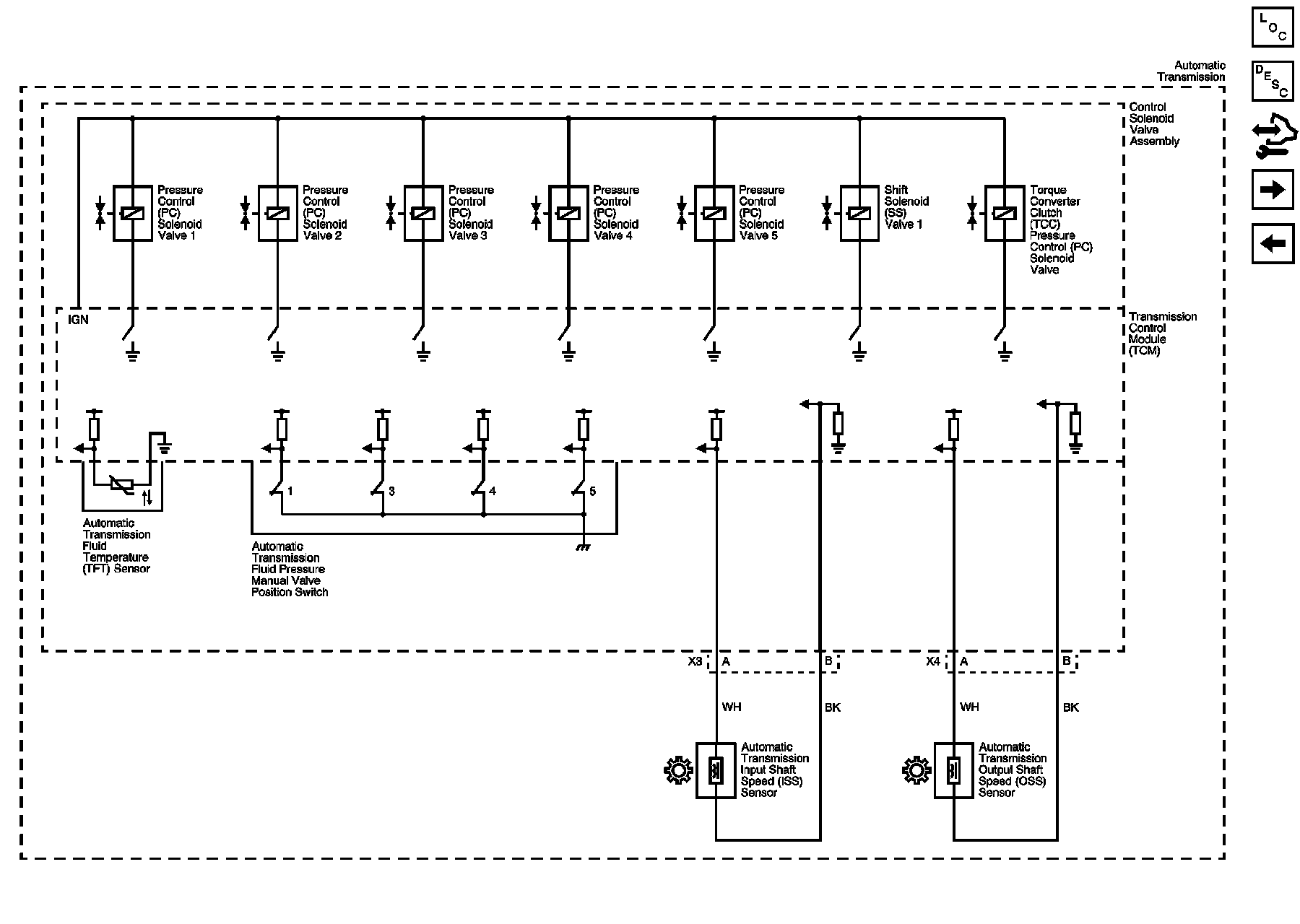

Speed and Temperature Sensors, Pressure and Shift Controls

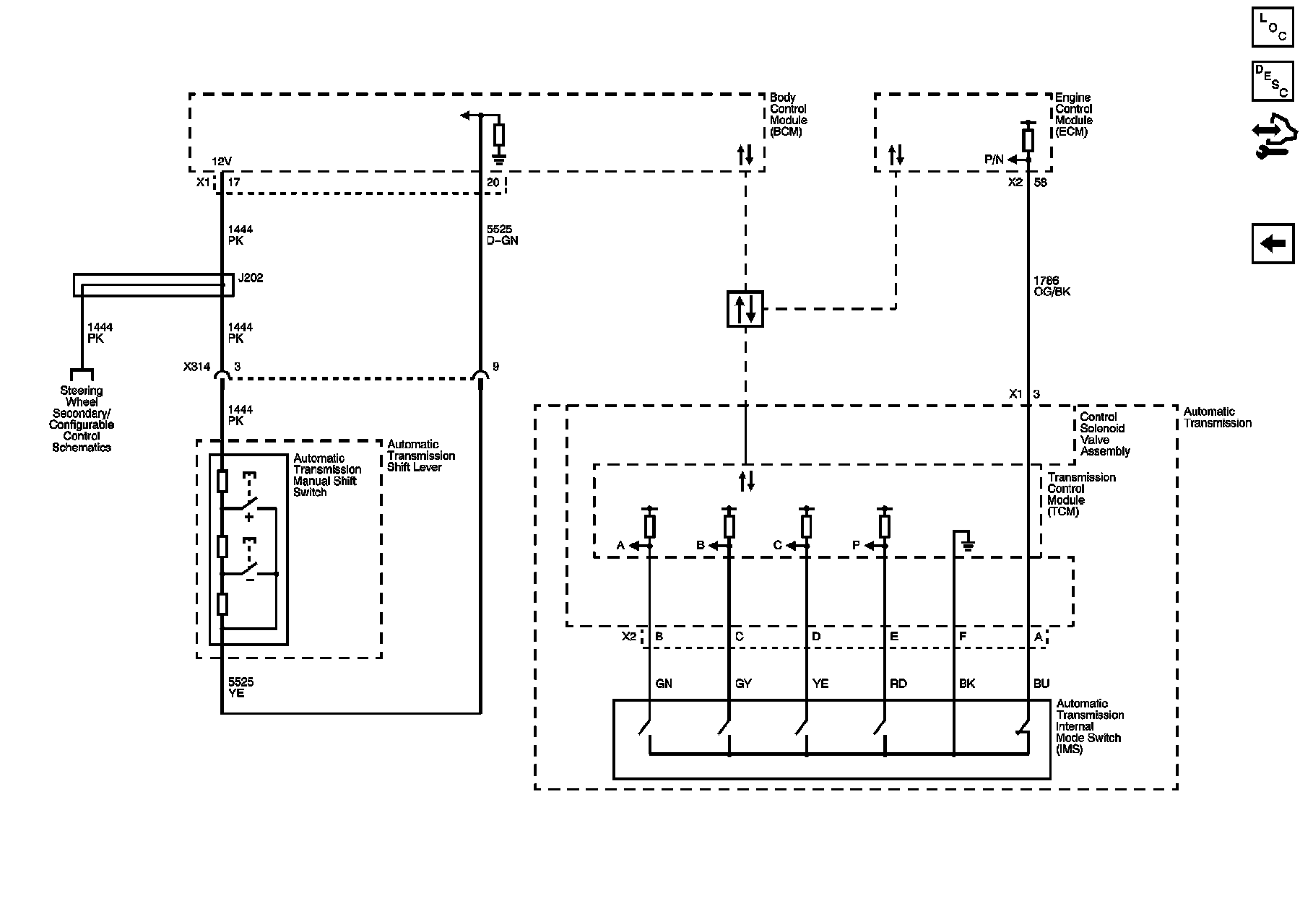

Internal Mode and Tap Up/Tap Down Switches
