Radio/Navigation System Schematics




Radio/Navigation System Schematics

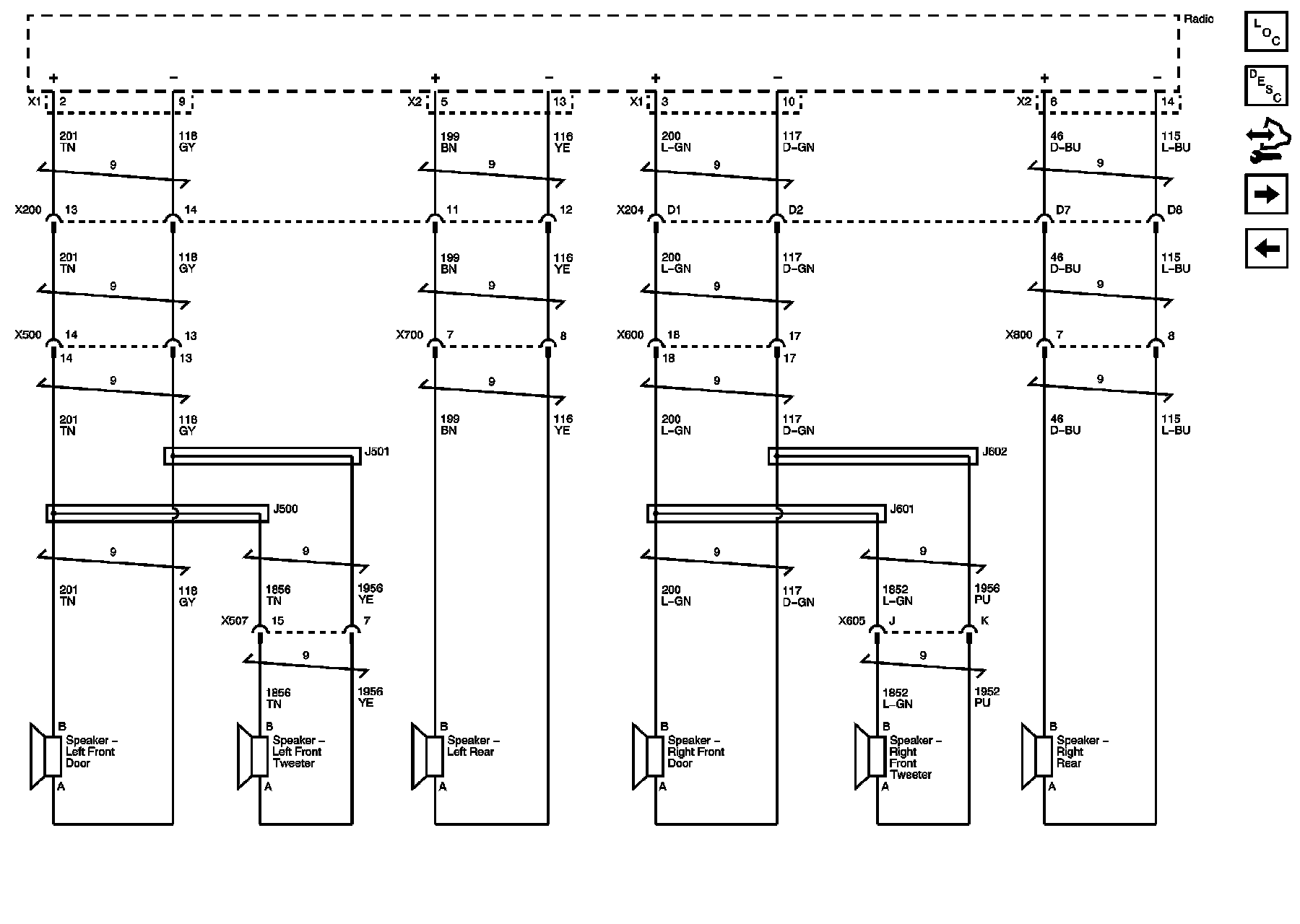

Power, Ground, Serial Data, Antenna, and Lighting

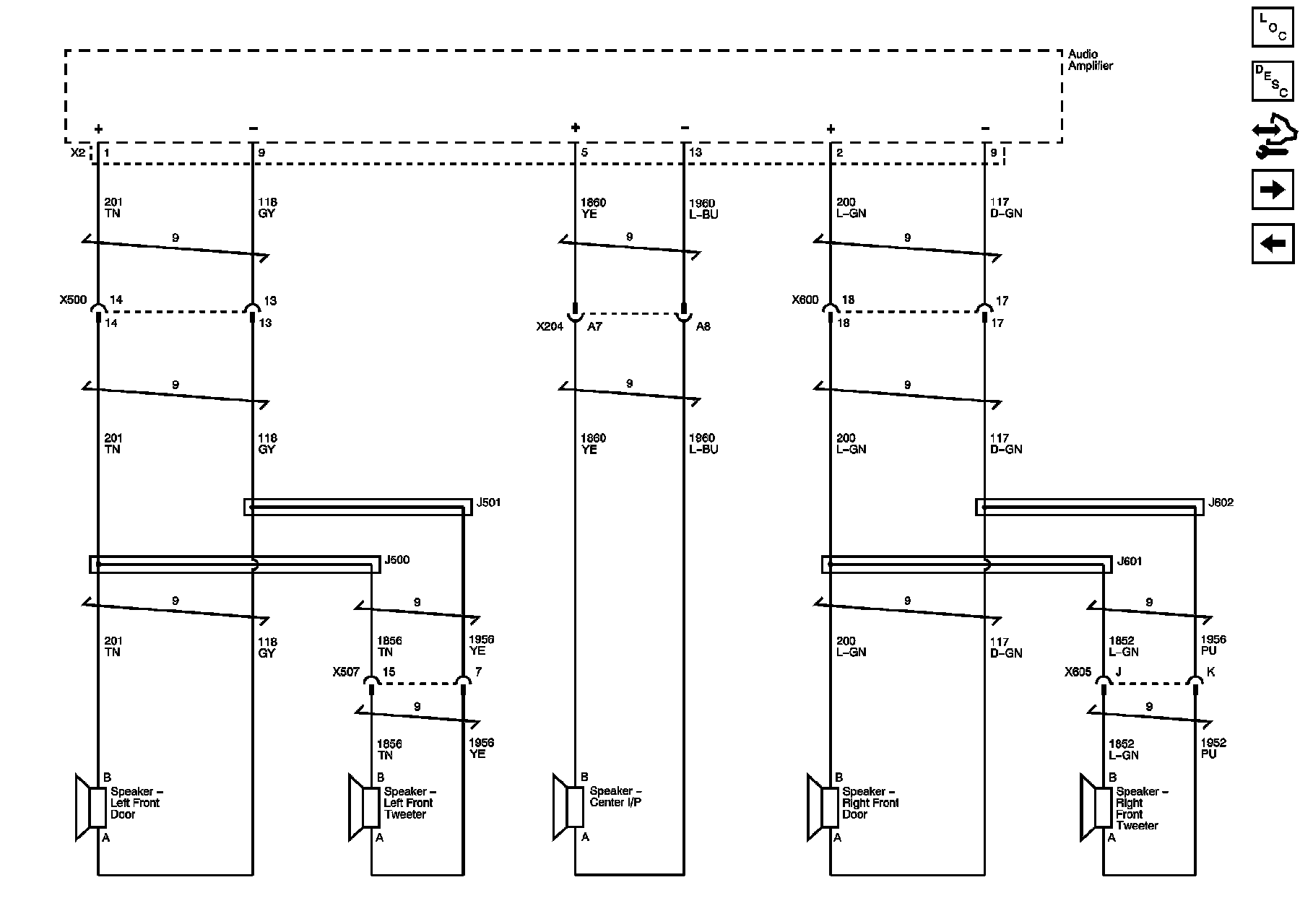

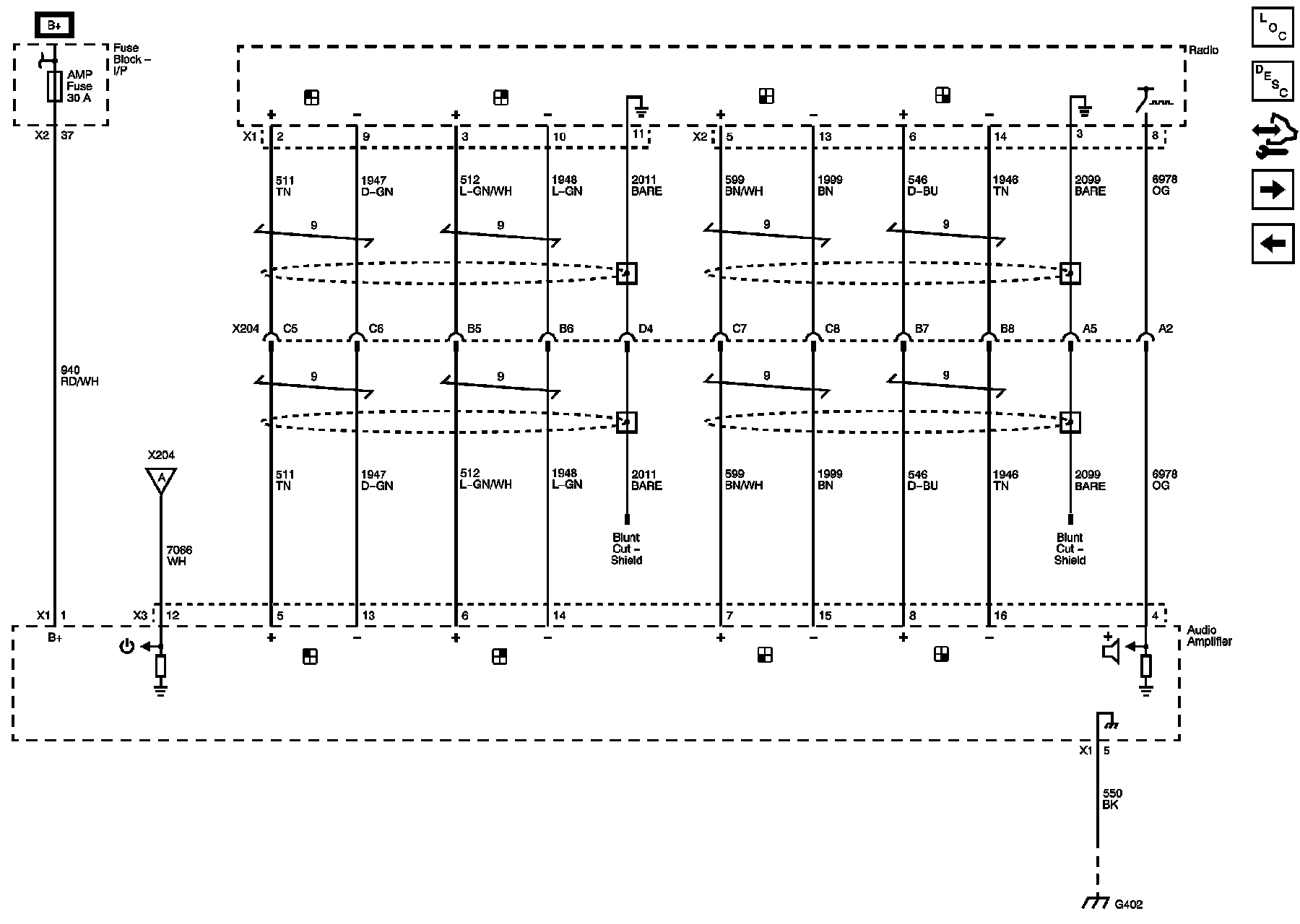

Audio Amplifier (U61)






Front Speakers (U61)






Rear Speakers (U61)






Speakers (UW6)

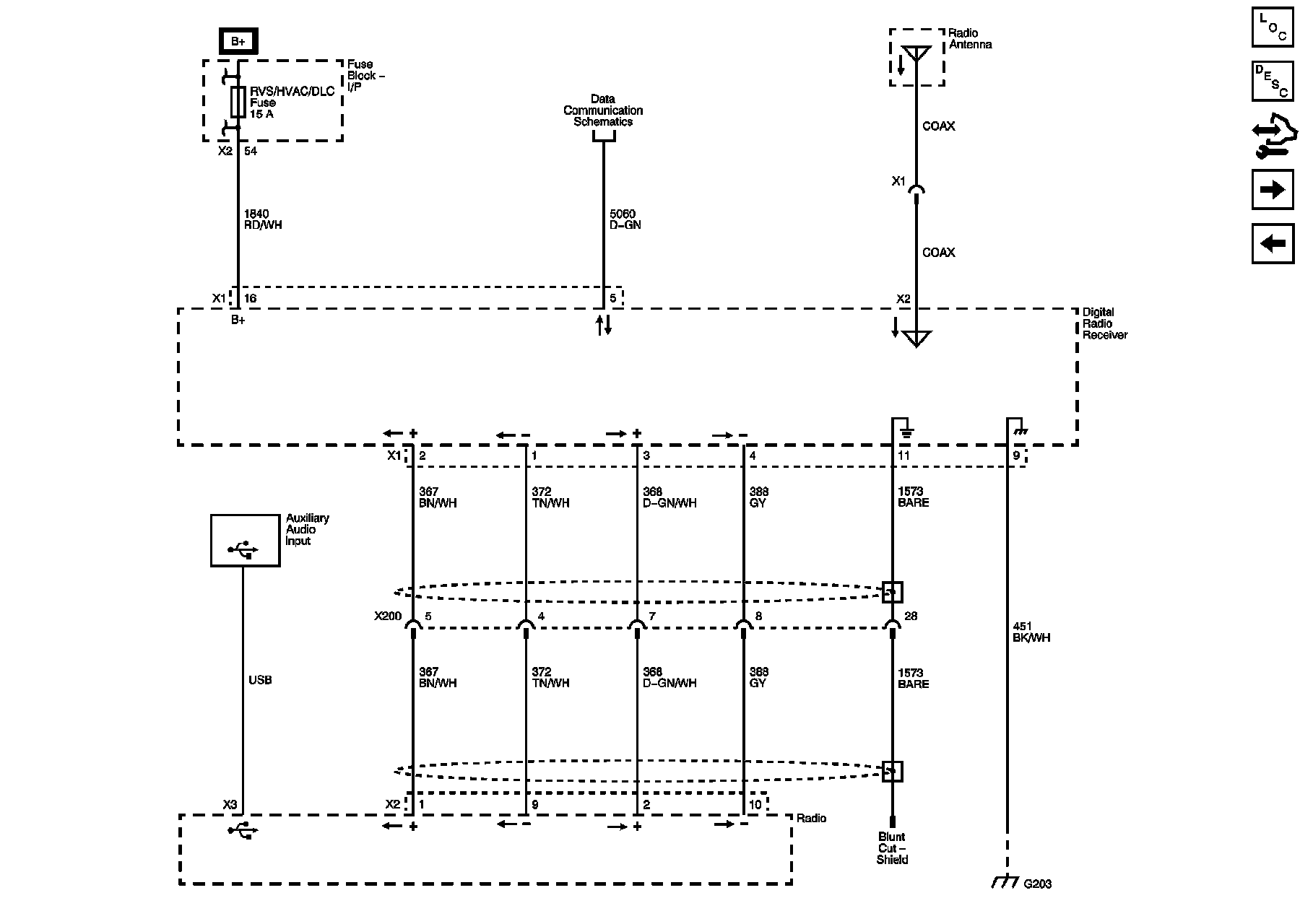

Digital Radio (U2K) and Auxiliary Audio Input

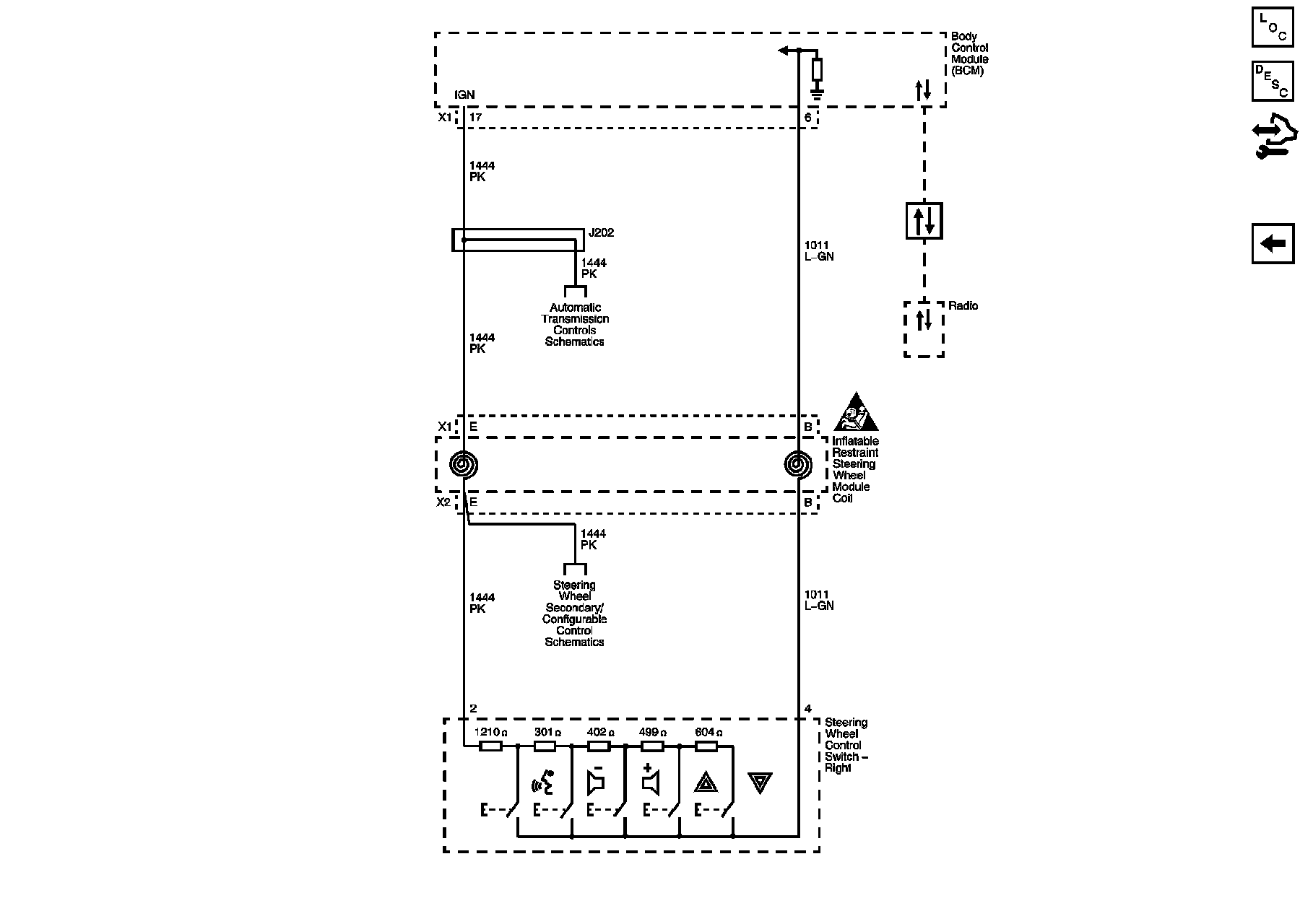

Steering Wheel Controls
