Body Harness- Front Passenger Compartment (without HP5)

Harness Routing Views

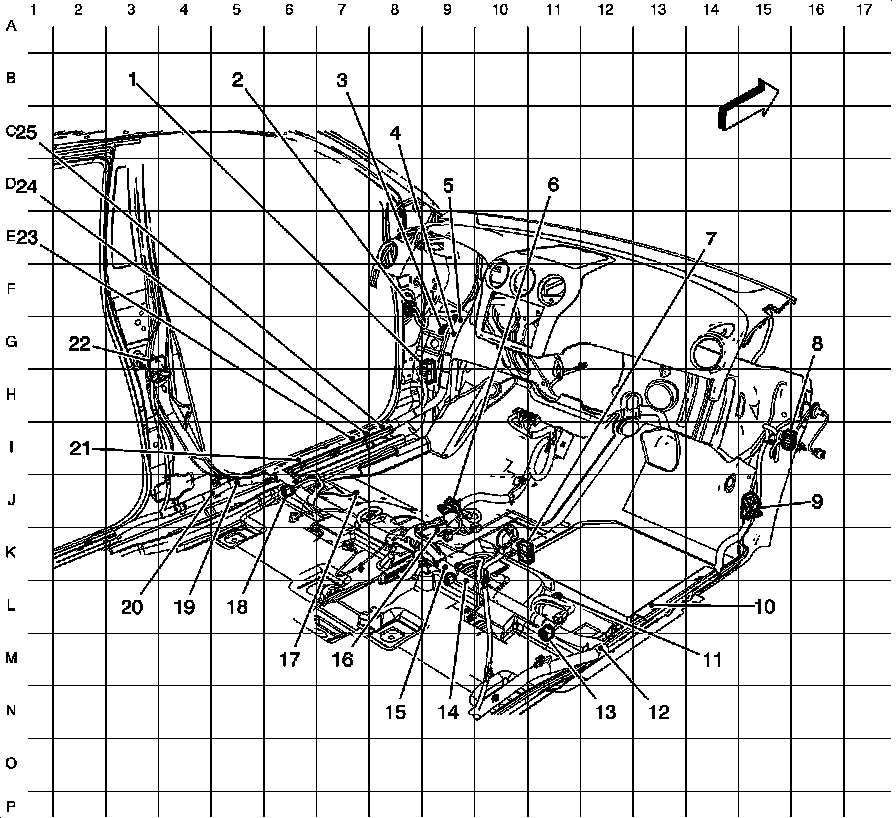

Body Harness- Front Passenger Compartment (without HP5)





1 - X200

2 - X500

3 - G204

4 - J234

5 - J233

6 - X310

7 - X800

8 - X600

9 - X204

10 - JX209

11 - G301

12 - J341

13 - X352 (KA1)

14 - J242

15 - J238

16 - J300

17 - G302

18 - X350 (KA1)

19 - J336

20 - J331

21 - J335

22 - X700

23 - J332

24 - J340

25 - J339
