Body Harness Routing - Engine Compartment and Front Fascia

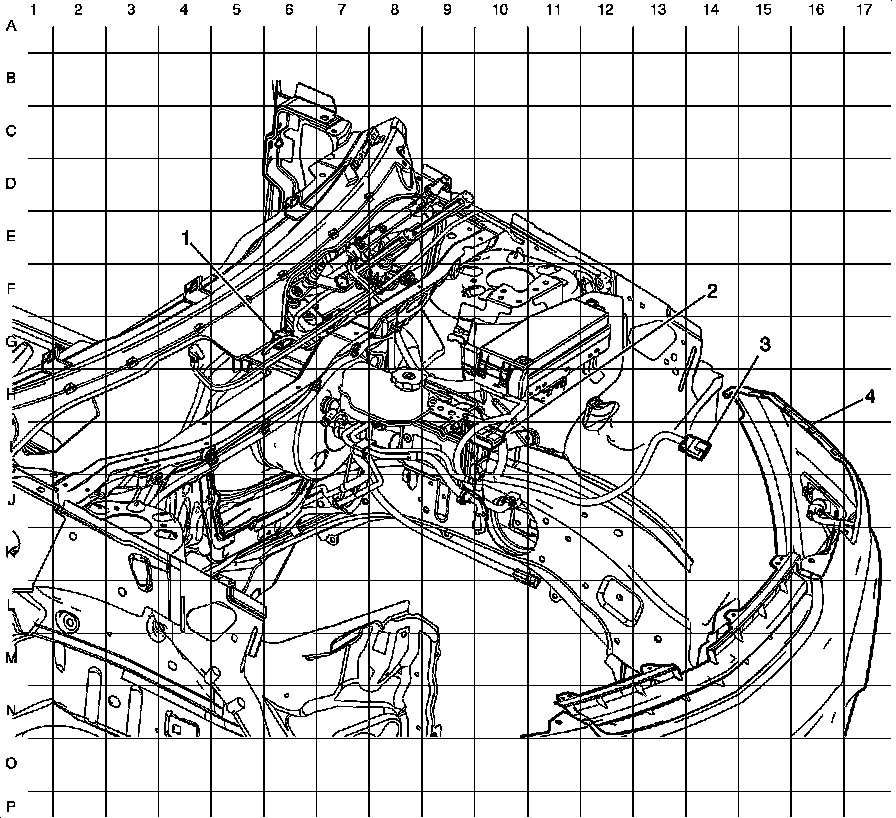

Harness Routing Views

Body Harness Routing - Engine Compartment and Front Fascia





1 - X141 (XA7)

2 - X105

3 - X102

4 - Front Fascia
