Security Indicator Malfunction

Security Indicator Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

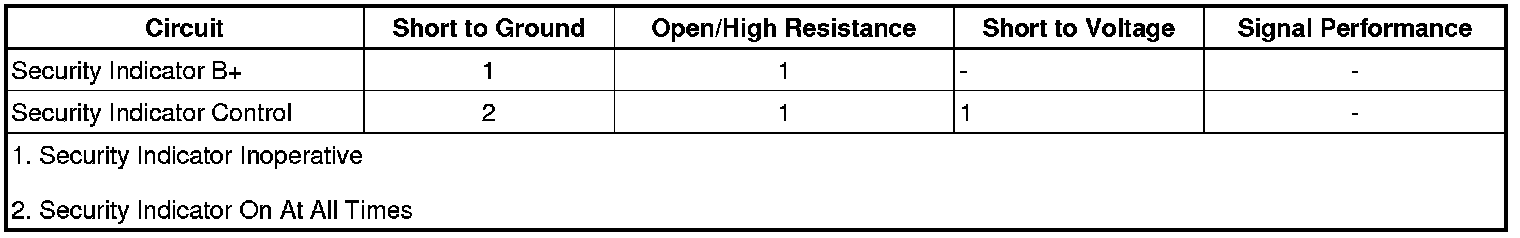

Diagnostic Fault Information






Circuit/System Description

The security LED is controlled by the body control module (BCM) based on commands from the theft deterrent system. With the ignition OFF, the security indicator is commanded by the theft deterent system.

Reference Information

Schematic Reference

Theft Deterrent System Schematics Theft Deterrent System Schematics

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (MN5)

Description and Operation

Theft Systems Description and Operation Theft Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Programming and Relearning for scan tool information

Circuit/System Verification

Ignition ON, command the security LED ON and OFF with a scan tool. The security LED should turn ON and OFF when changing between the commanded states.

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the clock.

2. Verify a test lamp illuminates between the B+ circuit terminal 2 and ground.

• If the test lamp does not illuminate, test the B+ circuit for an open/high resistance. If the circuit fuse is open, test the B+ circuit for a short to ground.

3. Connect a test lamp between the control circuit terminal 1 and the B+ circuit terminal 1.

4. Command the security LED ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to ground. If the circuit tests normal, replace the BCM.

• If the test lamp is always OFF, test the control circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

5. If all circuits test normal, replace the clock.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

Control Module References Programming and Relearning for BCM replacement, setup, and programming
