K - O
Component Connector End Views
Knock Sensor (KS) 1
Knock Sensor (KS) 2

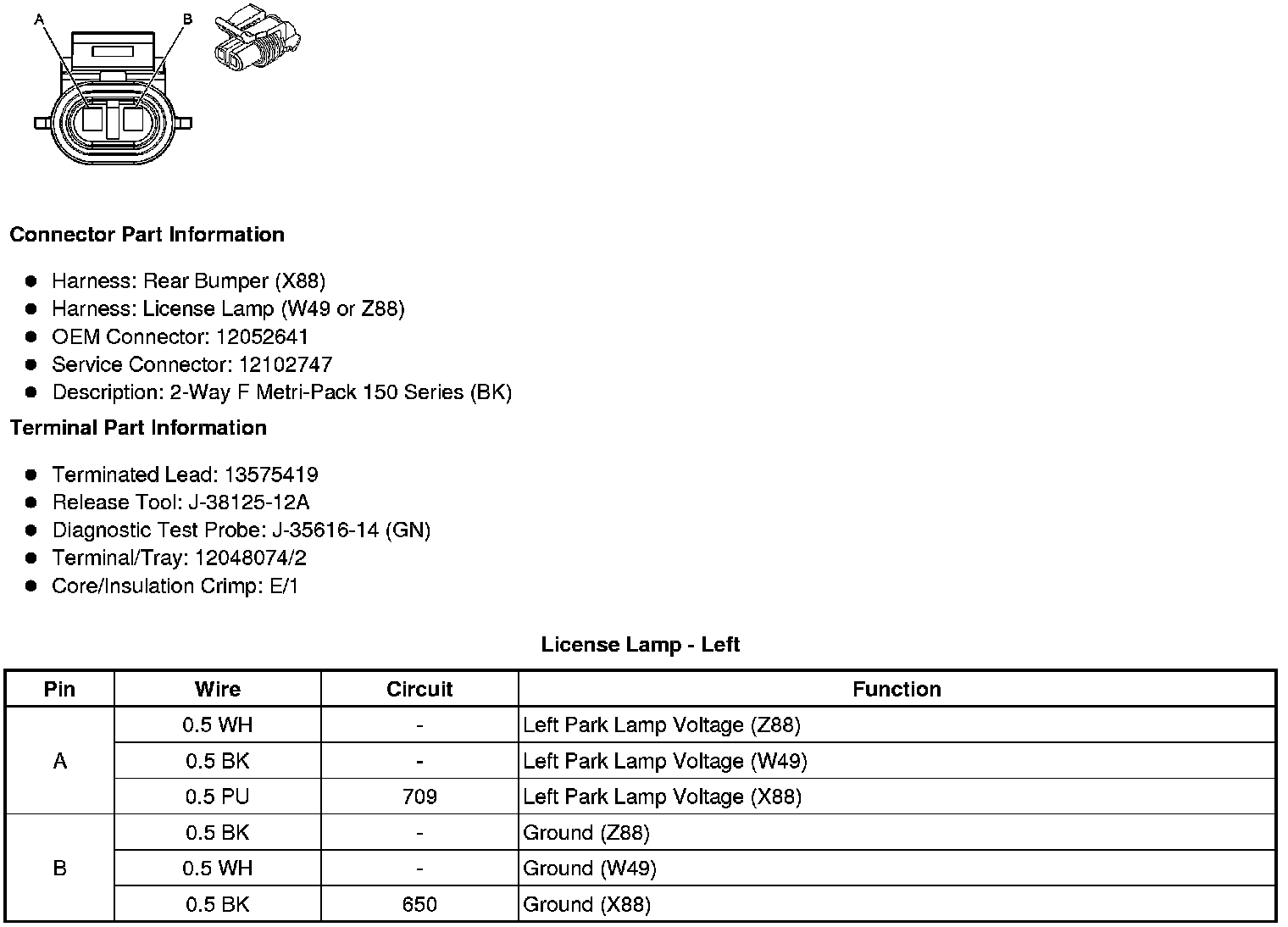

License Lamp - Left

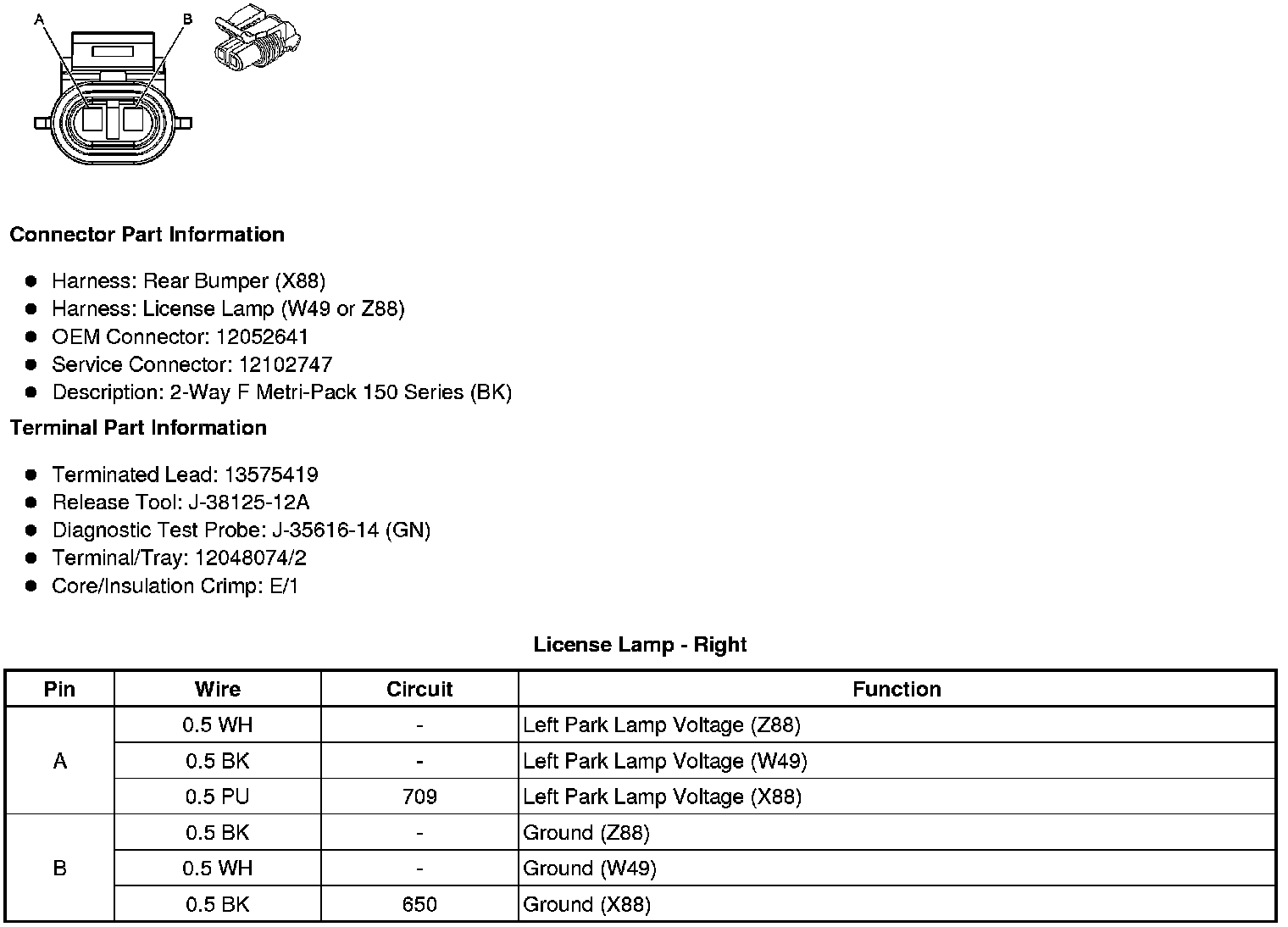

License Lamp - Right

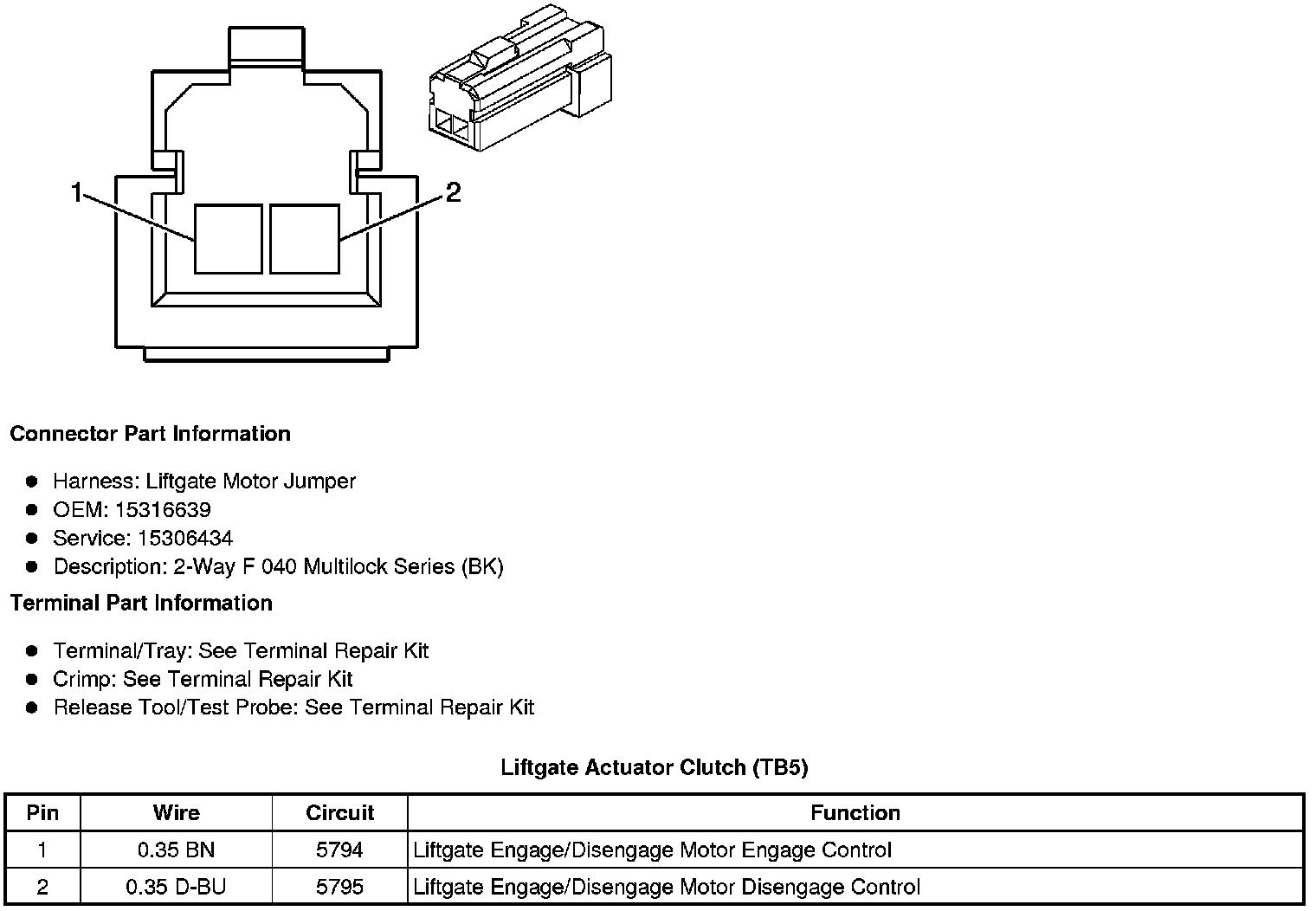

Liftgate Actuator Clutch (TB5)
Liftgate Actuator Switch (TB5)
Liftgate Control Switch - Exterior
Liftgate Control Switch - Interior (TB5)
Liftgate Courtesy Lamp - Left
Liftgate Courtesy Lamp - Right

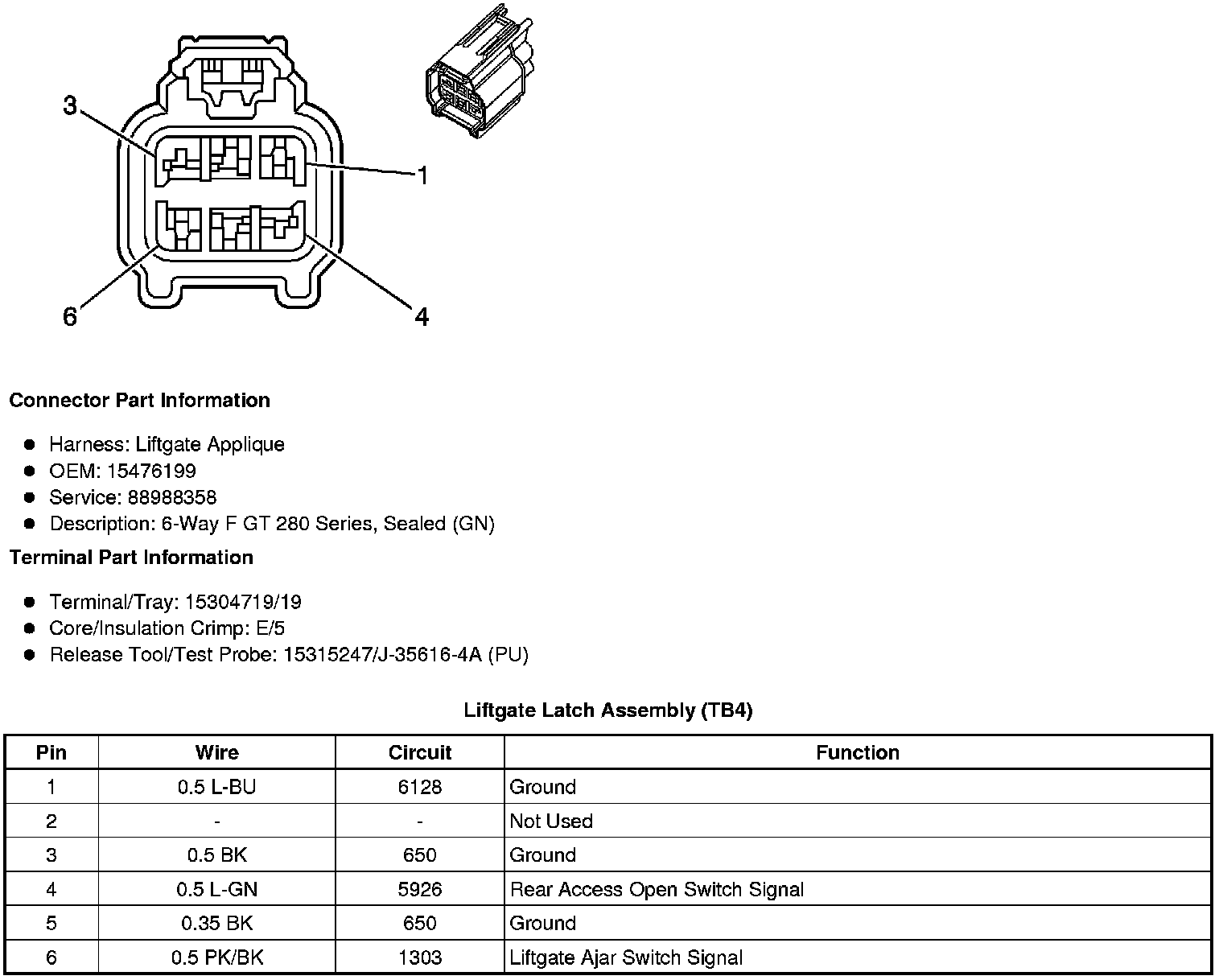

Liftgate Latch Assembly (TB4)

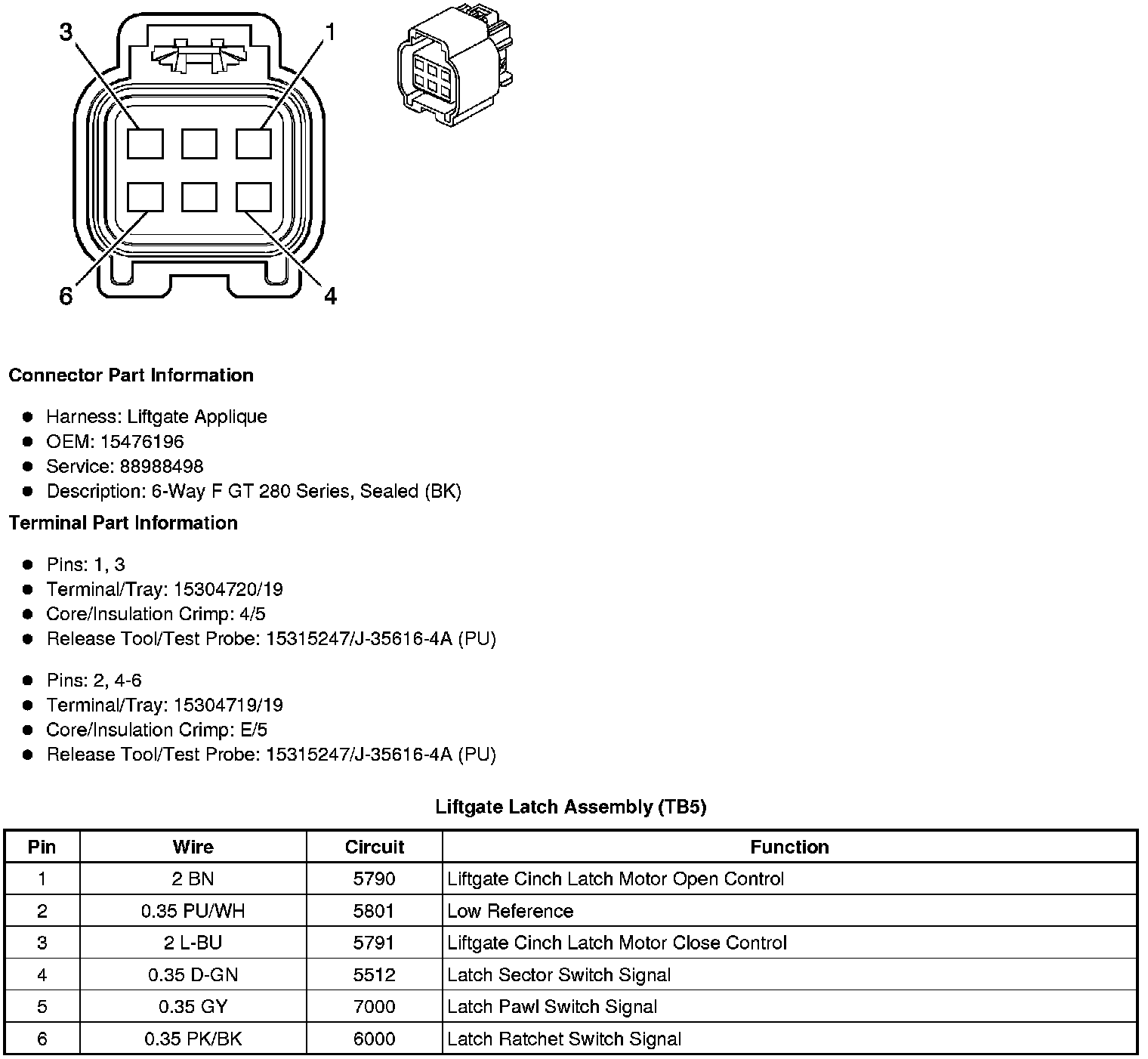

Liftgate Latch Assembly (TB5)
Liftgate Module (LGM) X1 (TB5)
Liftgate Module (LGM) X2 (TB5)
Liftgate Module (LGM) X3 (TB5)
Liftgate Object Sensor - Left (TB5)
Liftgate Object Sensor - Right (TB5)
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Memory Seat Adjuster Switch - Driver (A45)
Memory Seat Module (MSM) X1 (A45)
Memory Seat Module (MSM) X2 (A45)
Memory Seat Module (MSM) X3 (A45)
Memory Seat Module (MSM) X4 (A45)
Memory Seat Module (MSM) X5 (A45)
Memory Seat Module (MSM) X6 (A45)
Memory Seat Module (MSM) X7 (A45)

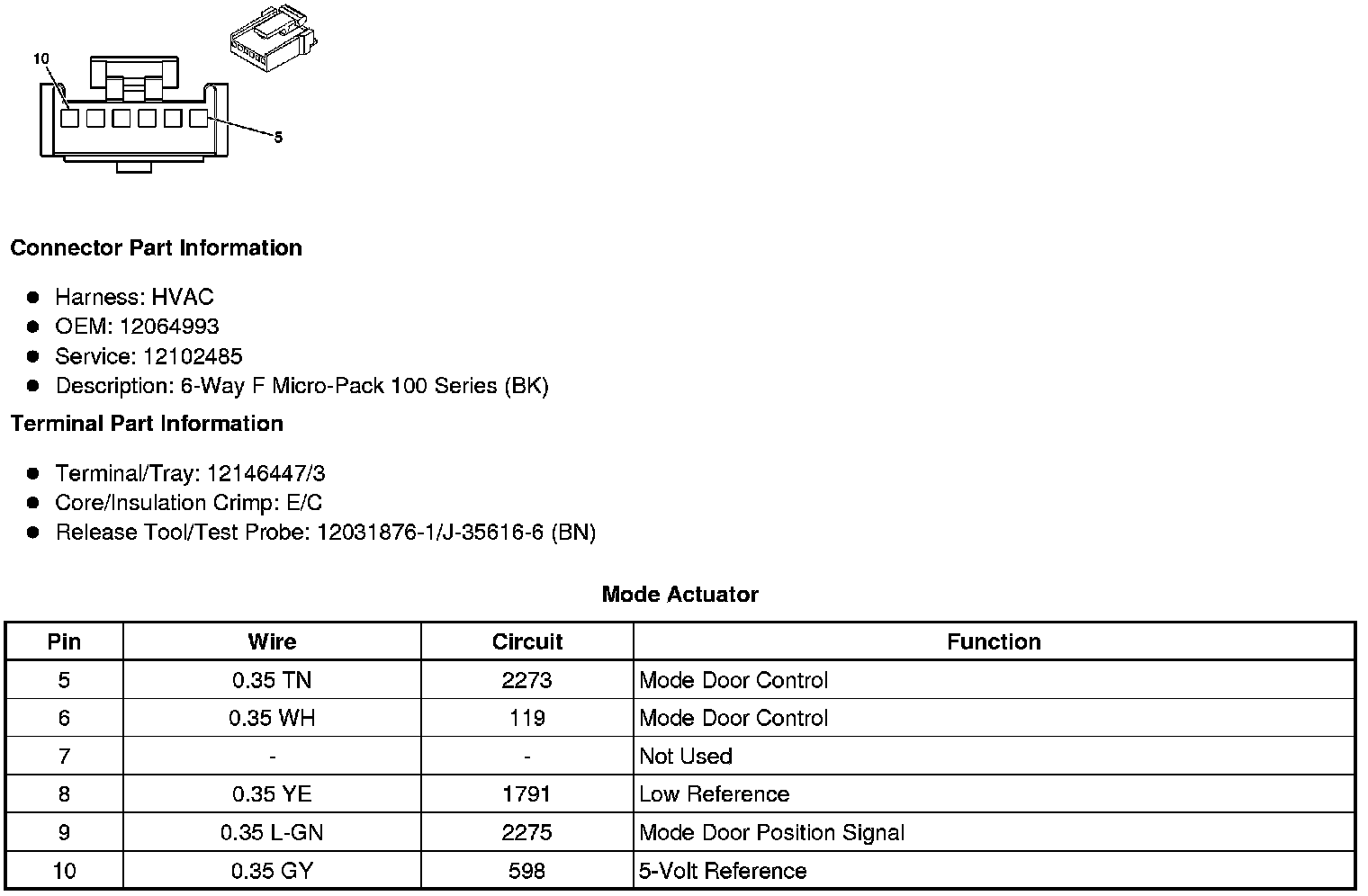

Mode Actuator

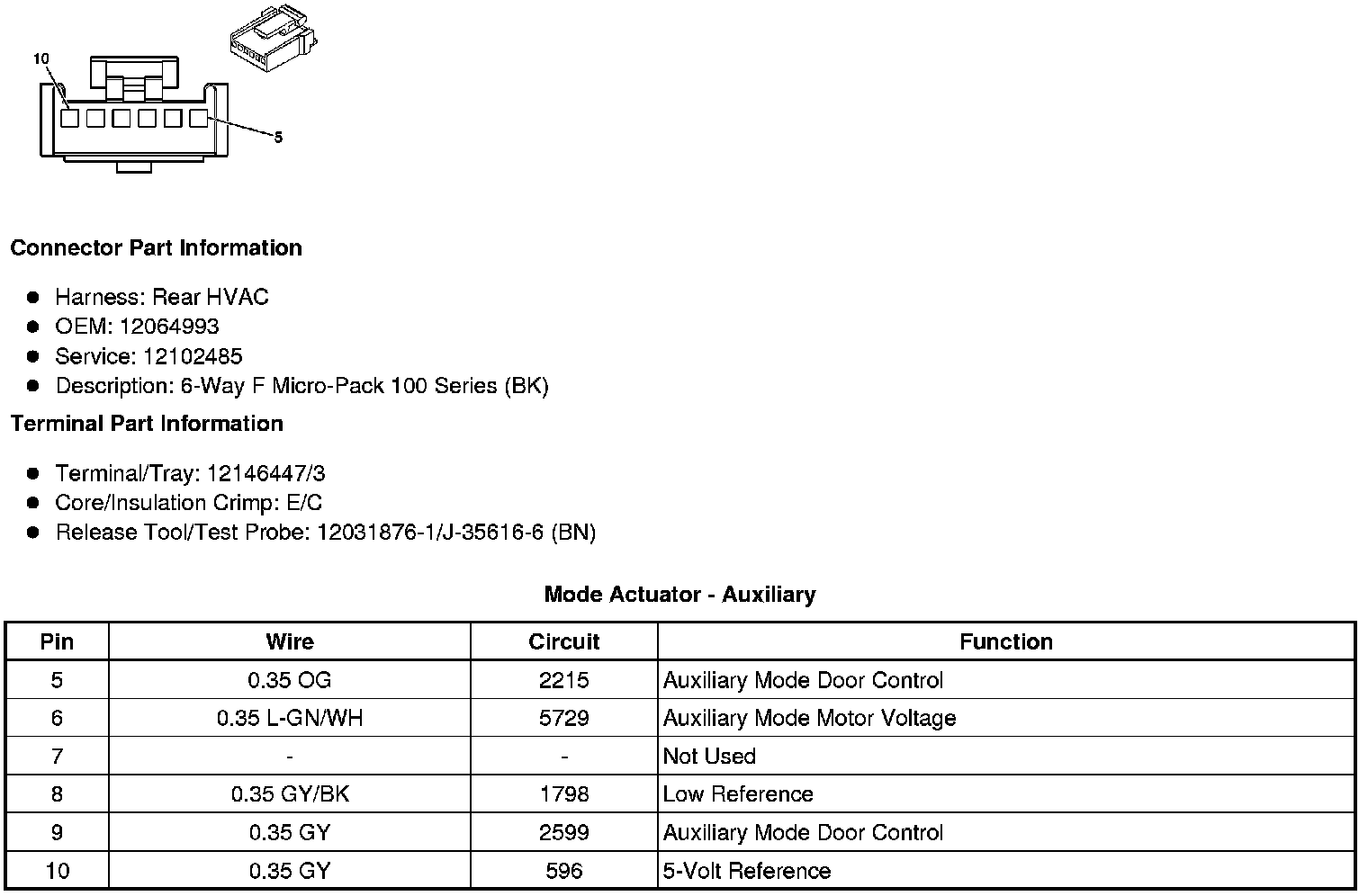

Mode Actuator - Auxiliary
Multifunction Switch - I/P
Object Alarm Module X1 (UD7)
Object Alarm Module X2 (UD7)

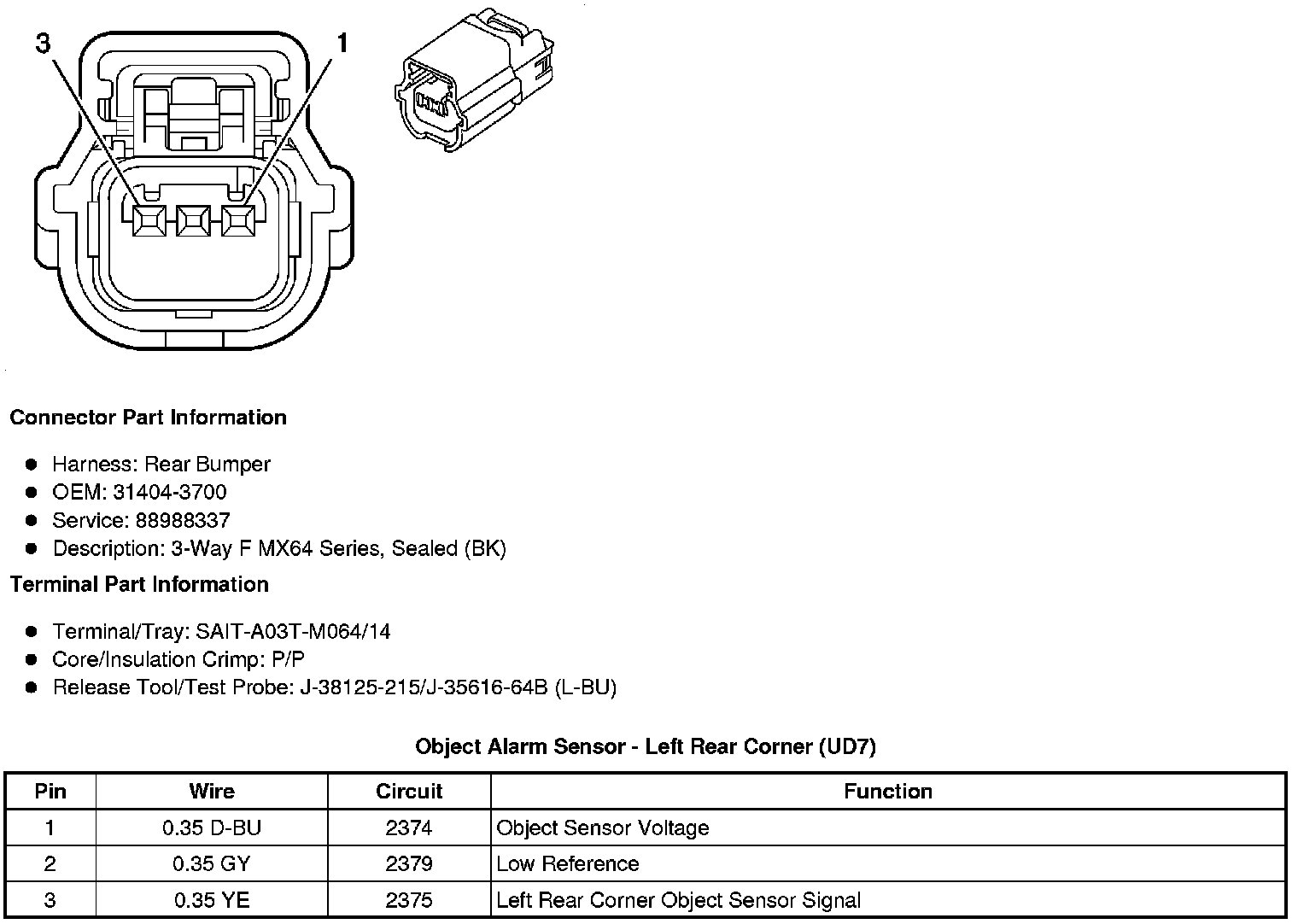

Object Alarm Sensor - Left Rear Corner (UD7)
Object Alarm Sensor - Left Rear Middle (UD7)
Object Alarm Sensor - Right Rear Corner (UD7)
Object Alarm Sensor - Right Rear Middle (UD7)

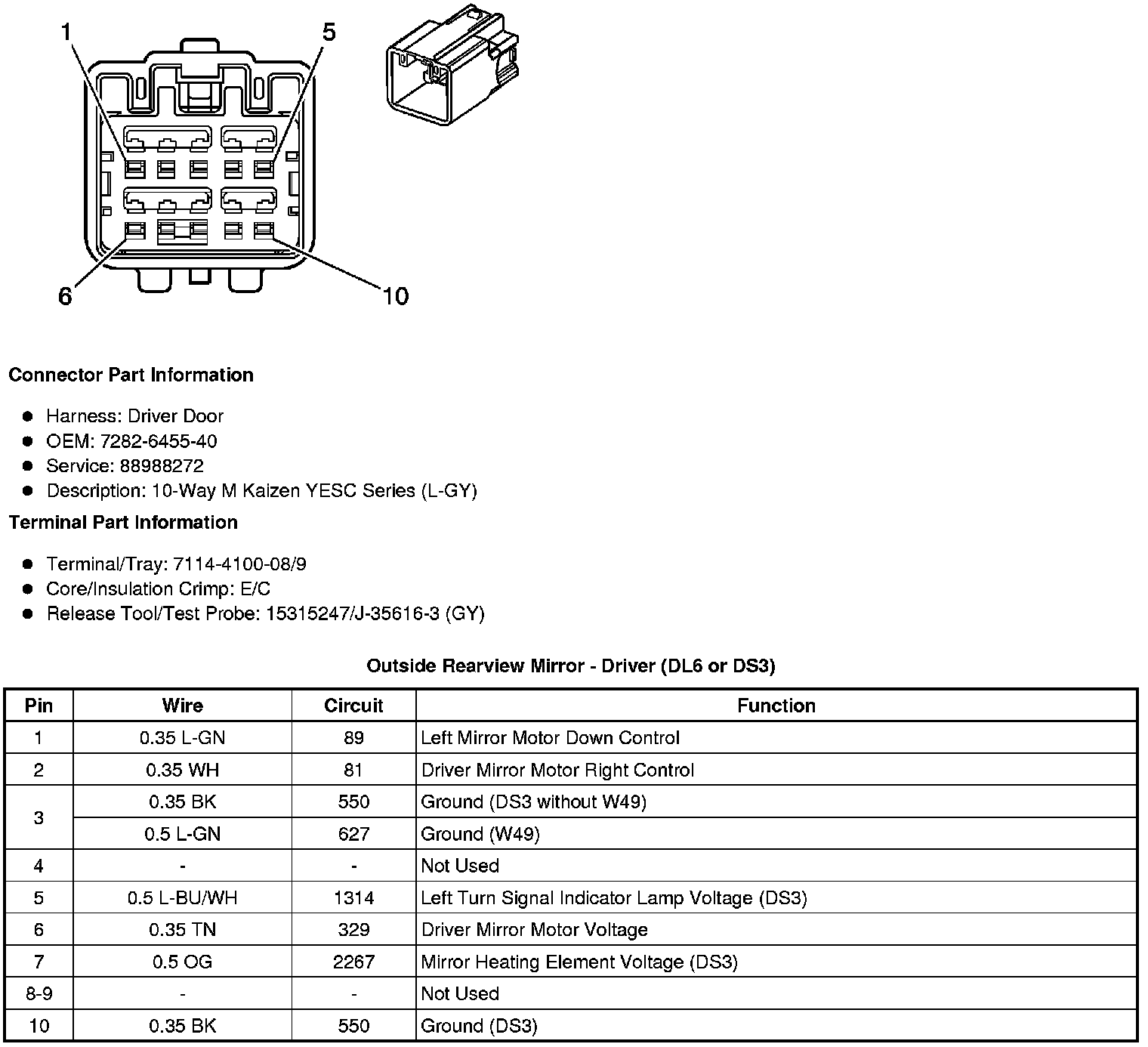

Outside Rearview Mirror - Driver (DL6 or DS3)

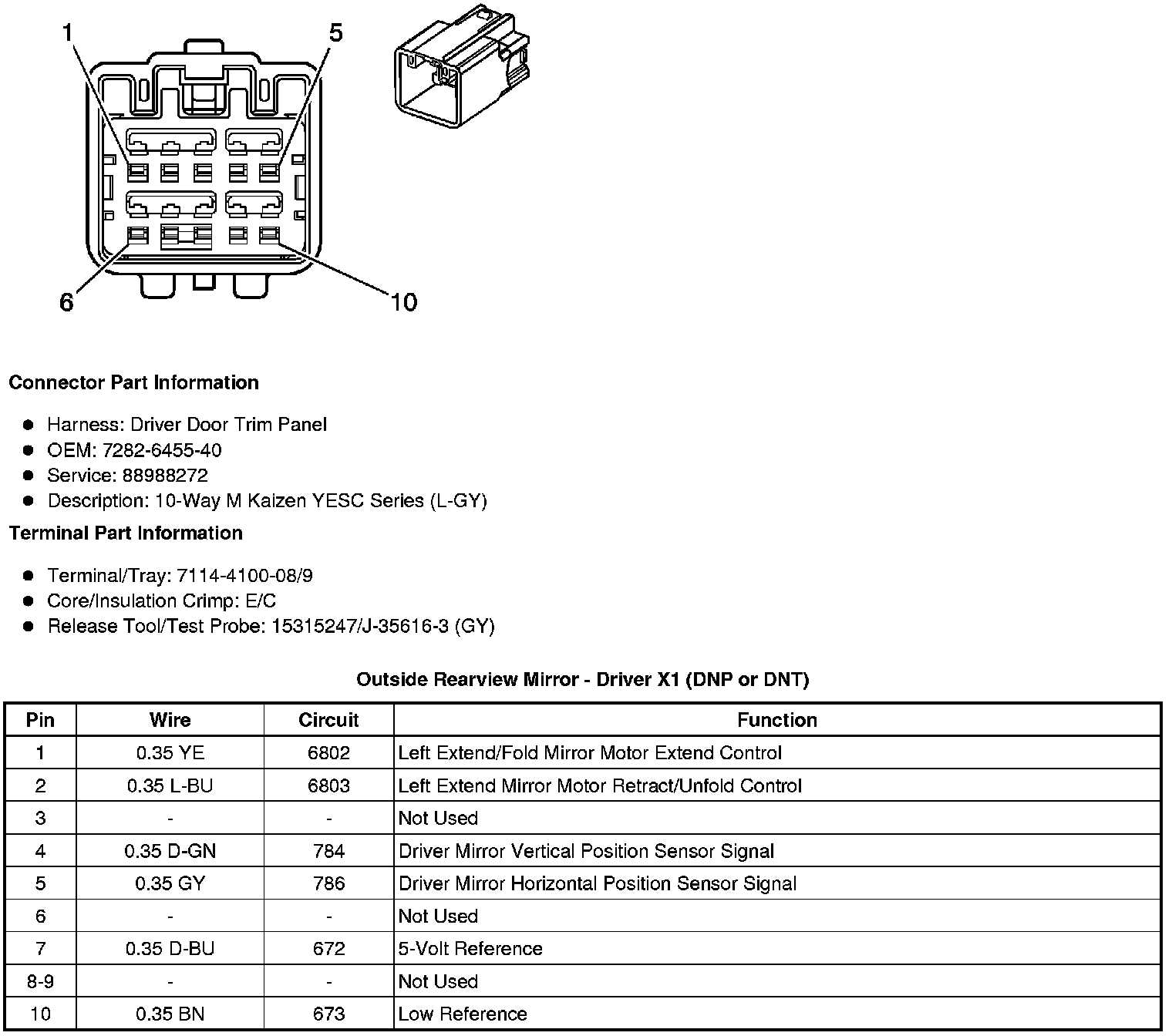

Outside Rearview Mirror - Driver X1 (DNP or DNT)

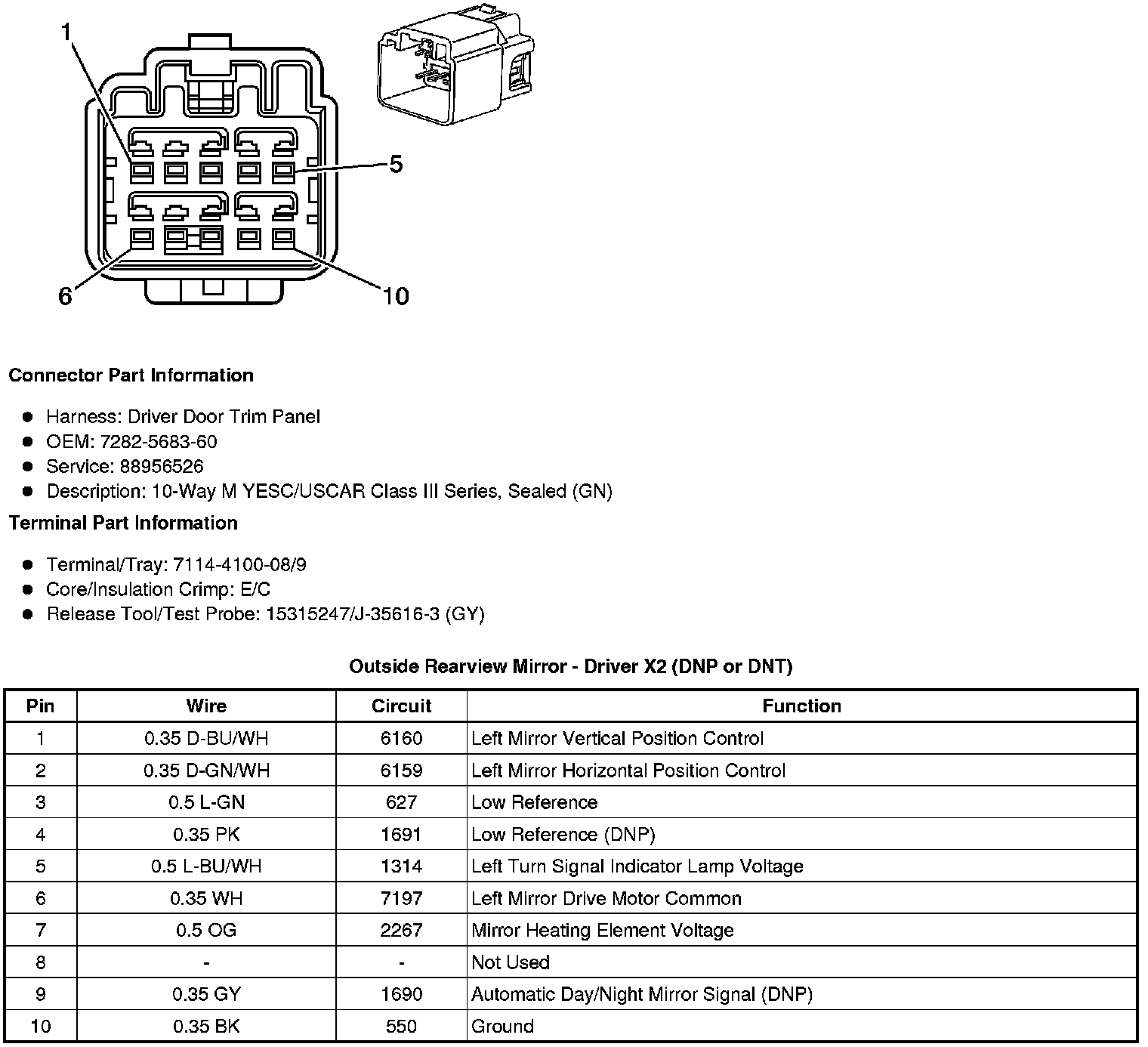

Outside Rearview Mirror - Driver X2 (DNP or DNT)
Outside Rearview Mirror - Passenger (DL6 or DS3)

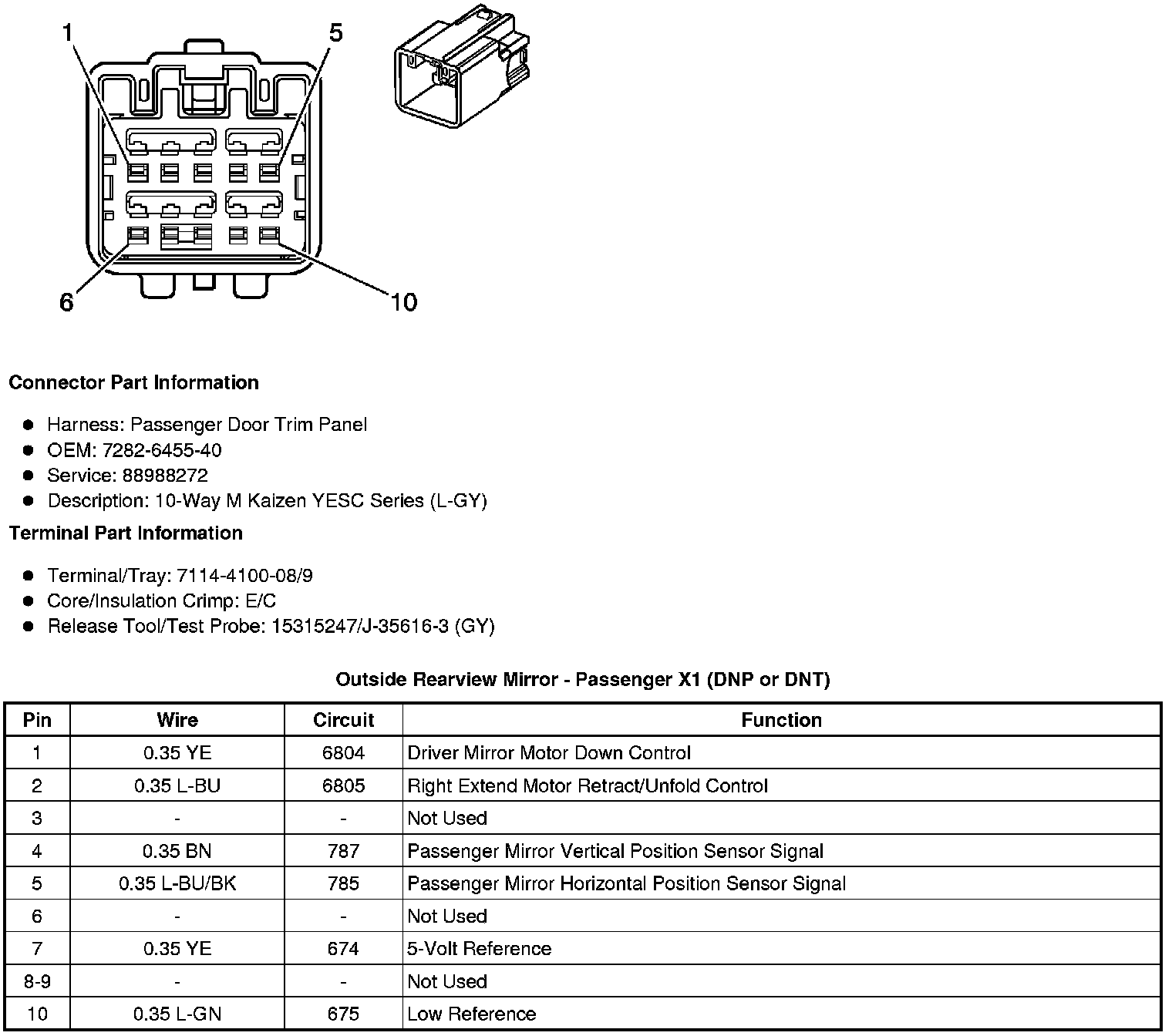

Outside Rearview Mirror - Passenger X1 (DNP or DNT)

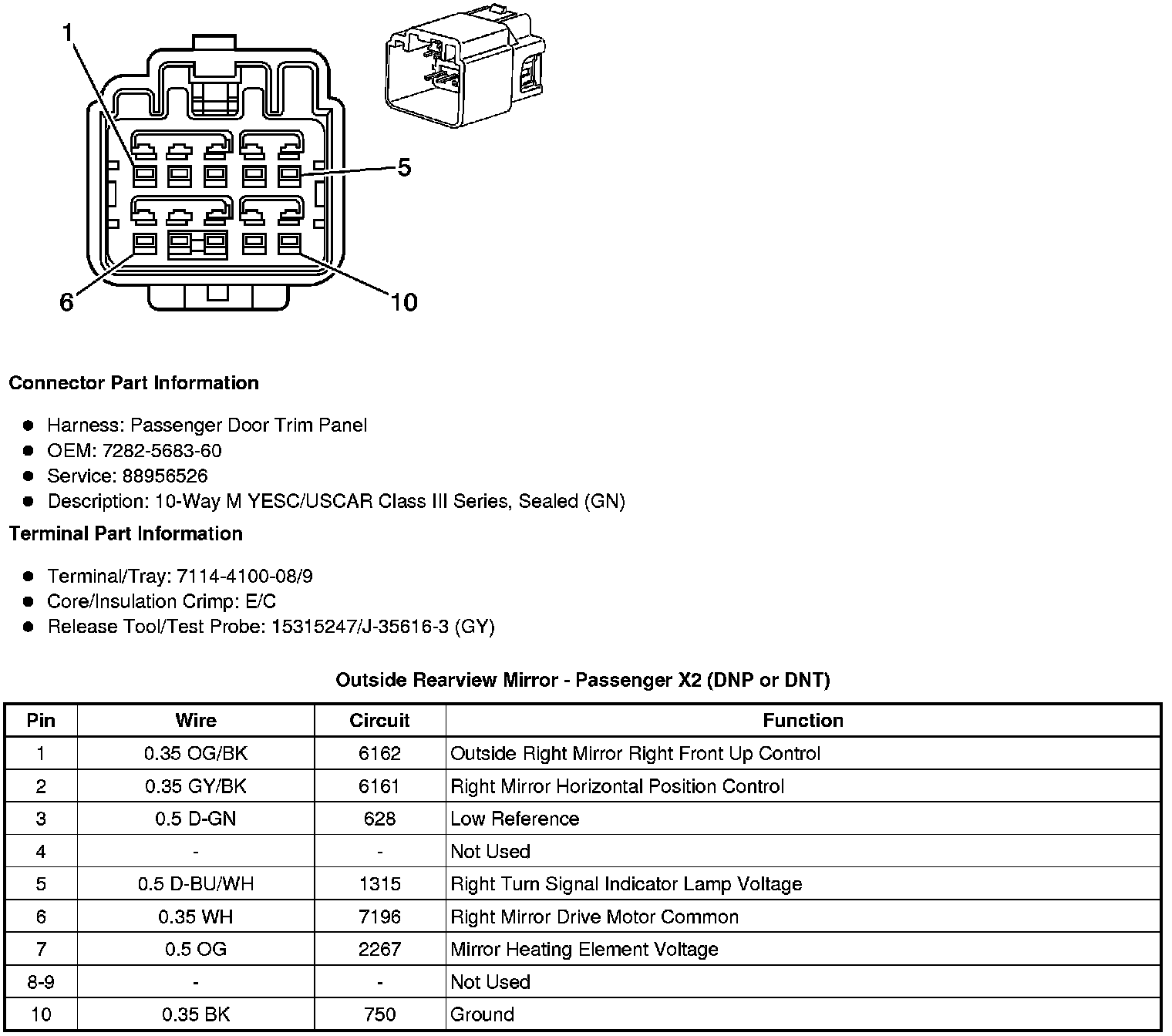

Outside Rearview Mirror - Passenger X2 (DNP or DNT)
Outside Rearview Mirror Switch (without AXE)

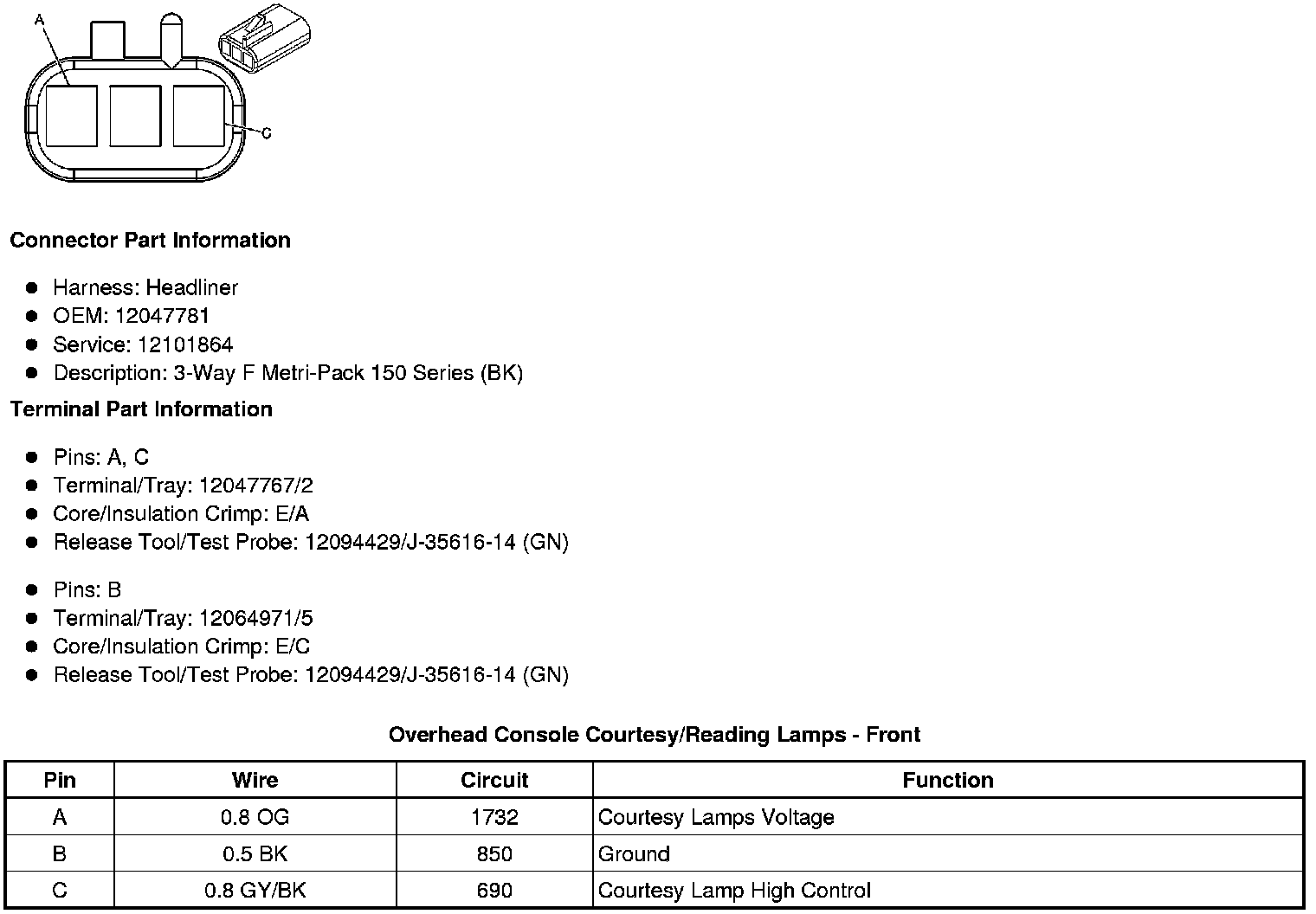

Overhead Console Courtesy/Reading Lamps - Front
