Connector Views




Component Connector End Views

Accessory Power Outlet - 110V AC (KV1) X1

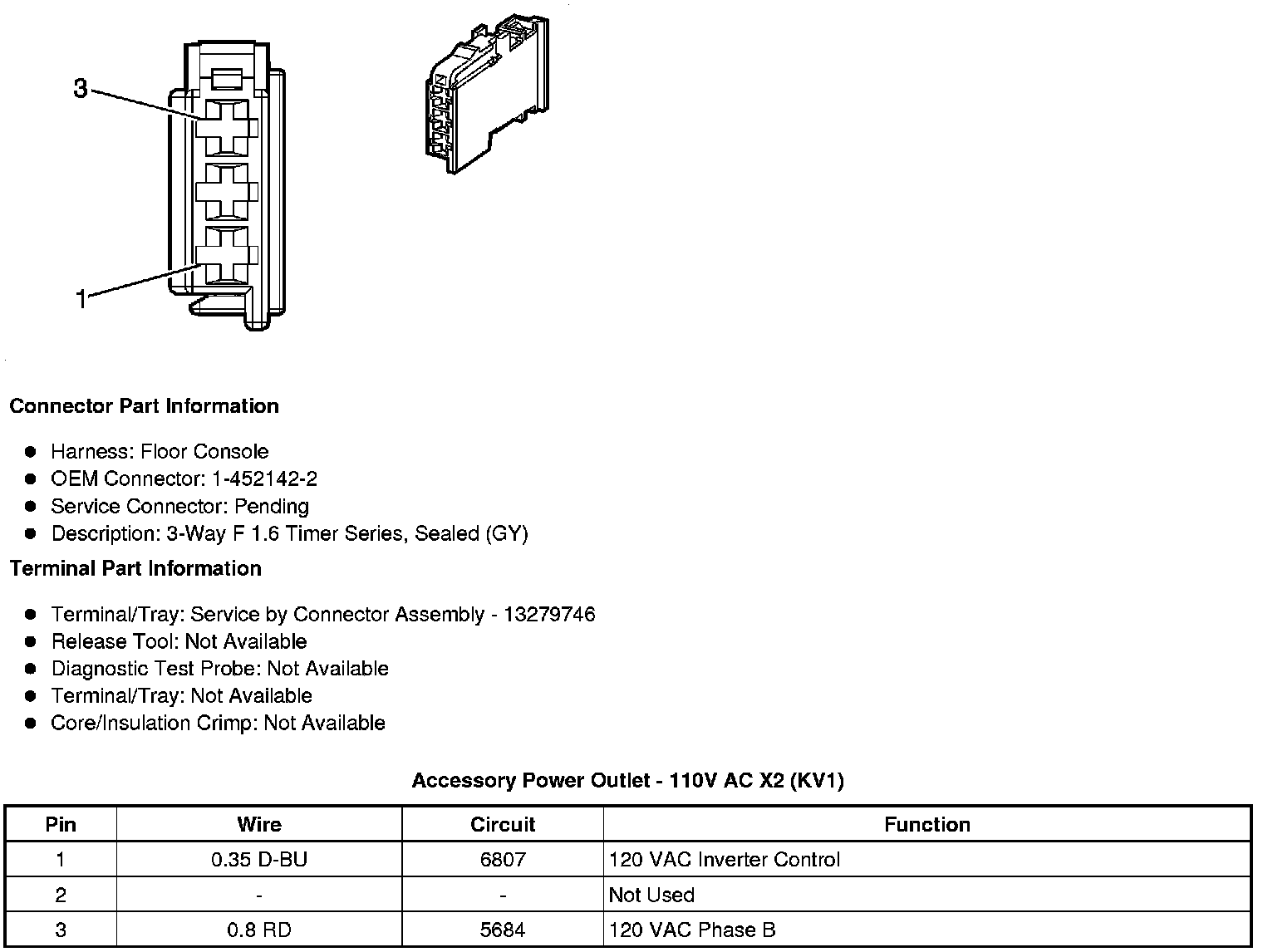

Accessory Power Outlet - 110V AC X2 (KV1)

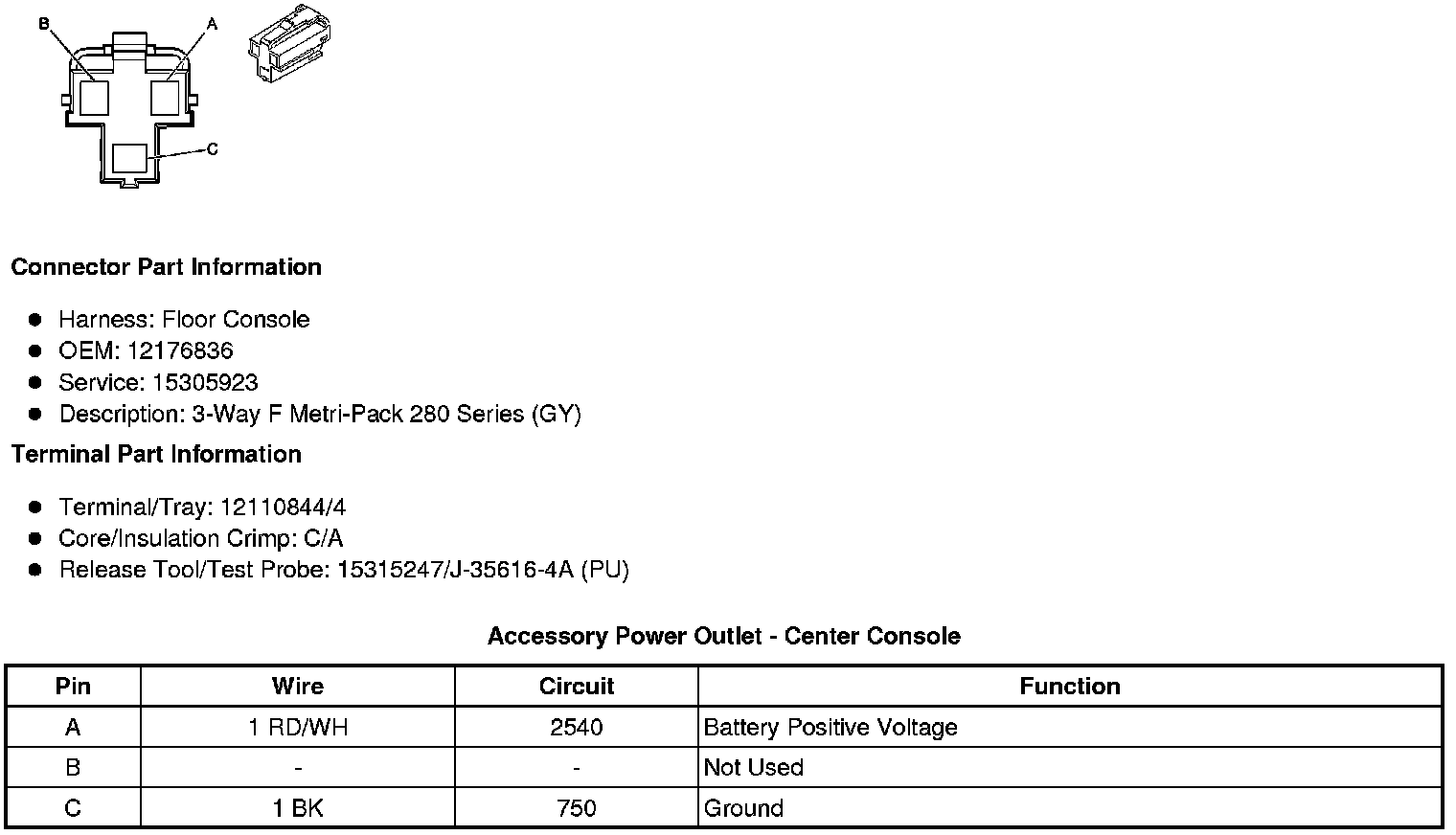

Accessory Power Outlet - Center Console

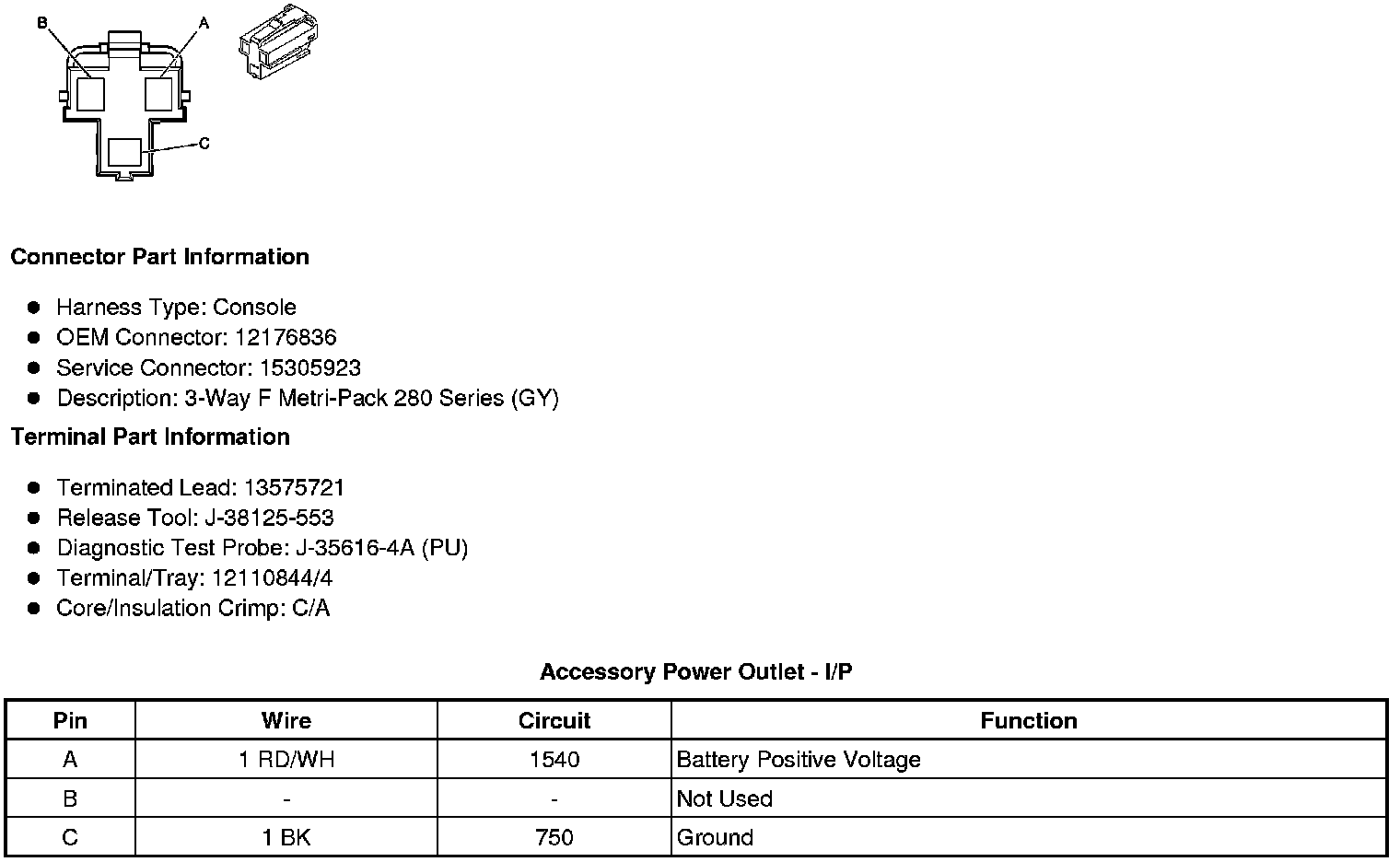

Accessory Power Outlet - I/P

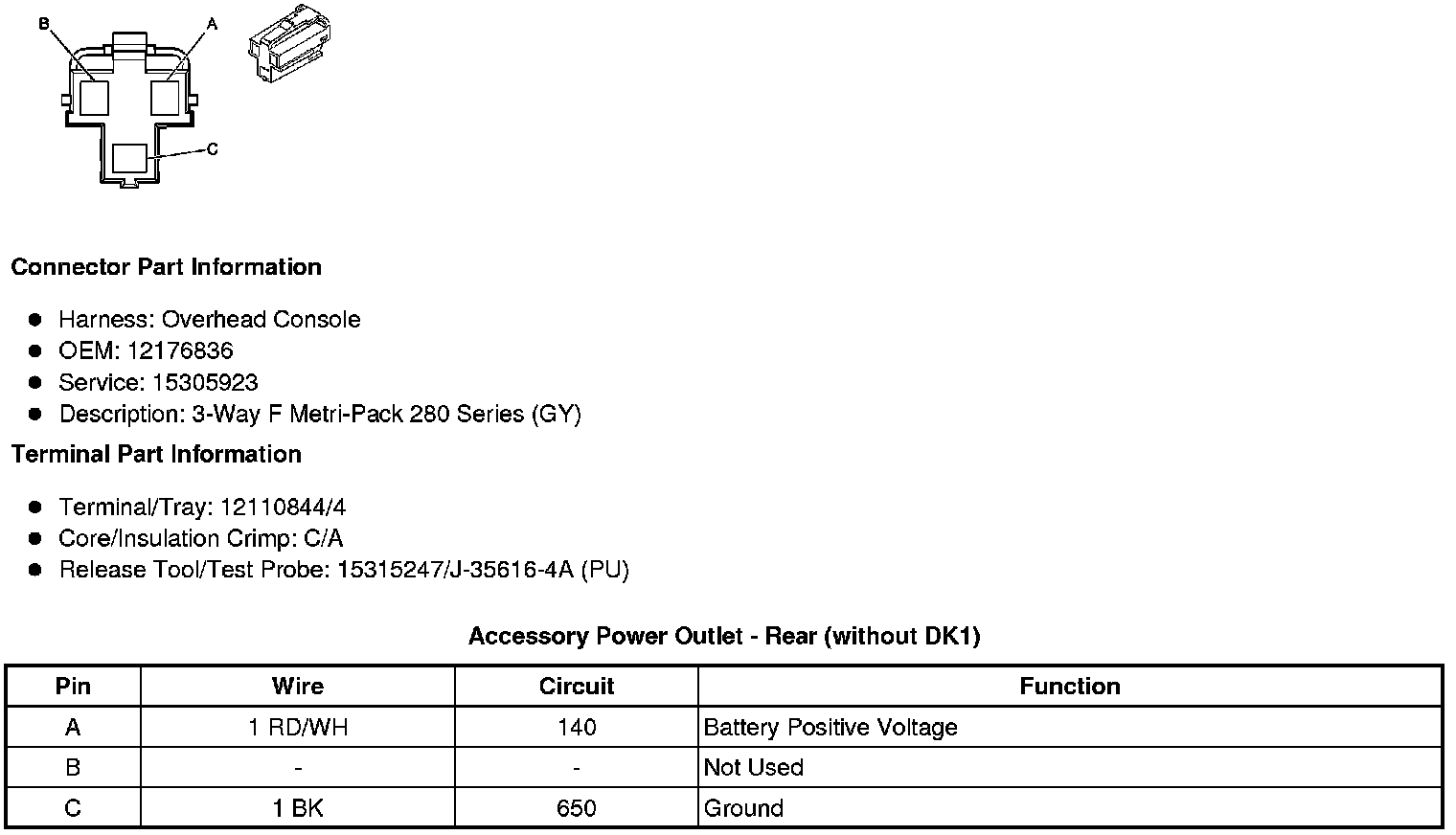

Accessory Power Outlet - Rear (without DK1)

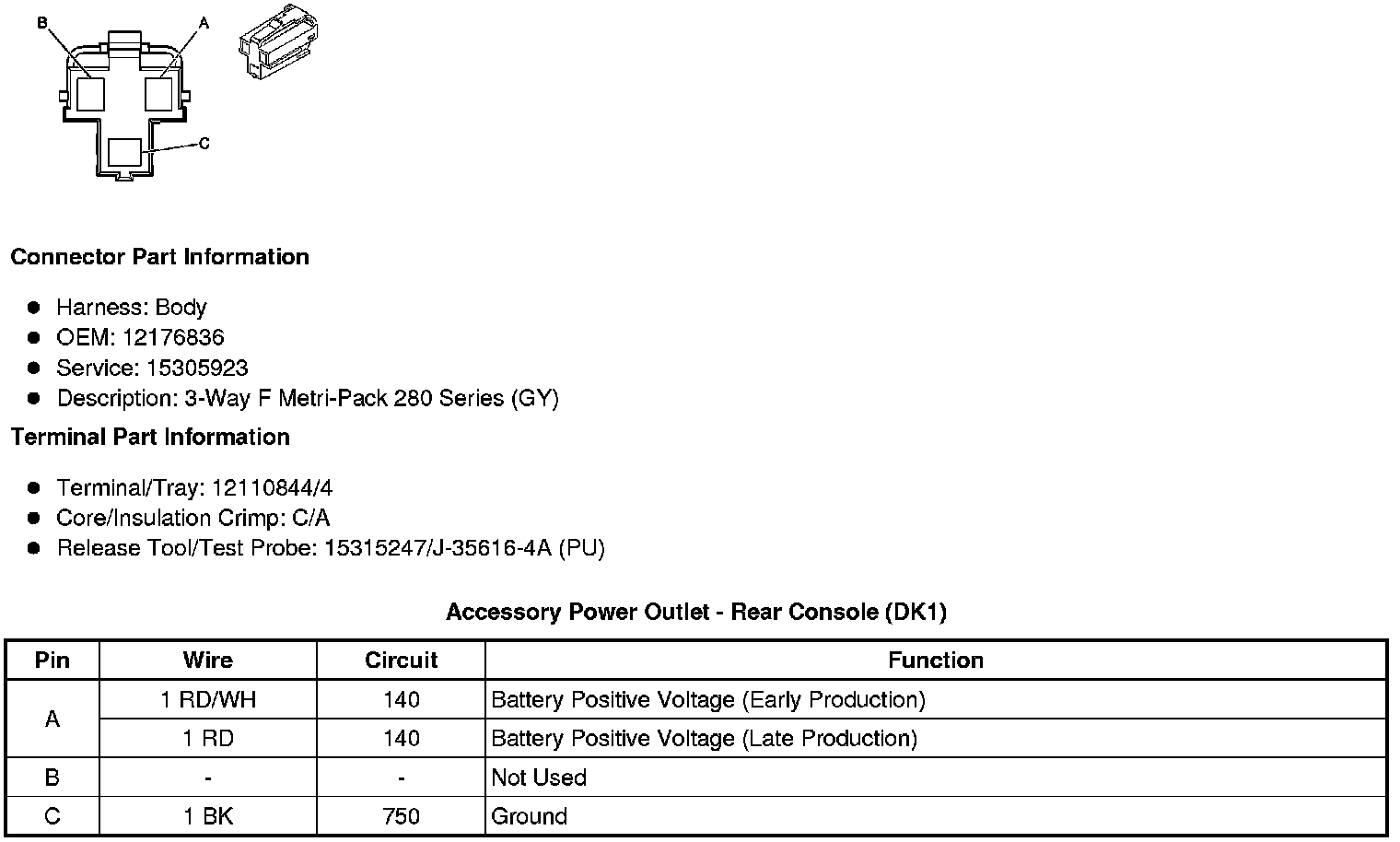

Accessory Power Outlet - Rear Console (DK1)
