Seat Position Sensor: Diagrams




Component Connector End Views

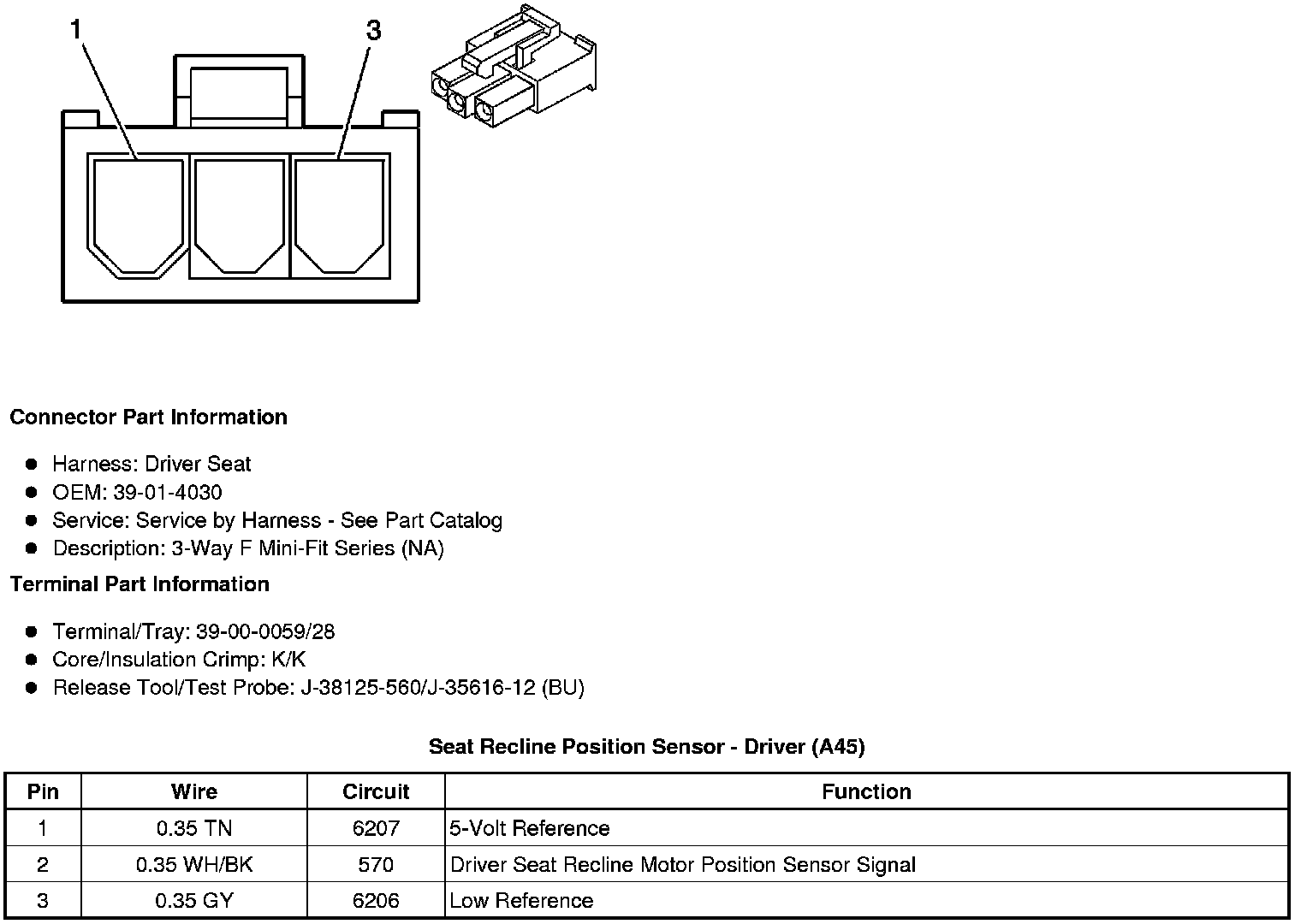

Seat Recline Position Sensor - Driver (A45)
