Variable Valve Timing Solenoid: Diagrams




Component Connector End Views

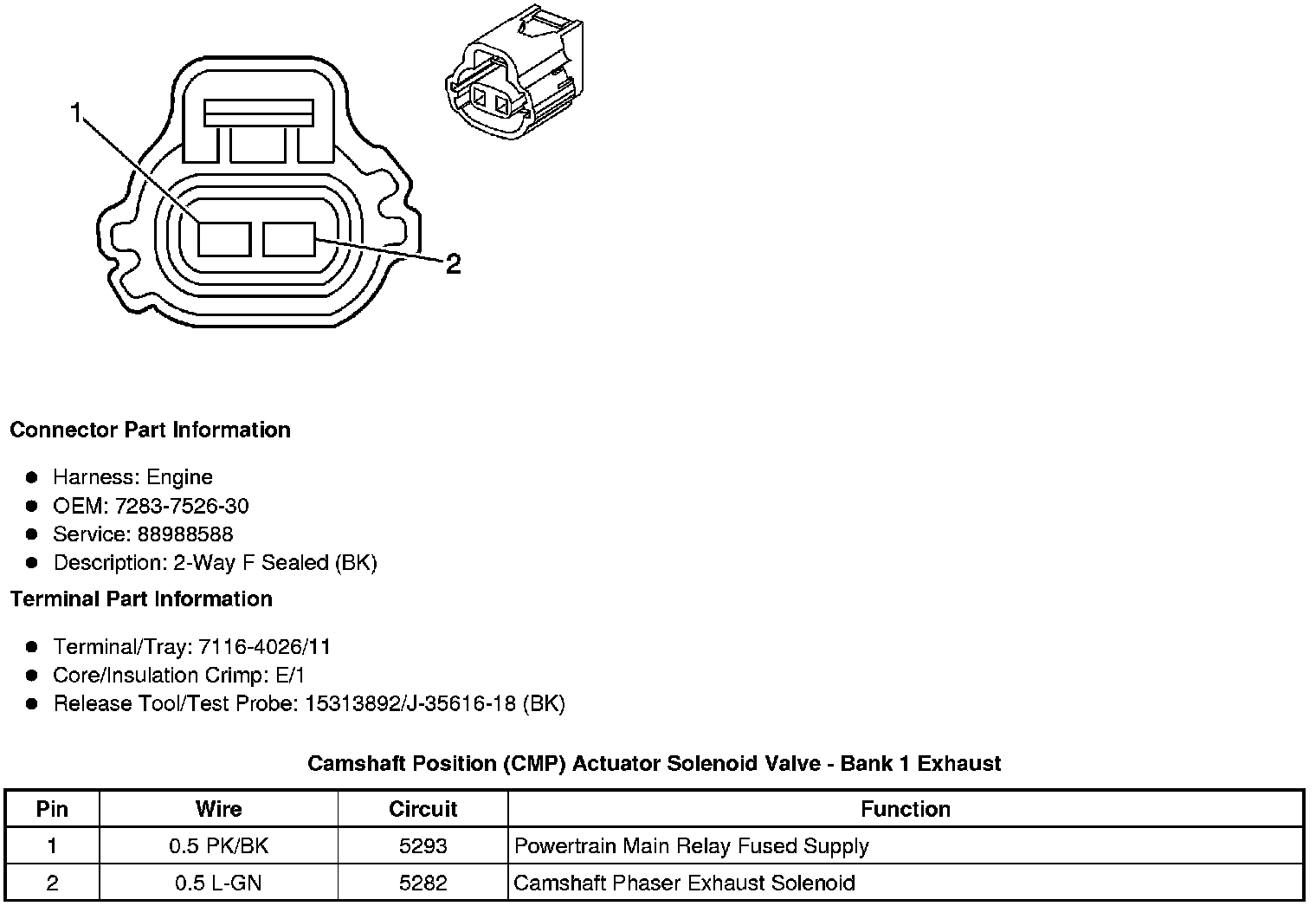

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust

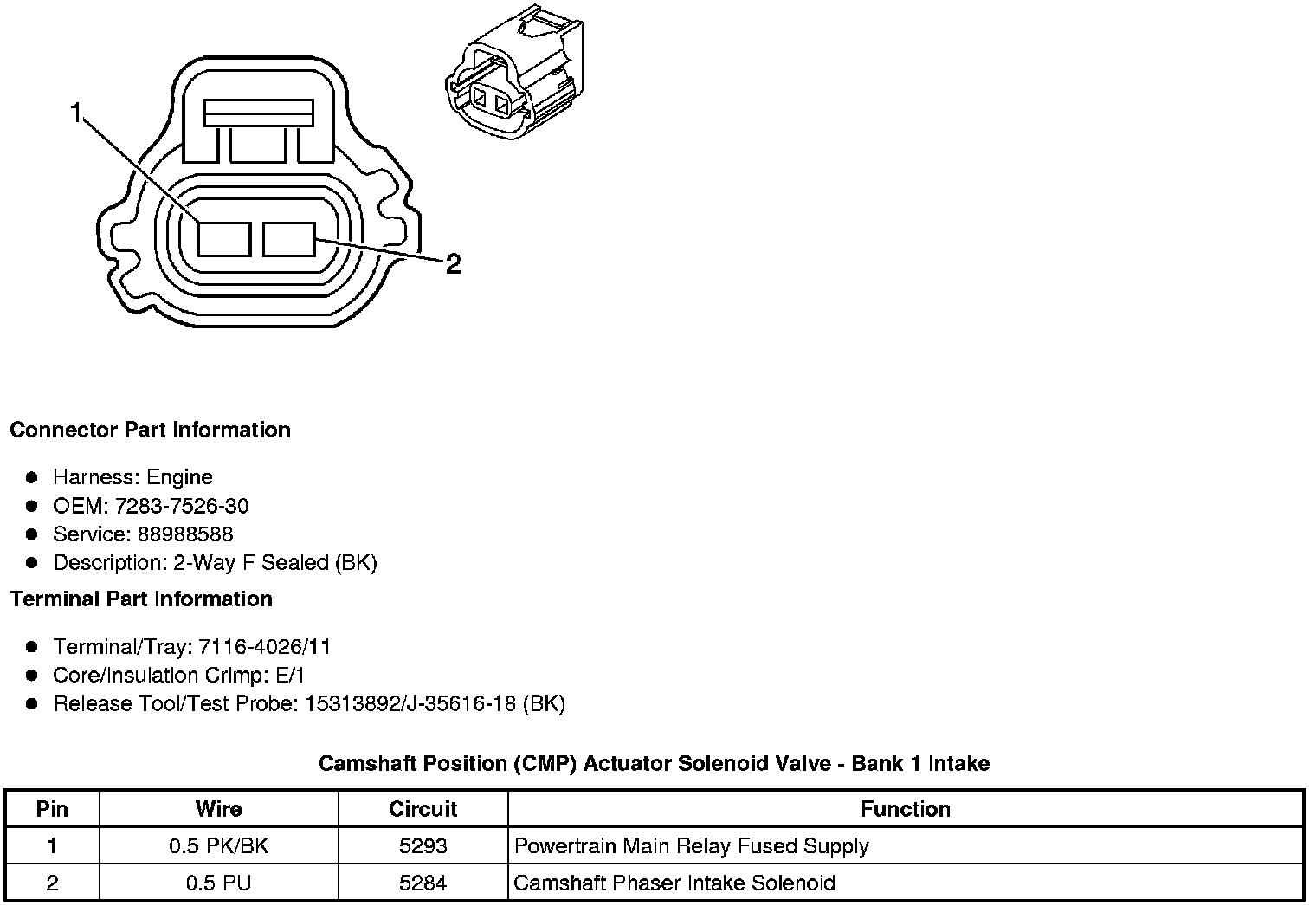

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake

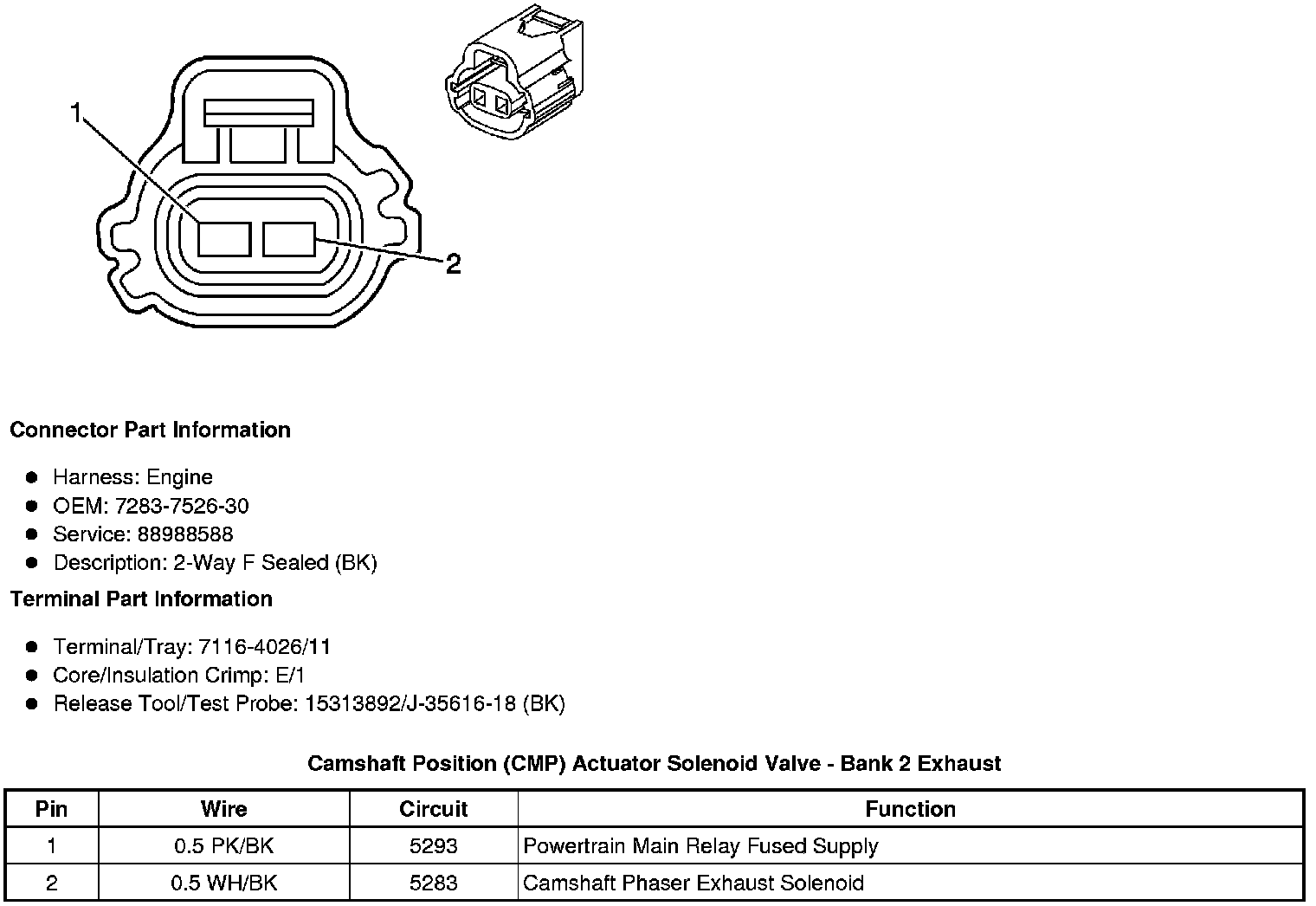

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust

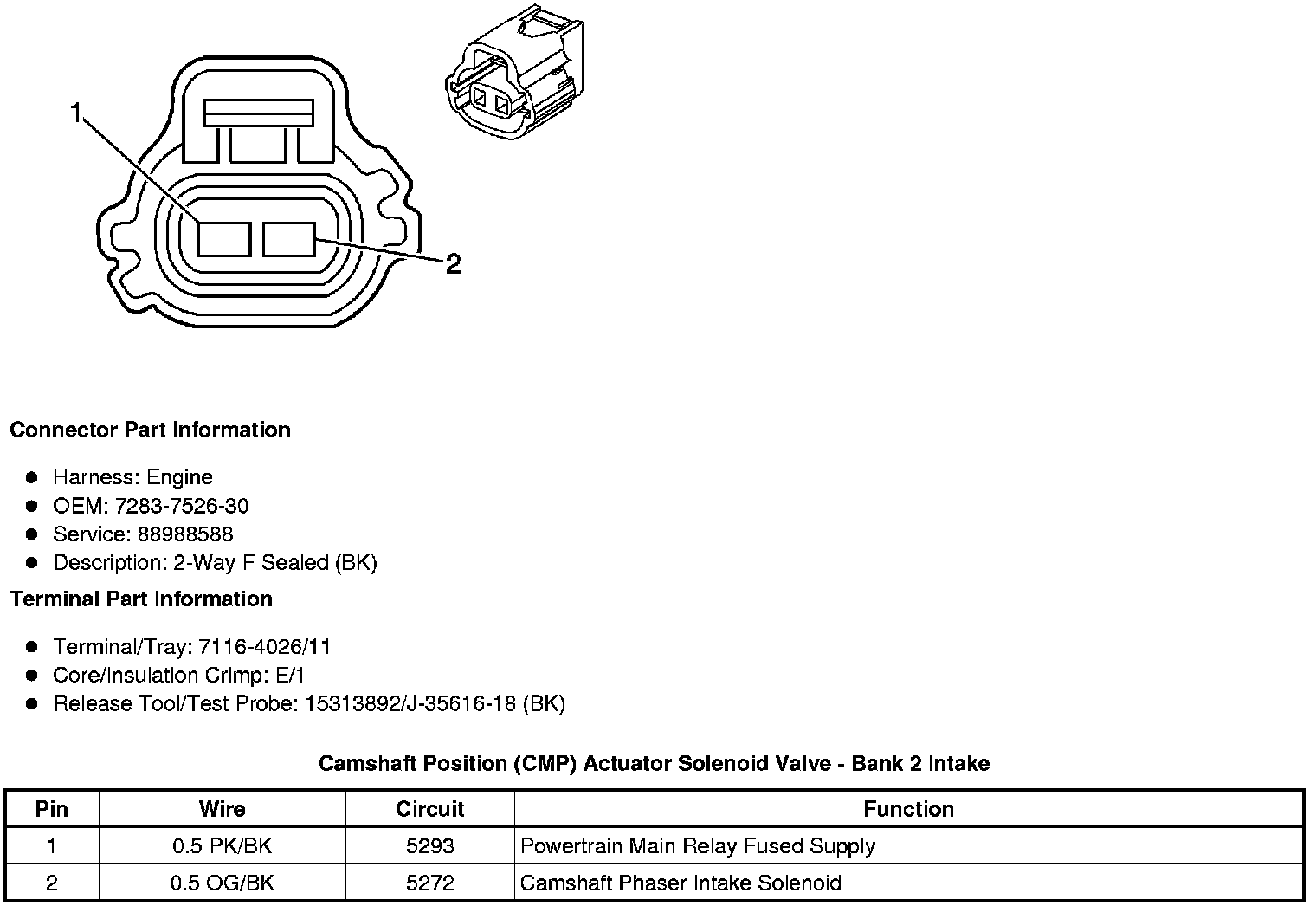

Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake
