Trailer Connector/Provision Schematics
Trailer Connector/Provision Schematics
Trailer Connector/Provision Schematics

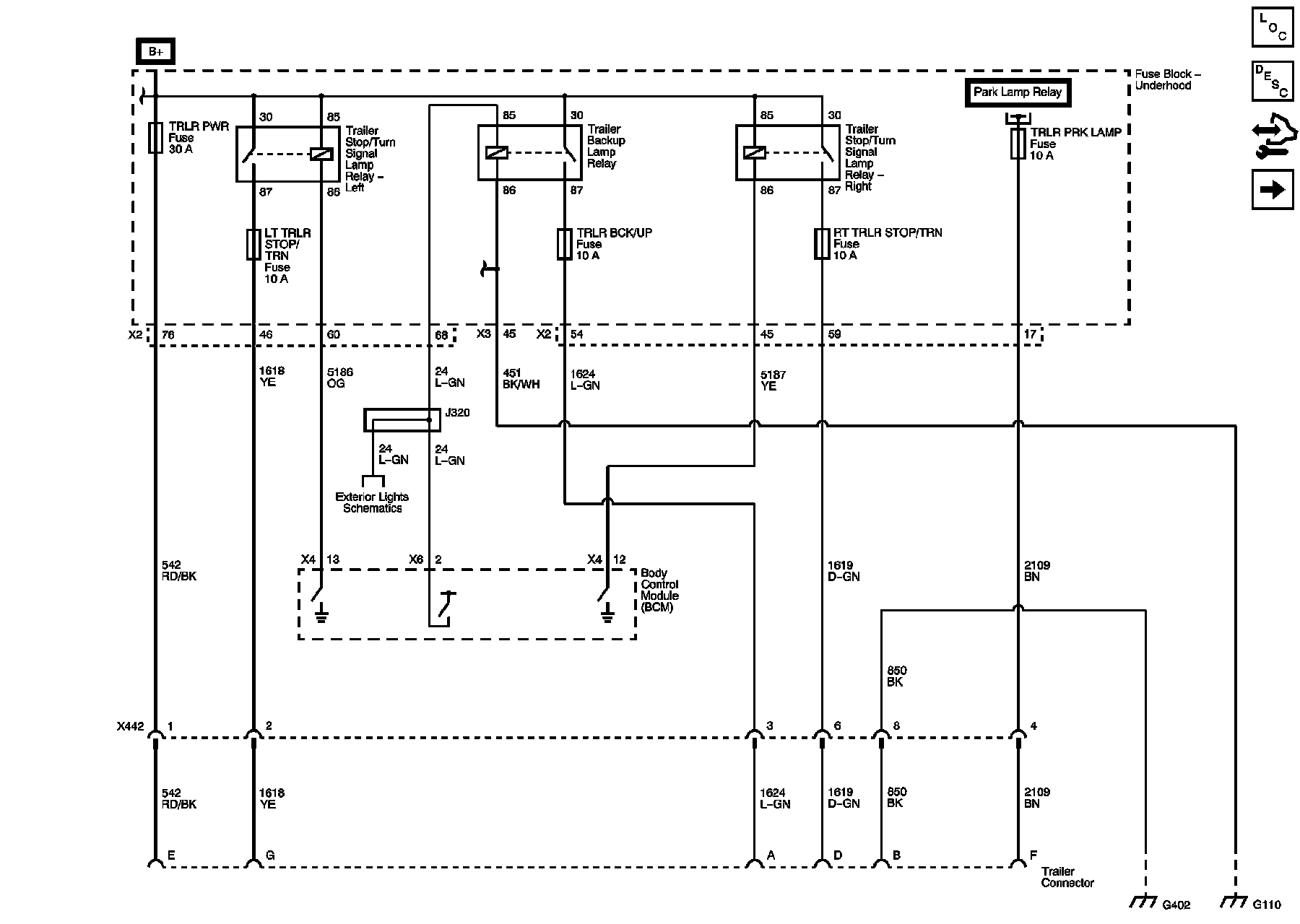

Trailer Connector (V92)

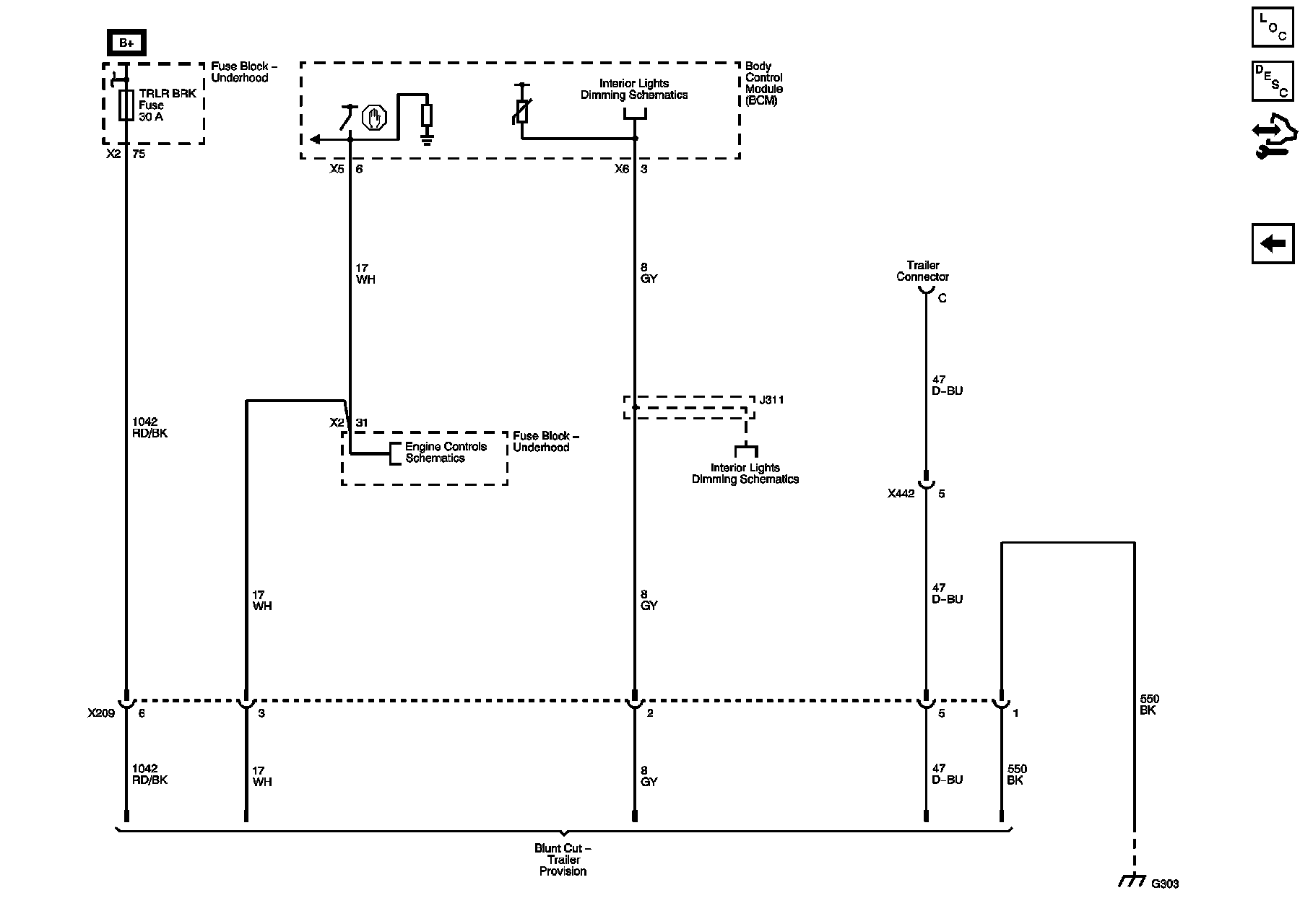

Trailer Brake Provisions (V92)
