System Diagram
>>
Power Distribution Schematics
>>

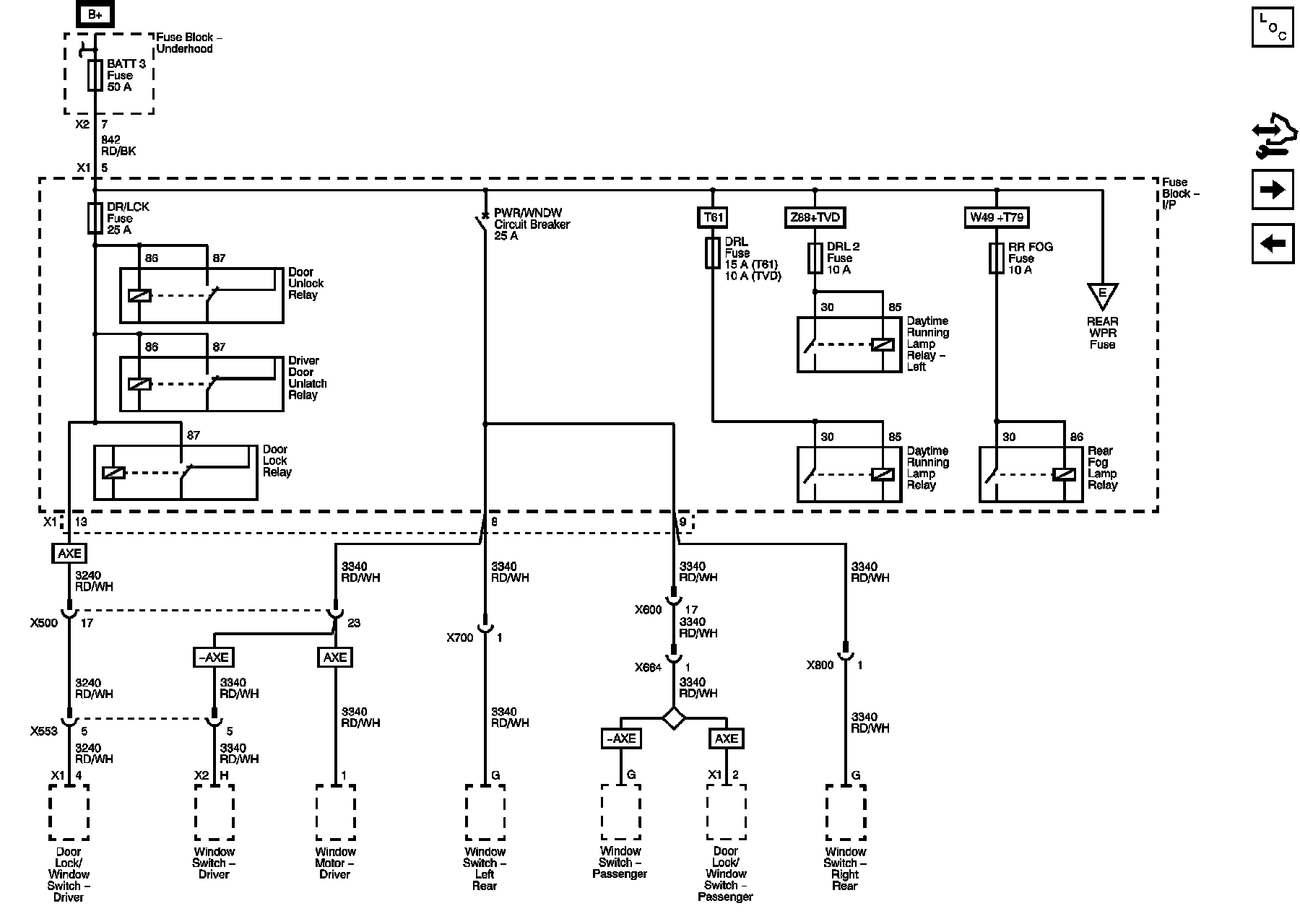

Power Distribution Schematic 6
Power Distribution Schematic 6
Power Distribution Schematics
BATT 3, DRL, DRL 2, DR/LCK, and RR FOG Fuses, PWR/WNDW Circuit Breaker
