Home >> Chevy Truck >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Schematics >> Power Distribution Schematic 4

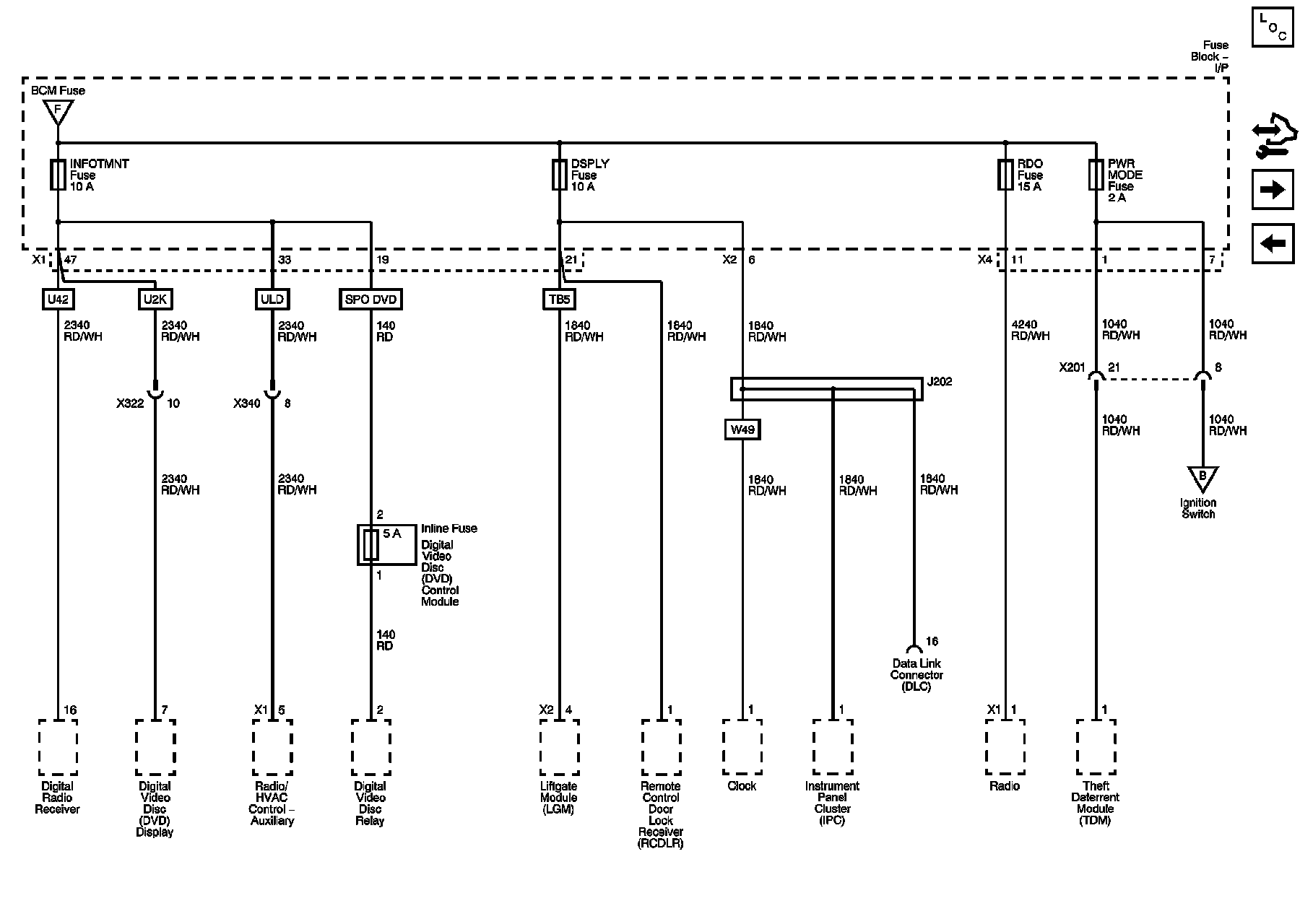

Power Distribution Schematic 4




Power Distribution Schematics

DSPLY, INFOTMNT, POWER MODE, and RDO Fuses
