Control Module HVAC




Component Connector End Views

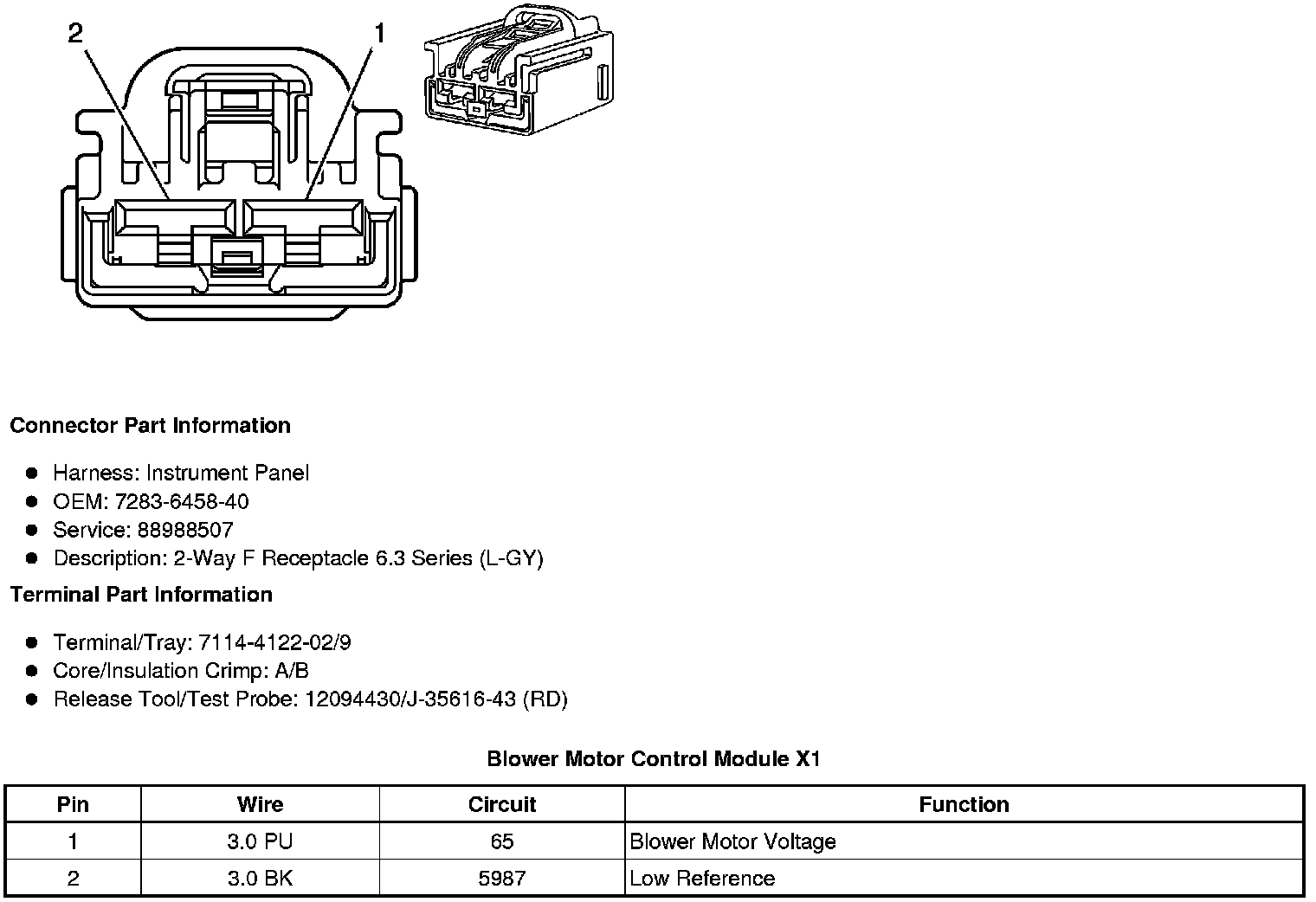

Blower Motor Control Module X1

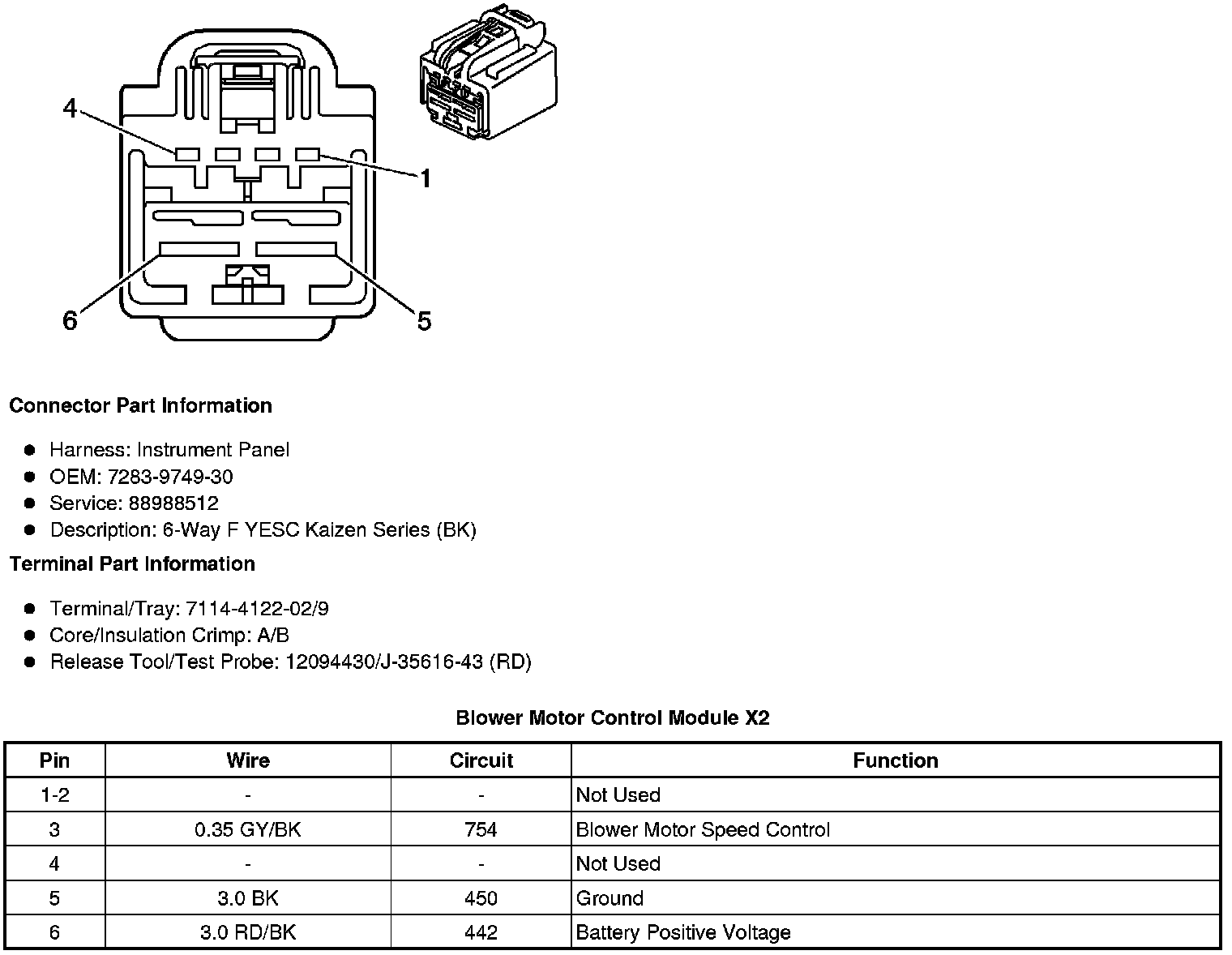

Blower Motor Control Module X2





Blower Motor Control Module - Auxiliary X1





Blower Motor Control Module - Auxiliary X2
