Front Door Opening Weatherstrip Replacement

Front Door Opening Weatherstrip Replacement

Removal Procedure

1. Remove the front door sill plate. Refer to Front Side Door Sill Trim Plate Replacement (Front Side Door Sill Trim Plate Replacement).

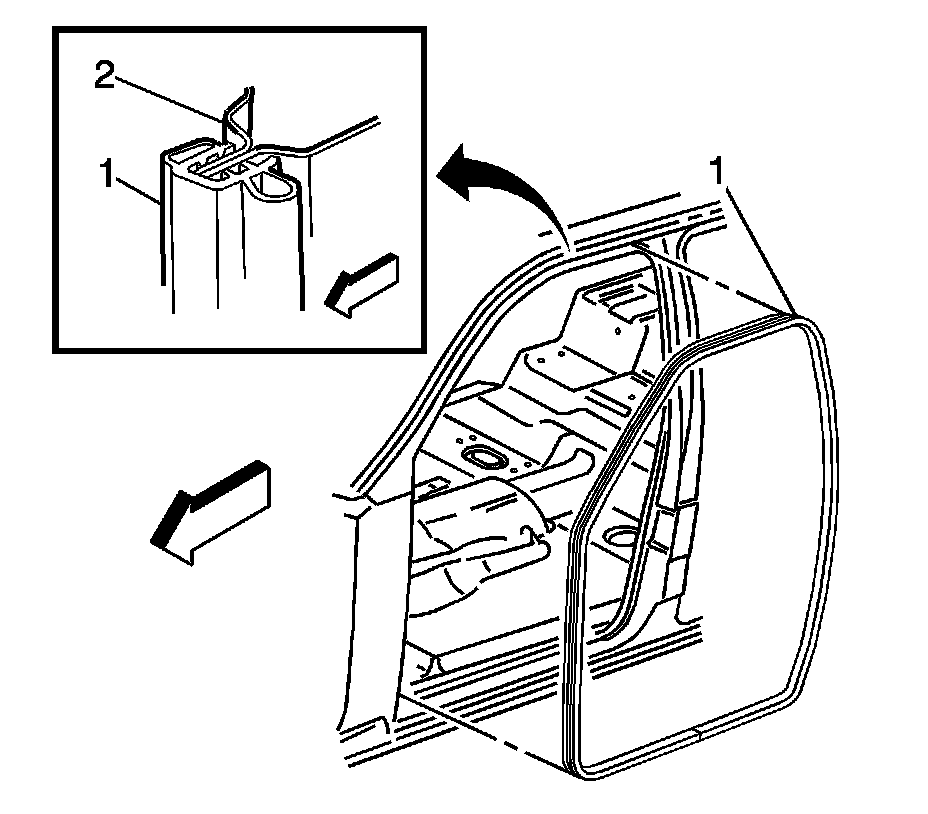

2. Remove the weatherstrip (1) from the pinch-weld flange (2).

Installation Procedure




1. Align the weatherstrip to the door opening with the bond joint positioned at the lower center of the door opening.
2. Install the weatherstrip to the pinch-weld flange. Ensure the weatherstrip is fully seated.
3. Install the front door sill plate. Refer to Front Side Door Sill Trim Plate Replacement (Front Side Door Sill Trim Plate Replacement).
