Home >> Chevy Truck >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Rear Floor Console Stowage Tray Replacement

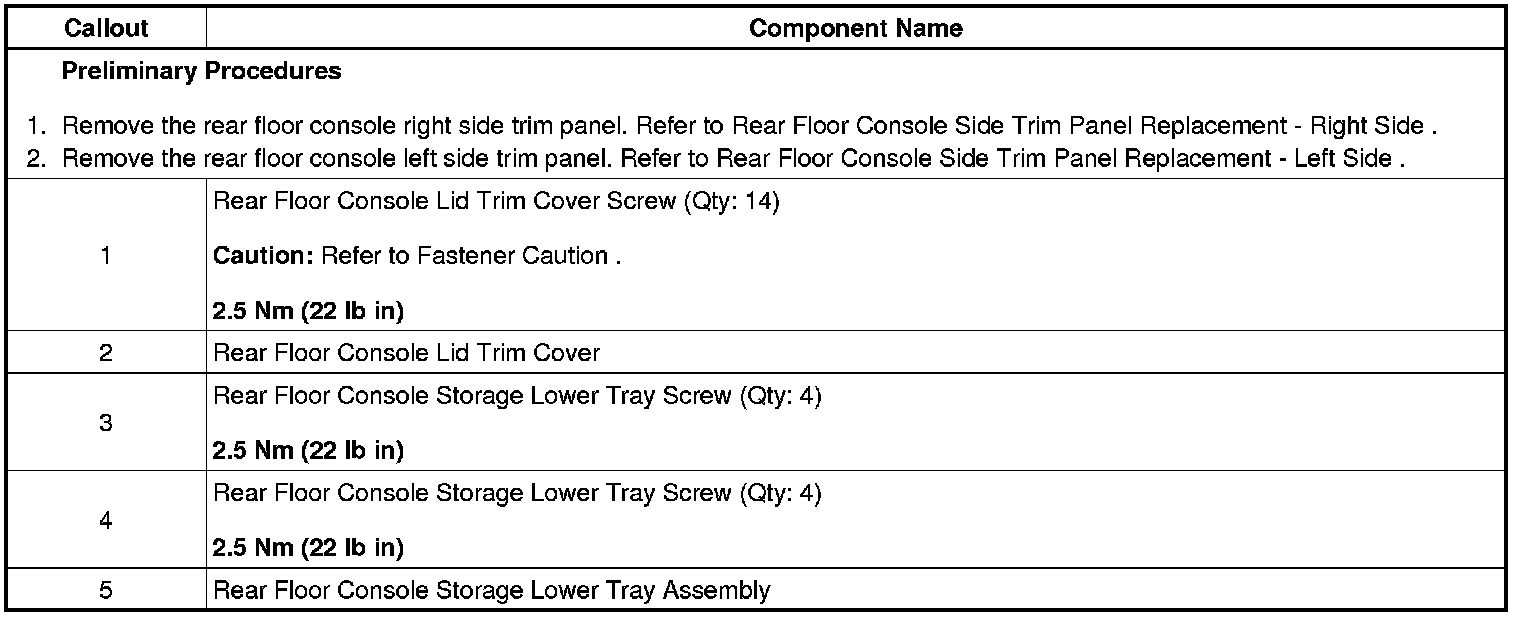

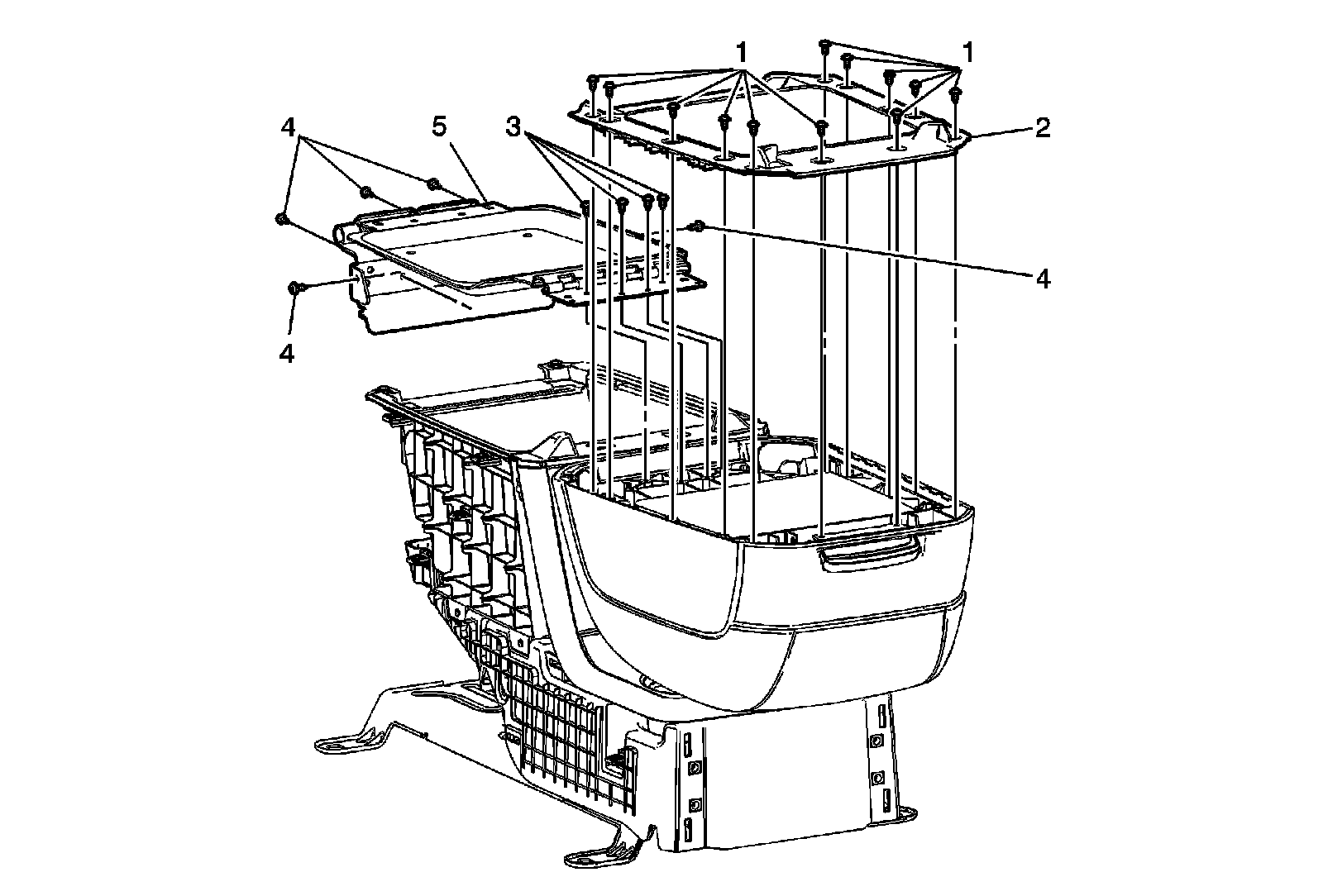

Rear Floor Console Stowage Tray Replacement




Rear Floor Console Stowage Tray Replacement
