FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2011
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>

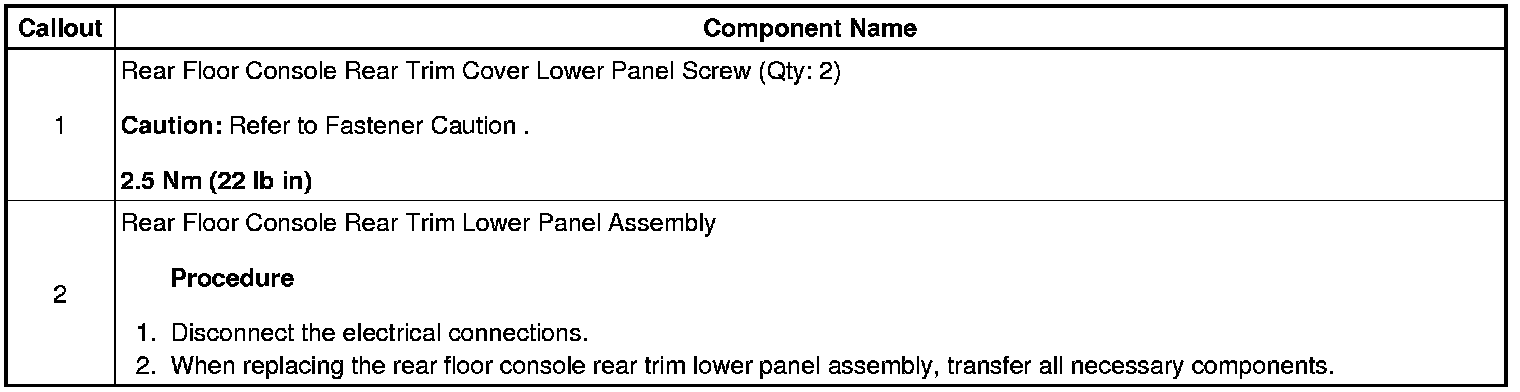

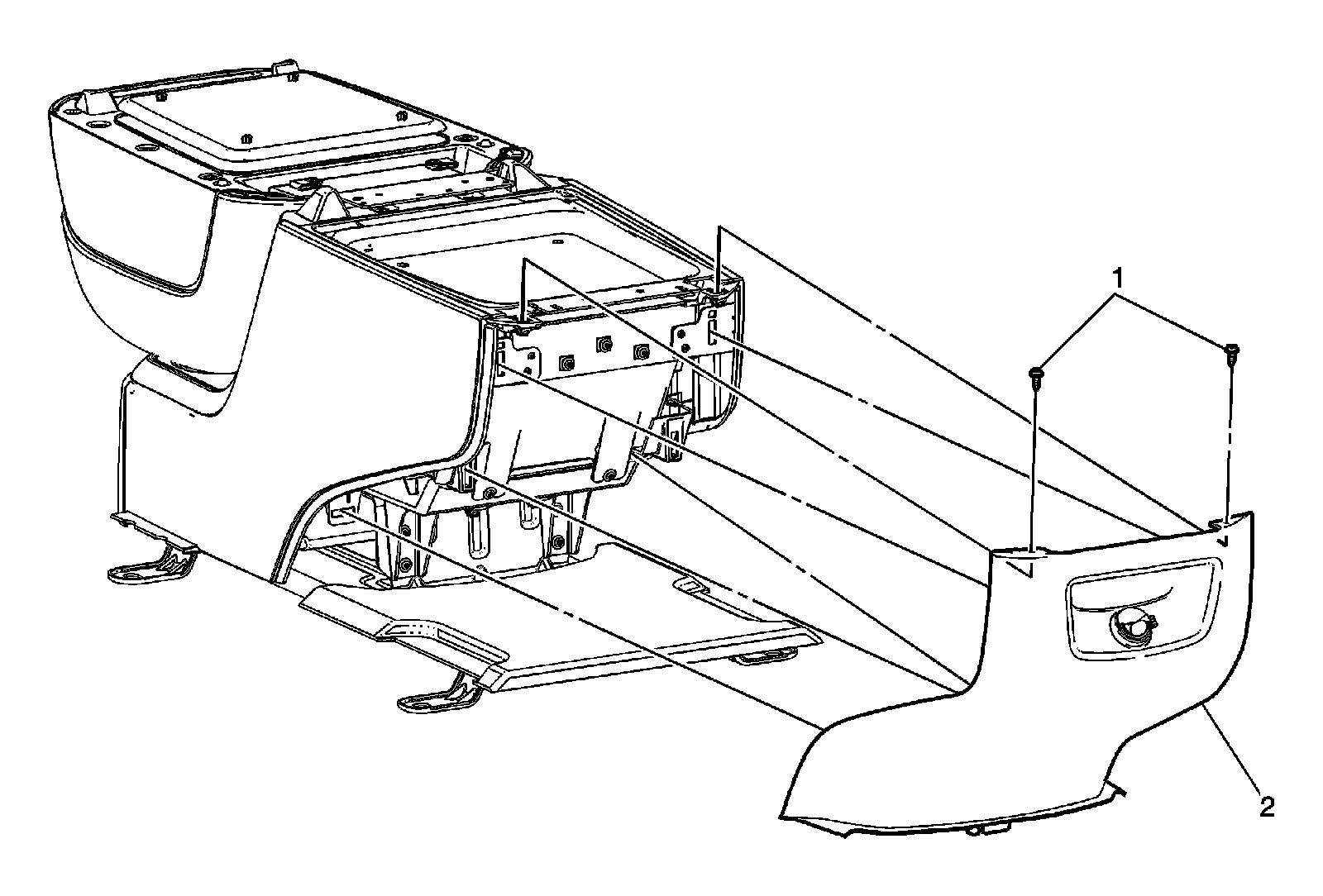

Rear Floor Console Rear Trim Lower Panel Replacement
Rear Floor Console Rear Trim Lower Panel Replacement
Rear Floor Console Rear Trim Lower Panel Replacement
