Home >> Chevy Truck >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Front Floor Rear Console Front Cover Replacement

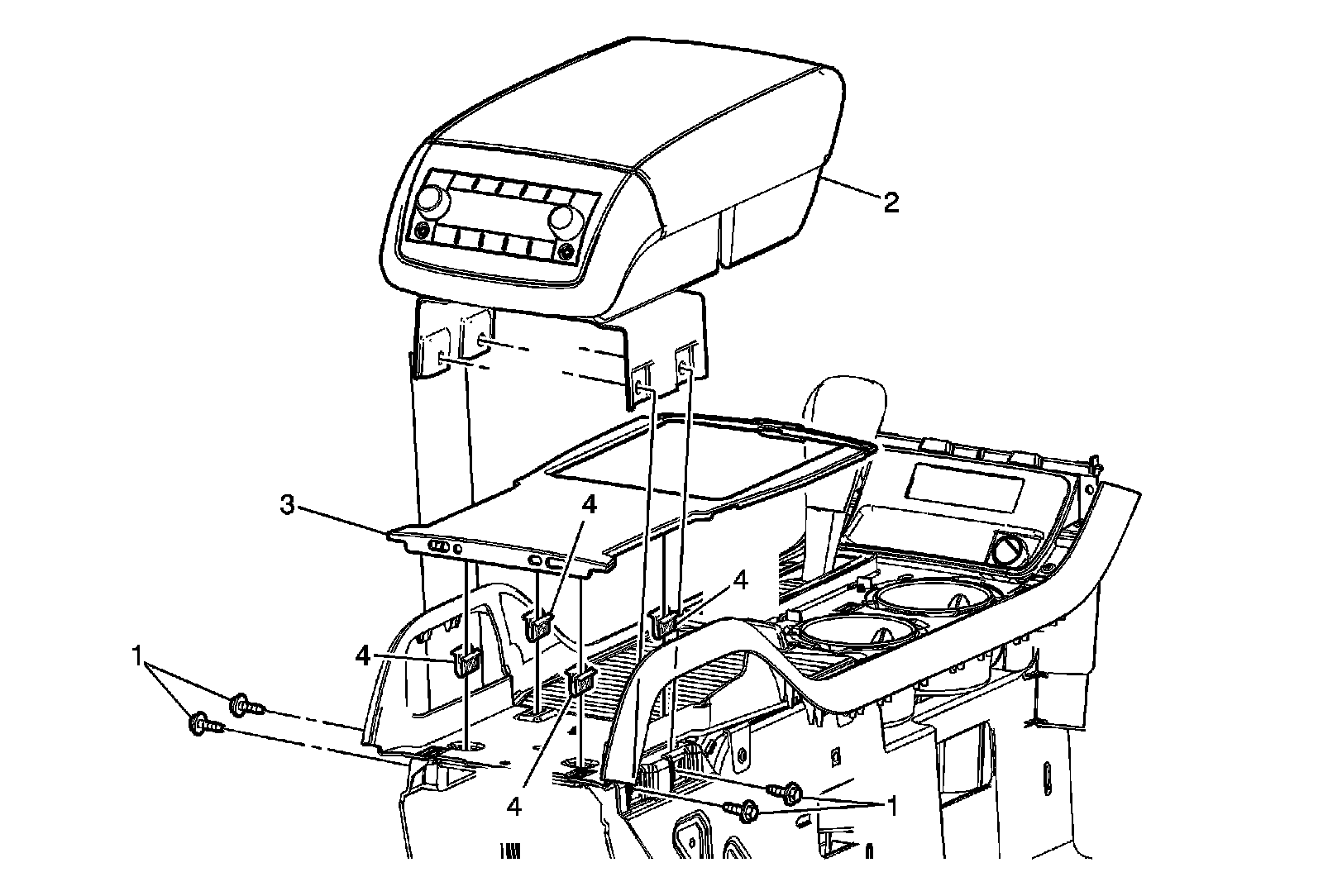

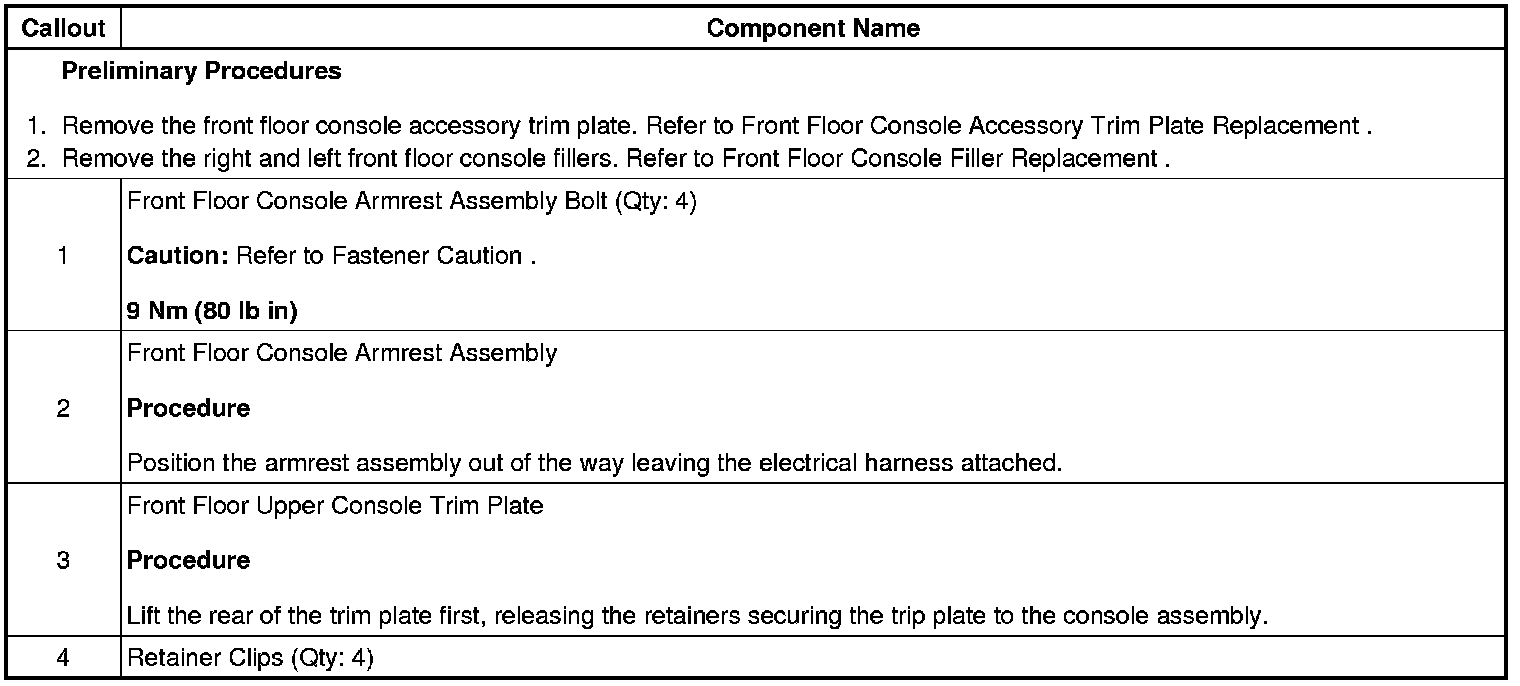

Front Floor Rear Console Front Cover Replacement




Front Floor Rear Console Front Cover Replacement
