P0498




DTC P0449, P0498, or P0499

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions) provides an overview of each diagnostic category.

DTC Descriptors
DTC P0449
- Evaporative Emission (EVAP) Vent Solenoid Control Circuit

DTC P0498
- Evaporative Emission (EVAP) Vent Solenoid Valve Control Circuit Low Voltage

DTC P0499
- Evaporative Emission (EVAP) Vent Solenoid Valve Control Circuit High Voltage

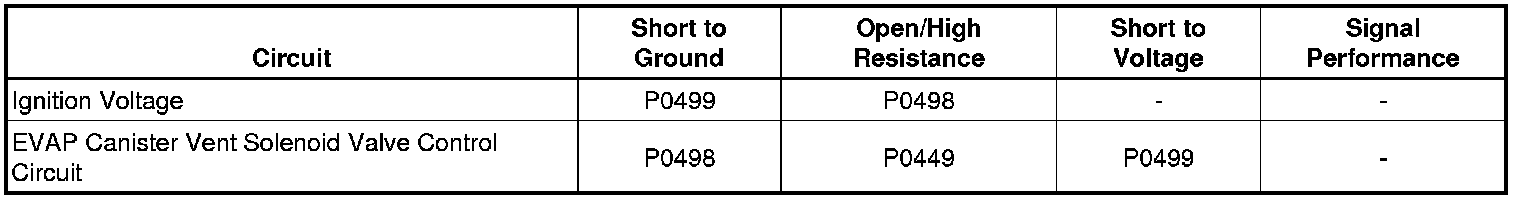

Diagnostic Fault Information





Circuit/System Description

The evaporative emission (EVAP) canister vent valve is used for EVAP system diagnostics. The EVAP canister vent valve is a normally open valve. Battery positive voltage is supplied directly to the EVAP canister vent valve. The engine control module (ECM) controls the solenoid by grounding the control circuit with a solid state device called a driver. The driver is equipped with a feedback circuit that is pulled-up to a voltage. The ECM can determine if the control circuit is open, shorted to ground, or shorted to a voltage by monitoring the feedback voltage. If the ECM detects the control circuit voltage is within a predetermined range when the circuit is commanded OFF, this DTC sets.

Conditions for Running the DTC

* The engine speed is greater than 80 RPM.
* The ignition voltage is between 10-18 volts.
* The ECM has commanded the EVAP canister vent valve ON and OFF at least once during the ignition cycle.
* The DTCs runs continuously once the above conditions are met.

Conditions for Setting the DTC

P0449

The ECM detects the voltage on the EVAP canister vent valve control circuit is between 2.6-4.6 volts when the driver is commanded OFF. The condition exists for less than 4 seconds or for a cumulative of 30 seconds.

P0498

The ECM detects the voltage on the EVAP canister vent valve control circuit is less than 2.6 volts when the driver is commanded OFF. The condition is present for greater than 4 seconds or for a cumulative of 30 seconds.

P0499

The ECM detects the voltage on the EVAP canister vent valve control circuit is greater than 4.6 volts when the driver is commanded ON. The condition is present for greater than 4 seconds or for a cumulative of 30 seconds.

Action Taken When the DTC Sets

* DTC P0449, P0498 and P0499 are Type B DTCs.
* The EVAP system will only purge during open loop.

Conditions for Clearing the DTC

DTC P0449, P0498 and P0499 are Type B DTCs.

Reference Information
Schematic Reference

Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector End Views By Name)
Description and Operation

Evaporative Emission Control System Description (Evaporative Emission Control System Description)
Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing For Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference

Control Module References (Programming and Relearning)for scan tool information

Circuit/System Verification

1. Command the EVAP vent solenoid valve ON and OFF with the scan tool. An audible click should be heard when changing between the commanded states.
2. Start the engine, observe the scan tool EVAP Vent Solenoid Valve Circuit Test Status parameters. The circuit test status parameters should display OK or Not Run.
3. Engine idling, observe the DTC information with a scan tool. DTC P0449, P0498, or P0499 should not set.
4. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

Circuit/System Testing

1. Ignition OFF, disconnect the pass thru multi-way harness connector X305, located on the underbody beneath the left front door.

Note:
* If any FTP sensor DTC sets, P0450, P0451 or P0452, this output test will not work.
* It will be necessary to jumper circuit numbers 2709-5V Ref, 2759-Low Ref and 890-FTP Signal for the FTP sensor in order to perform these tests. You must use J-35616-4A and J-35616-5 test probes or equivalent Metri-Pack terminals for this.

2. Ignition ON, verify that a test lamp illuminates between the B+ circuit terminal G and ground.

If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the B+ circuit fuse is open, test all components connected to the B+ circuit and replace as necessary.

3. Connect a DMM, set on the diode setting, between the control circuit terminal F and ground.
4. The DMM reading should display O.L. Command the vent solenoid OFF with a scan tool. The display should go to 0.343-0.357 with terminal F connected. It will go to 0.010-0.008 with terminal F backed out.

If less than the specified value test the control circuit for a short to voltage or short to ground. If the circuits test normal, replace the engine control module.

5. Remove the fuel tank. Refer to Fuel Tank Replacement (Removal and Replacement).
6. Disconnect the EVAP vent solenoid valve harness connector.
7. Inspect the EVAP vent solenoid valve circuits in the fuel tank harness, between the EVAP vent solenoid valve connector and X305 for the following conditions, and repair as necessary:

* Damaged wiring or terminals
* Open circuits
* Short to ground
* Wire to wire short

8. If all circuits/connections test normal, test or replace the EVAP vent solenoid valve.

Component Testing

1. Test for 20-24 ohm between the terminals of the EVAP vent solenoid valve.

If not within the specified range, replace the EVAP vent solenoid valve.

2. Measure the resistance between each terminal of the EVAP vent solenoid valve and the EVAP vent solenoid valve housing. The DMM should display OL.

If less than the specified value, replace the EVAP vent solenoid valve.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Evaporative Emission Canister Vent Solenoid Valve Replacement (Service and Repair)
* Control Module References (Programming and Relearning)for ECM replacement, setup, and programming
