P0341

DTC P0341

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle (Diagnostic System Check - Vehicle) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Strategy Based Diagnosis) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Diagnostic Procedure Instructions)provide an overview of each diagnostic category.

DTC Descriptor
DTC P0341
- Camshaft Position Sensor Performance

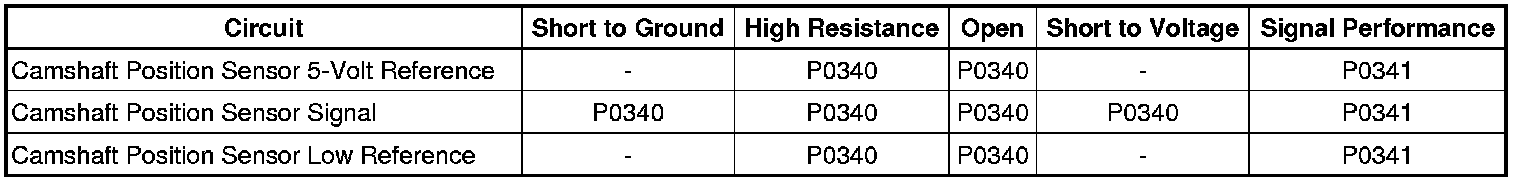

Diagnostic Fault Information





Circuit/System Description

The hall effect camshaft position sensor produces 3 ON/OFF pulses for each revolution of the camshaft. The camshaft position sensor output is pulse width encoded. The engine control module (ECM) uses the camshaft position sensor and crankshaft position output pulses to determine the engine speed and position. The camshaft position sensor is connected directly to the ECM.

Conditions for Running the DTC

* The ignition is ON.
* The engine is turning faster than 50 RPM.
* DTC P0341 runs continuously when the above conditions are met.

Conditions for Setting the DTC

The ECM determines that the camshaft position sensor signal is out of range.

Action Taken When the DTC Sets

DTC P0341 is a Type A DTC.

Conditions for Clearing the MIL/DTC

DTC P0341 is a Type A DTC.

Diagnostic Aids

If the camshaft position sensor signal is lost while running, the engine will operate normally.

Reference Information
Schematic Reference

Engine Controls Schematics ([1][2]Electrical Diagrams)
Connector End View Reference

Component Connector End Views (Connector End Views By Name)
Electrical Information Reference

* Circuit Testing (Circuit Testing)
* Connector Repairs (Connector Repairs)
* Testing for Intermittent Conditions and Poor Connections (Testing for Intermittent Conditions and Poor Connections)
* Wiring Repairs (Wiring Repairs)

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (Powertrain Diagnostic Trouble Code (DTC) Type Definitions)
Scan Tool Reference

Control Module References (Programming and Relearning)for scan tool information

Circuit/System Verification

1. Engine running, observe the DTC information with a scan tool. DTC P0341 should not set.
2. Engine idling, observe the scan tool Camshaft Position Active Counter parameters. The parameter should be incrementing.
3. Operate the vehicle within the Conditions for Running the DTC to verify the DTC does not reset. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

Circuit/System Testing

1. Engine idling, move the related harnesses/connectors of the B23 camshaft position sensor while monitoring the scan tool Camshaft Position Variance parameter. The Camshaft Position Variance parameter should not change when moving the harness/connectors.

• If the above condition exists, repair the harness/connectors as necessary.

2. Ignition OFF, inspect the B23 camshaft position sensor for correct installation.

• If the B23 camshaft position sensor is loose, inspect the sensor and the O-ring for damage, and replace as necessary.

3. Disconnect the harness connector at the B23 camshaft position sensor.
4. Ignition OFF, all vehicle systems OFF, this may take 2 minutes, test for less than 5 ohm between the low reference circuit terminal 2 and ground.

• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the K20 ECM.

5. Ignition ON, test for 4.8-5.2 V between the 5 V reference circuit terminal 3 and ground.

• If less than the specified range, test the 5 V reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K20 ECM.

• If greater than the specified range, test the 5 V reference circuit for a short to voltage. If the circuit tests normal, replace the K20 ECM.

6. Test for 4.8-5.2 V between the signal circuit terminal 1 and ground.

• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the K20 ECM.

• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the K20 ECM.

7. Ignition OFF, connect a 3 A fused jumper wire to the camshaft position signal circuit terminal 1.
8. Ignition ON, momentarily touch the end of the fused jumper wire to ground while monitoring the scan tool camshaft position active counter. The camshaft position active counter should increment.

• If the camshaft position active counter does not increment, replace the K20 ECM.

9. If all circuits test normal, replace the B23 camshaft position sensor.

Repair Instructions

Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.

* Camshaft Position Sensor Replacement (Service and Repair)
* Control Module References (Programming and Relearning)for ECM replacement, setup, and programming
