Home >> Chevy Truck >> 2011 >> Express 3500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6L45/6L50/6L80/6L90 - Automatic Transmission >> 8. Center Support, Output Carrier and Output Shaft Installation

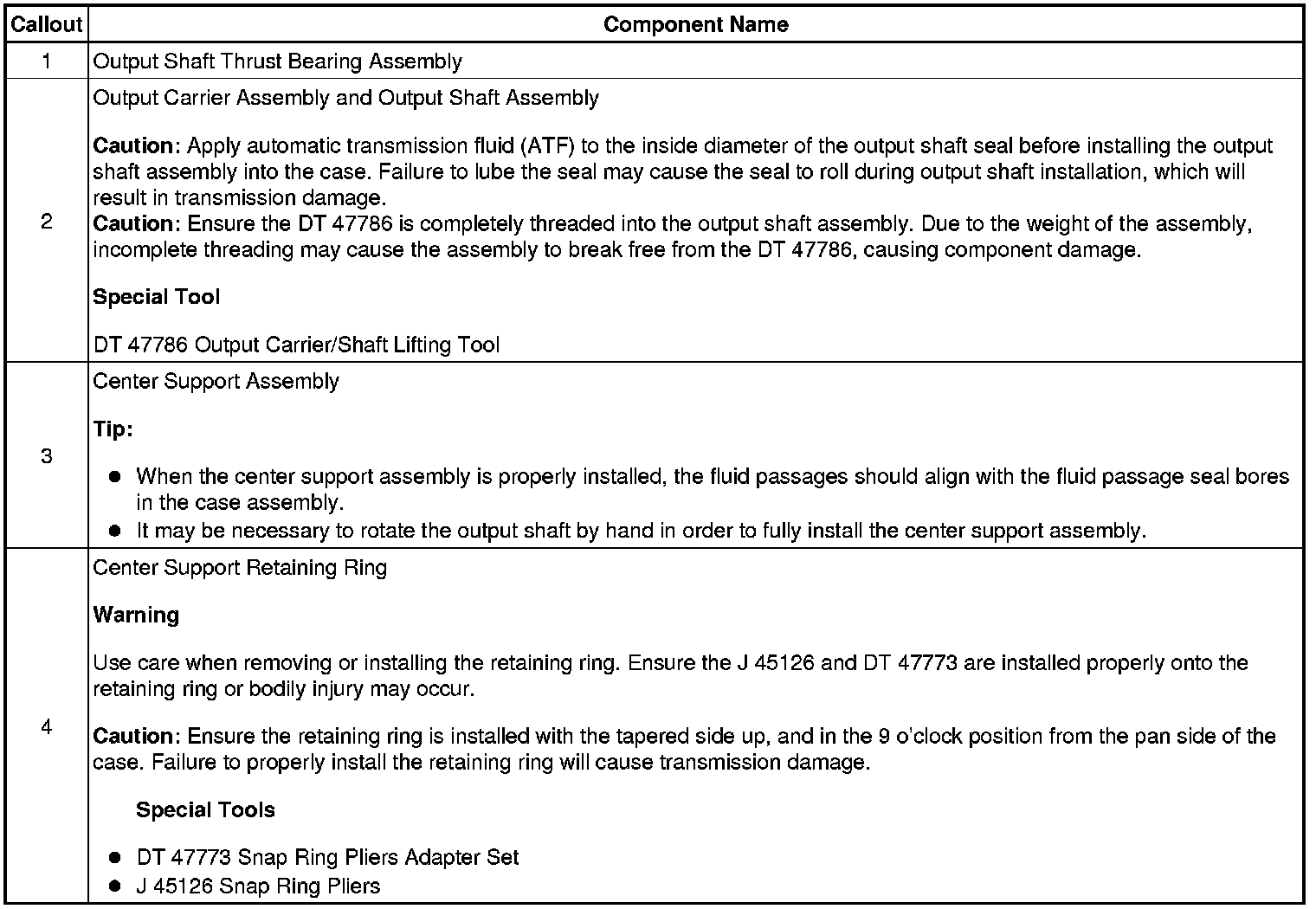

8. Center Support, Output Carrier and Output Shaft Installation




Center Support, Output Carrier and Output Shaft Installation
